Pinpoint Test 1: The Climate Control Panel Illumination Is Inoperative

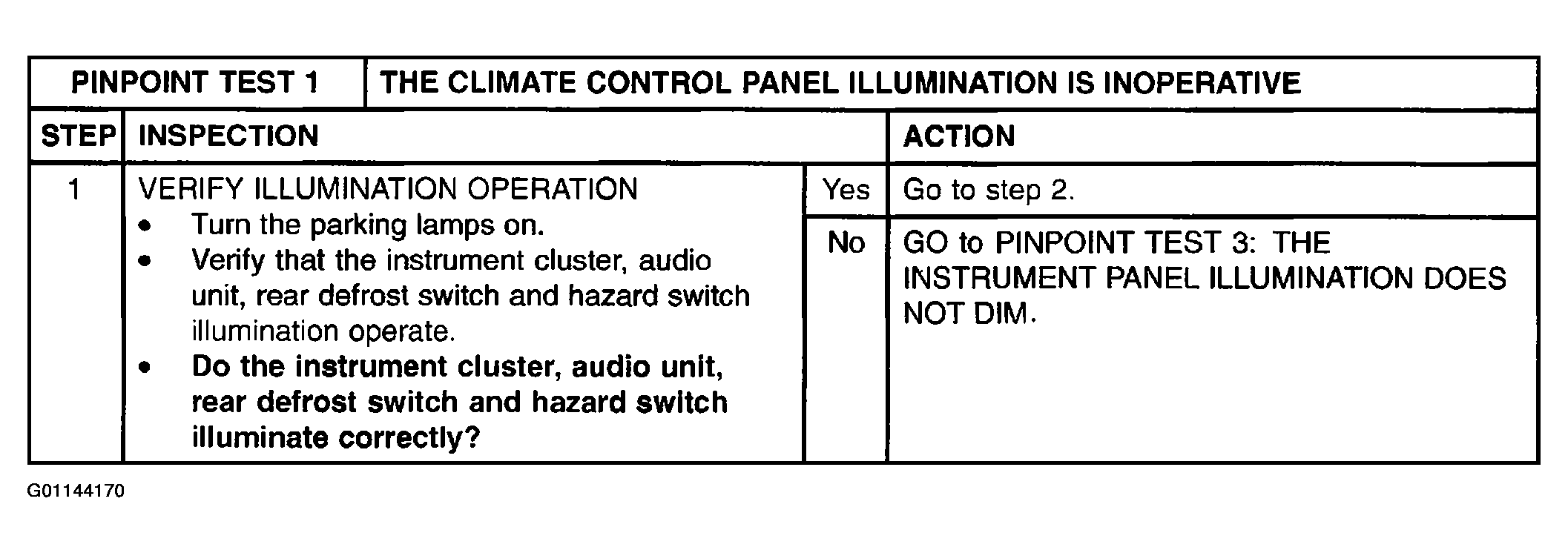

Fig 1: Pinpoint Test 1: The Climate Control Panel Illumination Is Inoperative (Step 1)
G01144170Courtesy of MAZDA MOTORS CORP.

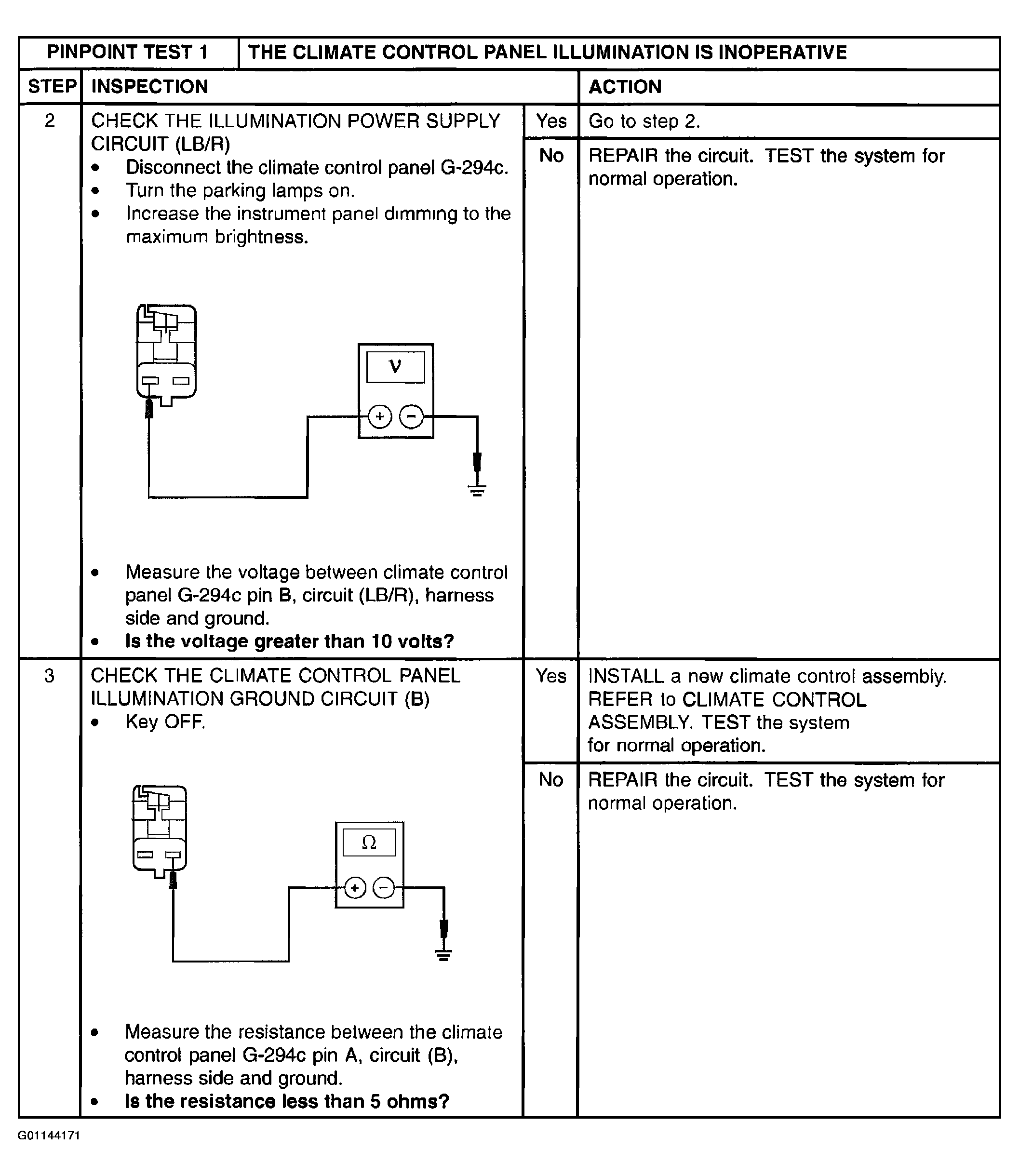

Fig 2: Pinpoint Test 1: The Climate Control Panel Illumination Is Inoperative (Steps 2-3)
G01144171Courtesy of MAZDA MOTORS CORP.
