Pinpoint Test 2: The Key-In-Ignition Chime Is Inoperative/Does Not Operate Correctly

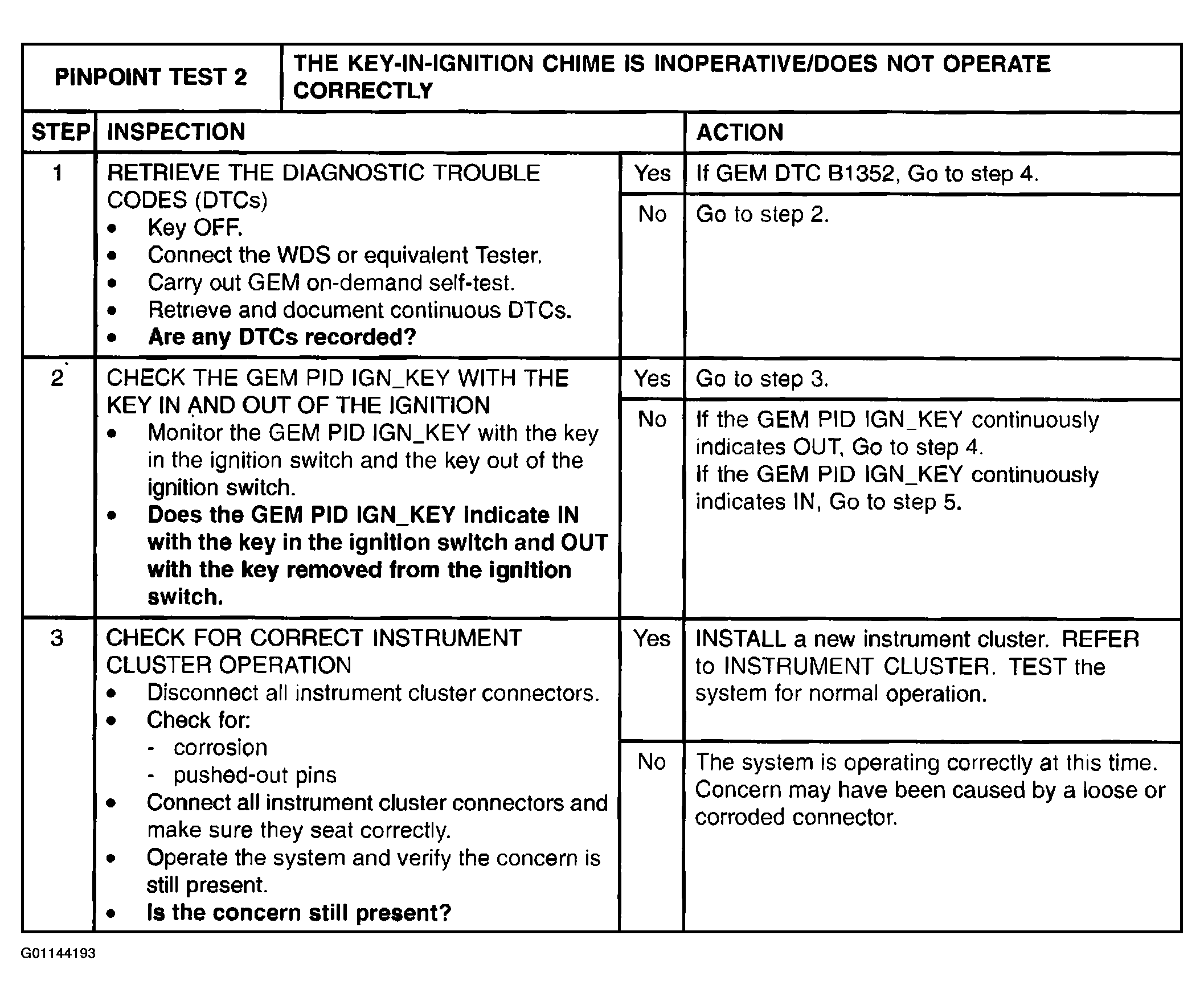

Fig 1: Pinpoint Test 2: The Key-In-Ignition Chime Is Inoperative/Does Not Operate Correctly (Steps 1-3)
G01144193Courtesy of MAZDA MOTORS CORP.

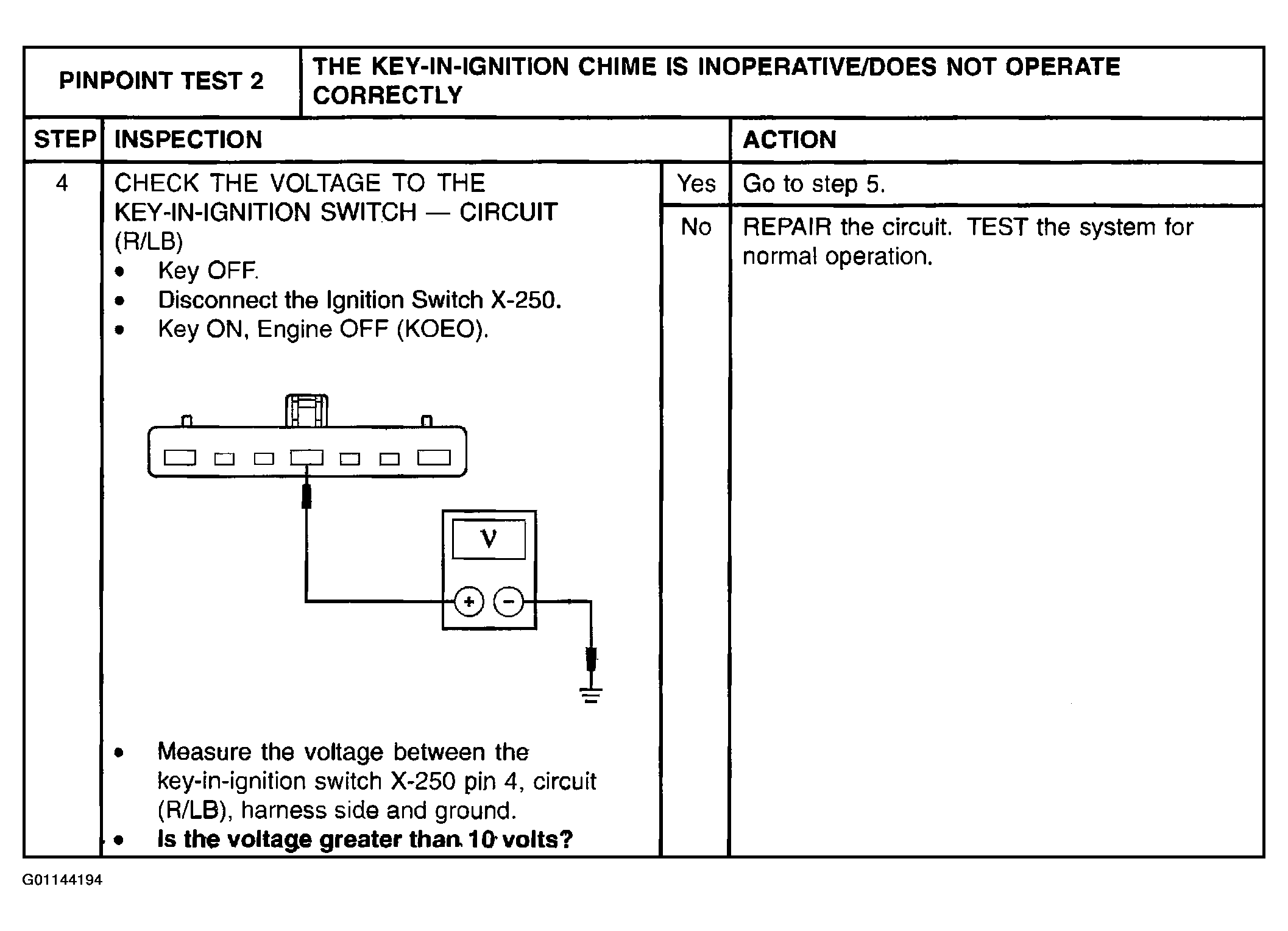

Fig 2: Pinpoint Test 2: The Key-In-Ignition Chime Is Inoperative/Does Not Operate Correctly (Step 4)
G01144194Courtesy of MAZDA MOTORS CORP.

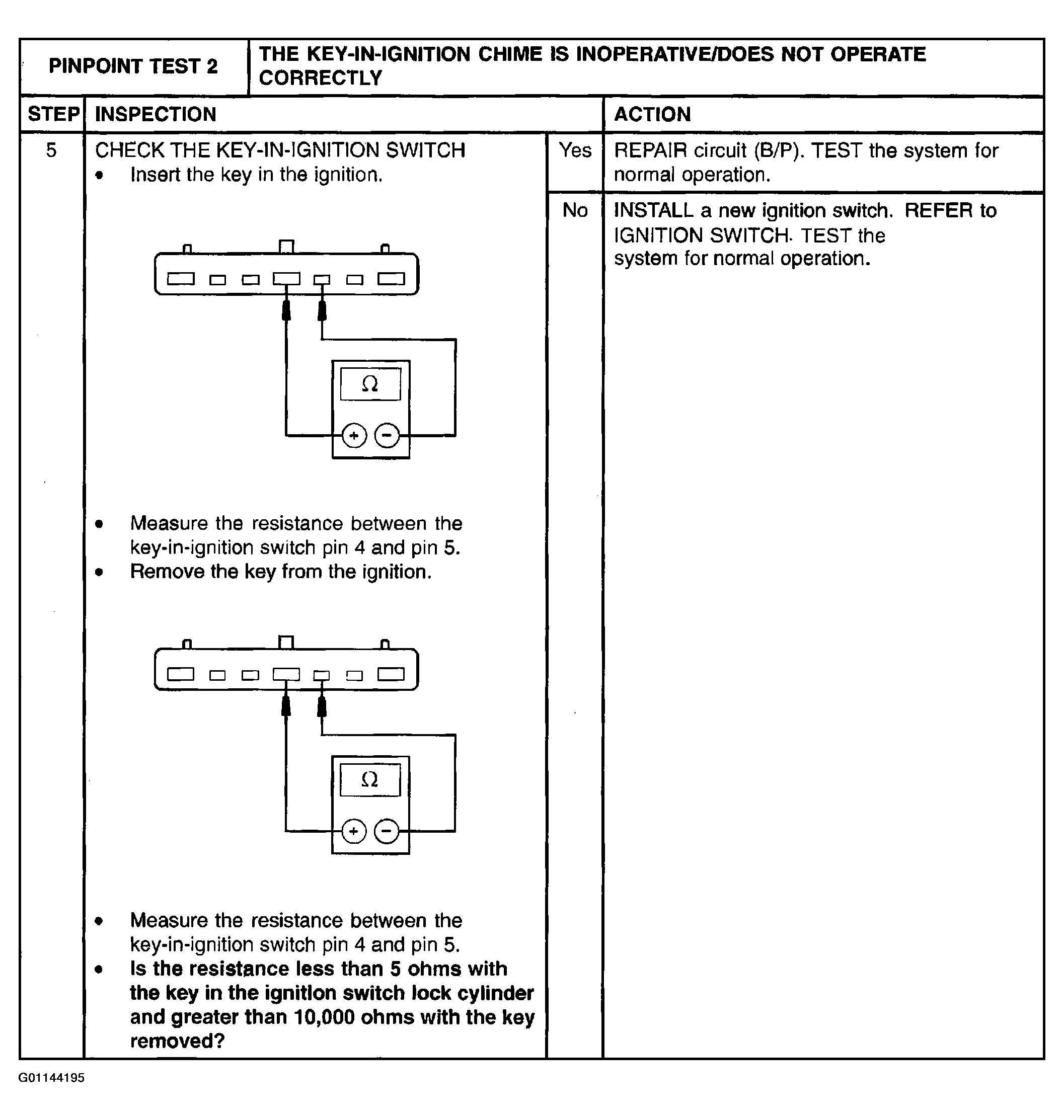

Fig 3: Pinpoint Test 2: The Key-In-Ignition Chime Is Inoperative/Does Not Operate Correctly (Step 5)
G01144195Courtesy of MAZDA MOTORS CORP.
