Pinpoint Test 1: The Safety Belt Warning Chime Is Inoperative/Does Not Operate Correctly

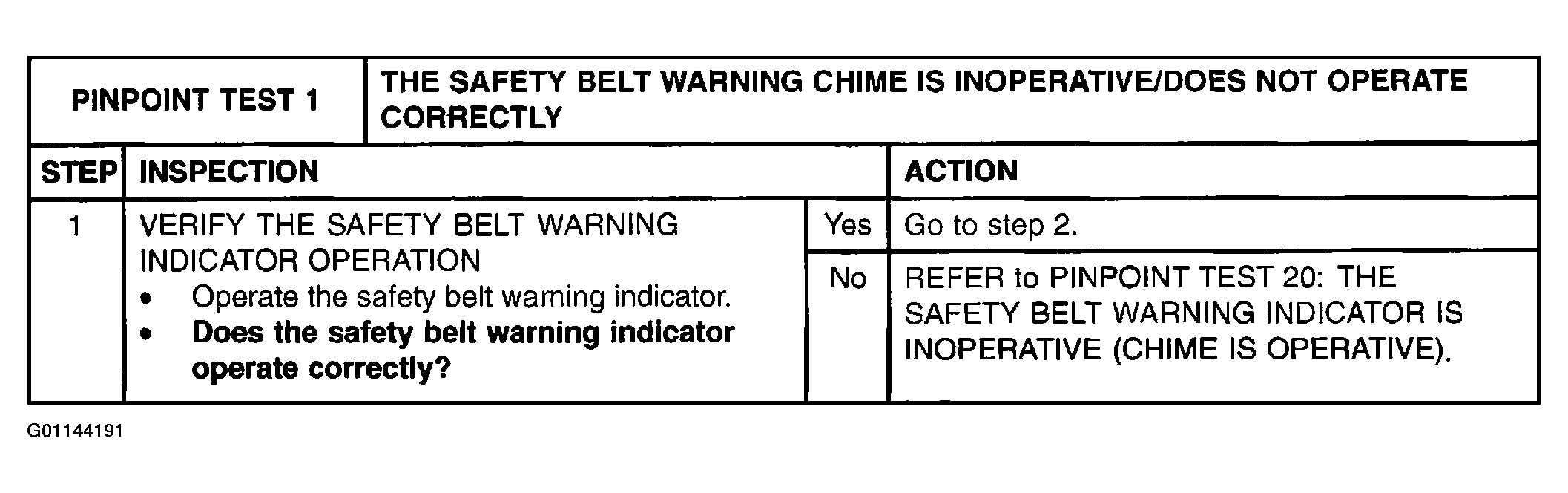

Fig 1: Pinpoint Test 1: The Safety Belt Warning Chime Is Inoperative/Does Not Operate Correctly (Step 1)
G01144191Courtesy of MAZDA MOTORS CORP.

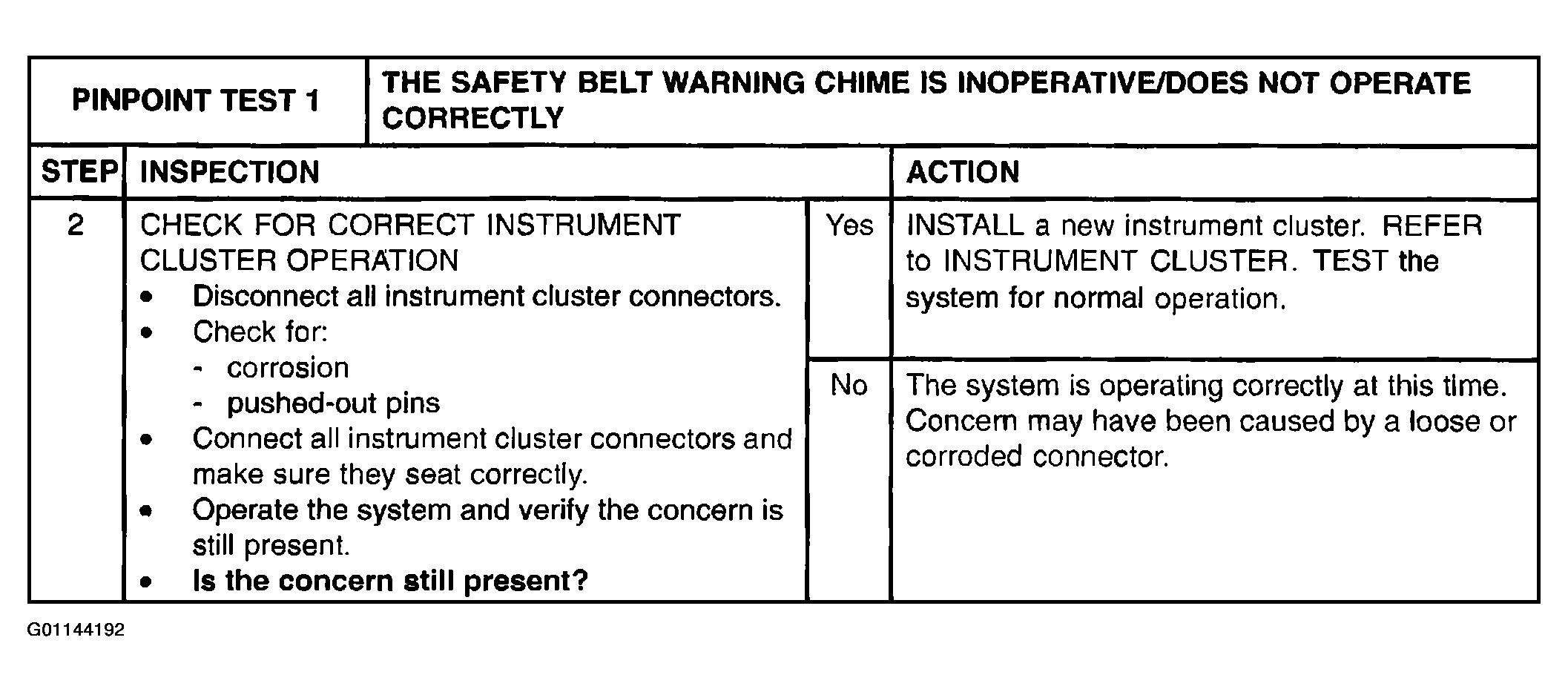

Fig 2: Pinpoint Test 1: The Safety Belt Warning Chime Is Inoperative/Does Not Operate Correctly (Step 2)
G01144192Courtesy of MAZDA MOTORS CORP.
