Removal and Installation

  1. Remove the instrument panel center finish panel. For additional information refer to INSTRUMENT CLUSTER FINISH PANEL  .

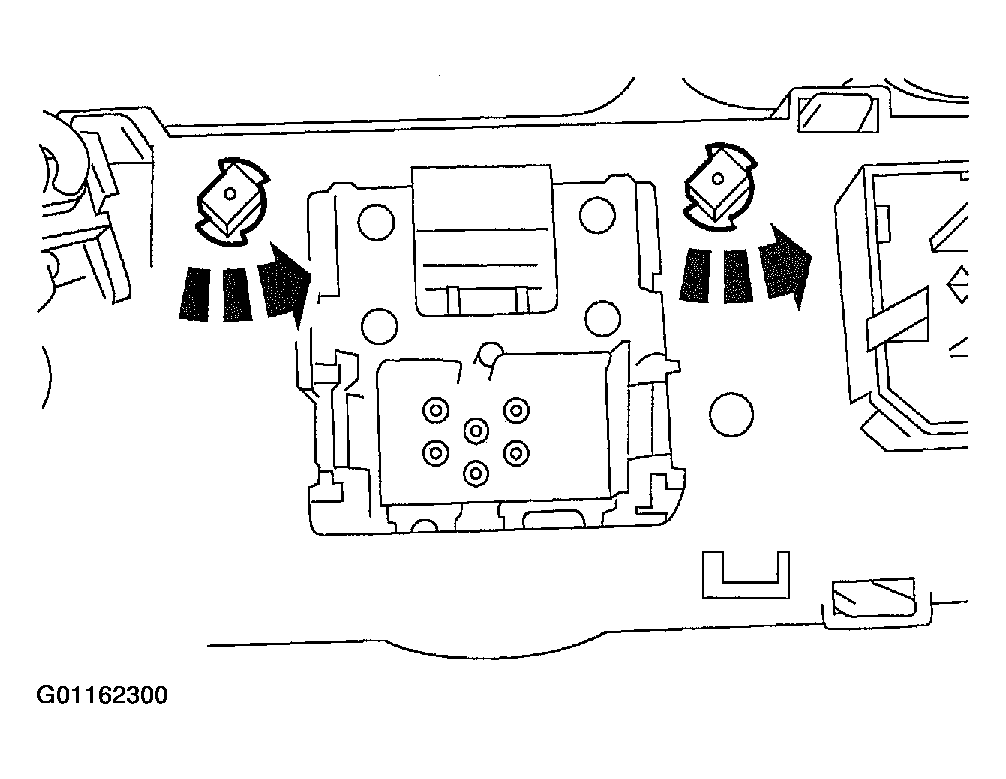

    Fig 1: Removing Illumination Bulb
    G01162300Courtesy of MAZDA MOTORS CORP.
  2. Remove the illumination bulb(s) by turning a quarter turn counterclockwise and lifting straight up.
  3. To install, reverse the removal procedure.
