HALFSHAFT (Rear): Removal

Remove the rear coil spring. See REAR COIL SPRING .
Remove and discard the halfshaft nut. See Fig 1 .
CAUTION: Make sure to support the wheel knuckle.
Remove the nut and separate the lower ball joints. See Fig 2 .
Using the Hub Remover (205-D070), separate the halfshaft from the knuckle. See Fig 3 .
Remove the halfshaft from the differential. See Fig 4 .

Fig 1: Locating Rear Axle Shaft Wheel Hub Nut

Courtesy of FORD MOTOR CO.

Fig 2: Locating Rear Suspension Lower Ball Joint Nut

Courtesy of FORD MOTOR CO.

Fig 3: Removing Rear Axle Shaft From Wheel Hub

Courtesy of FORD MOTOR CO.

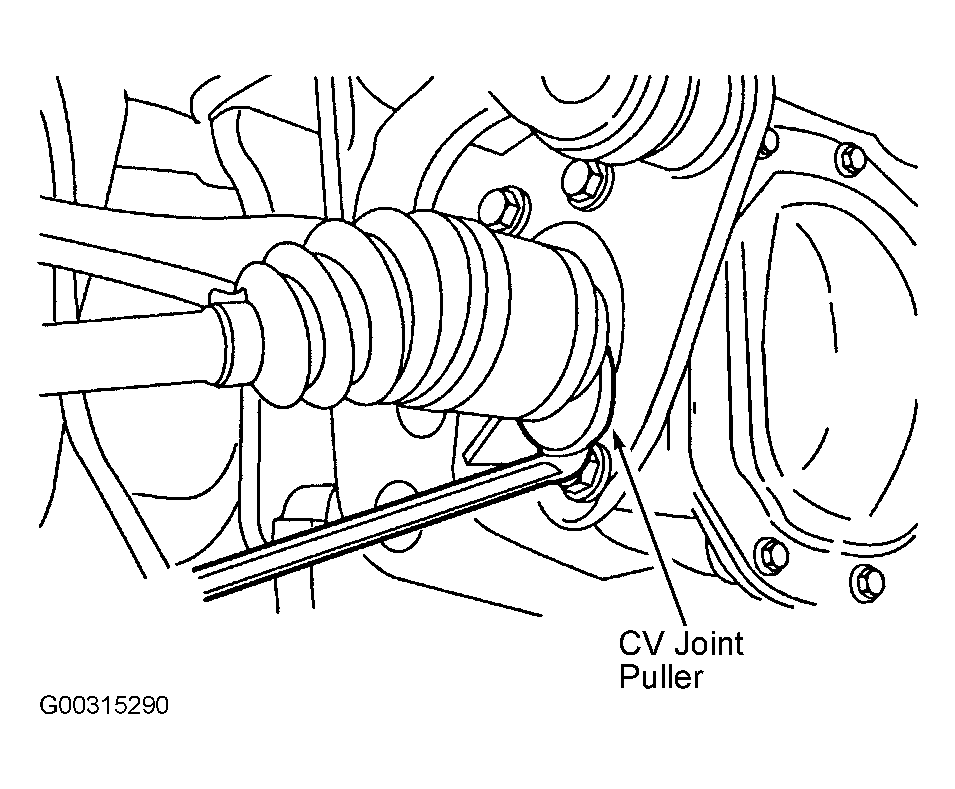

Fig 4: Removing Rear Axle Shaft From Differential

Courtesy of FORD MOTOR CO.
