Removal & Installation

  1. Remove the parking brake control. See PARKING BRAKE CONTROL  .
  2. Remove the screws and the parking brake warning indicator switch. See Fig 1 .
  3. To install, reverse the removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .

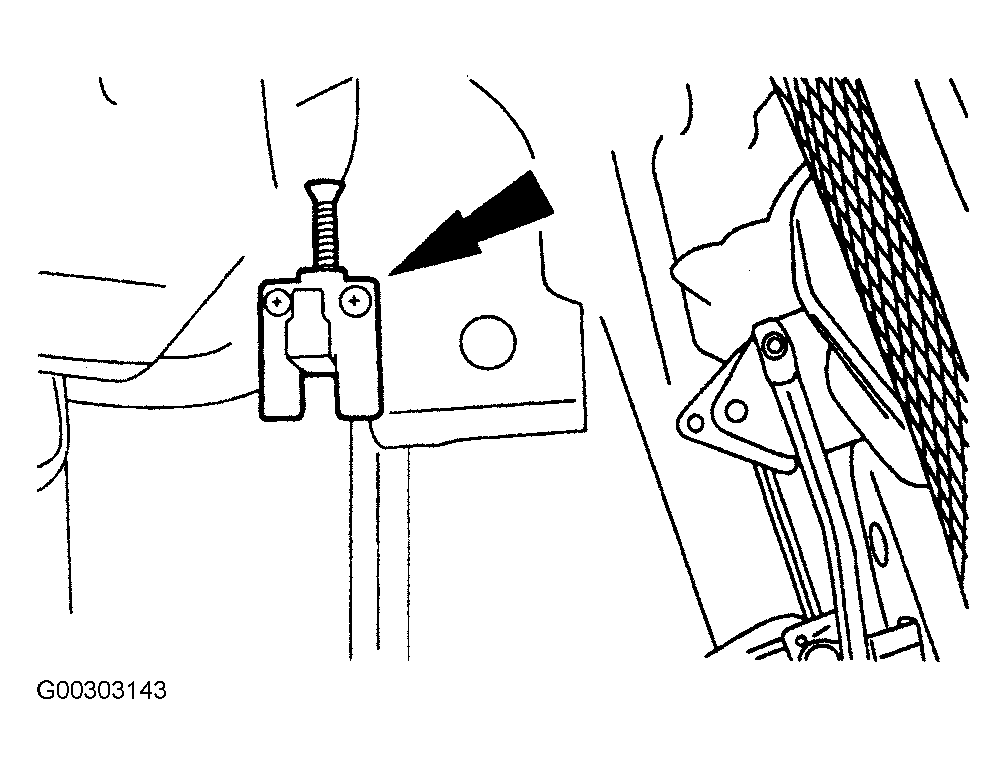

Fig 1: Removing Parking Brake Warning Indicator Switch
G00303143Courtesy of MAZDA MOTORS CORP.
