Removal and Installation

  1. Remove the headliner. See HEADLINER in INTERIOR TRIM article.

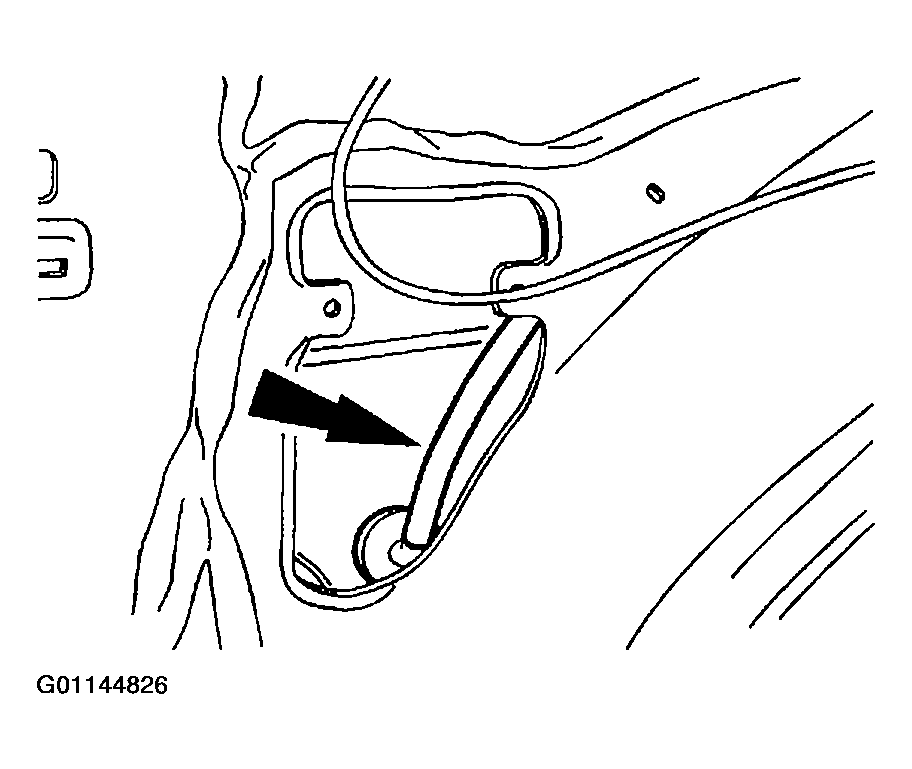

    Fig 1: Disconnecting Roof Opening Panel Rear Drain Hose
    G01144826Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the roof opening panel rear drain hose.

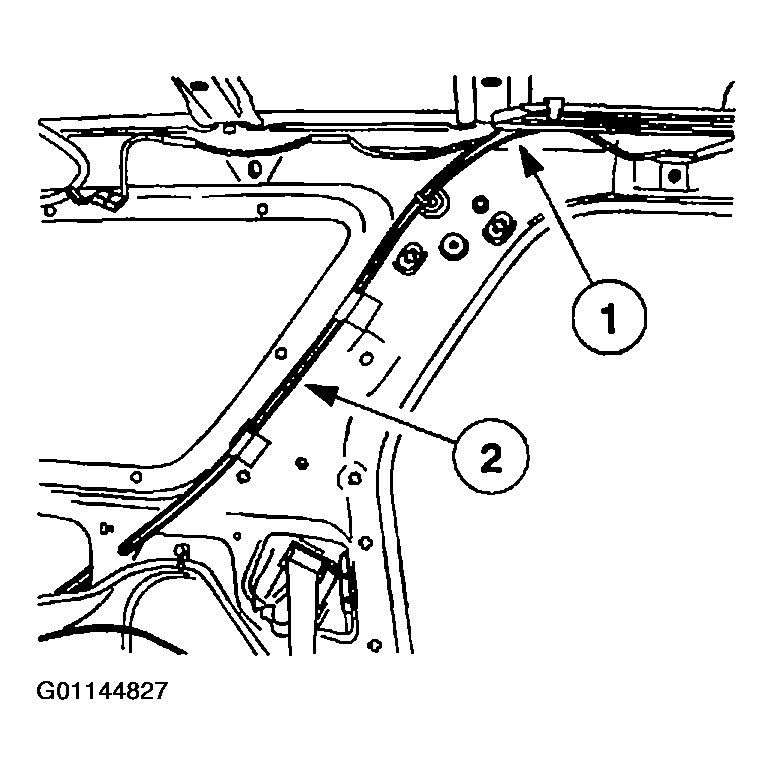

    Fig 2: Removing Roof Opening Panel Rear Drain Hose
    G01144827Courtesy of MAZDA MOTORS CORP.
  3. Remove the roof opening panel rear drain hose.
    1. Disconnect the roof opening panel rear drain hose from the roof opening panel frame.
    2. Remove the roof opening panel rear drain hose.
    3. Remove the tape securing the roof opening panel drain hose.
  4. To install, reverse the removal procedure.
