Roof Opening Panel Motor: Installation

NOTE:
  • The roof opening panel should be in the closed position.
  1. Connect the roof opening panel motor electrical connector.
  2. With the motor still removed, bump the roof opening panel switch one time only towards the close or vent open position.

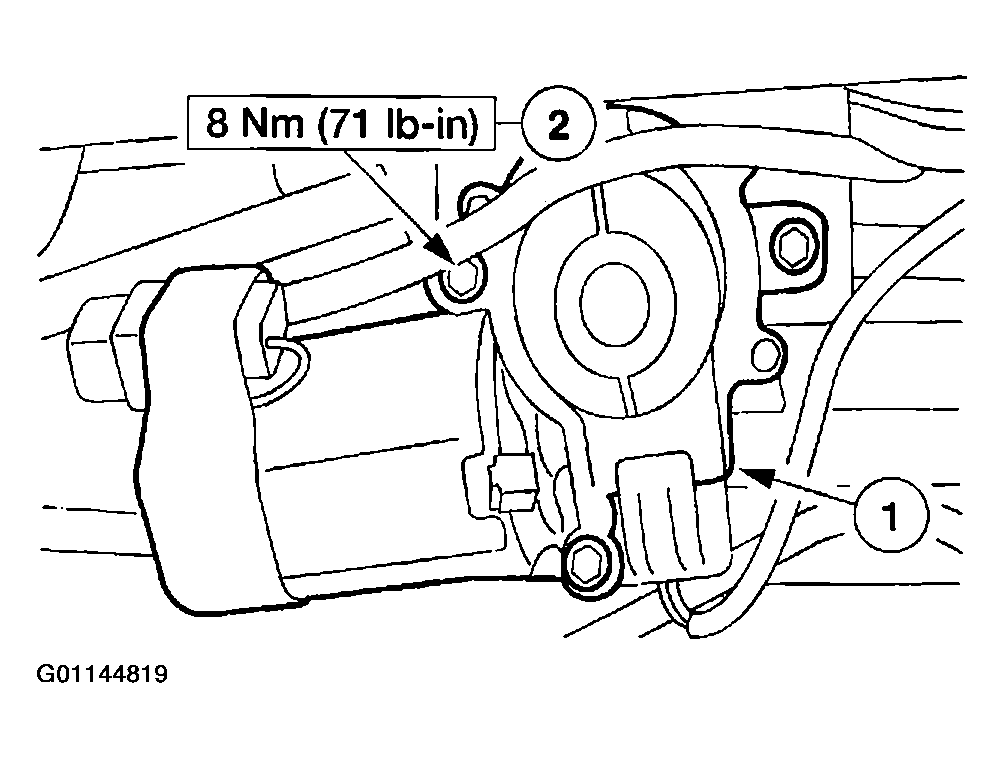

    Fig 1: Installing Roof Opening Panel Motor
    G01144819Courtesy of MAZDA MOTORS CORP.
  3. Install the roof opening panel motor.
    1. Position the roof opening panel motor.
    2. Install the bolts.
  4. Check for correct operation of the roof opening panel motor.
  5. Install the headliner. See HEADLINER in INTERIOR TRIM article.
