Removal and Installation

  1. Remove the headliner. See HEADLINER in INTERIOR TRIM article.

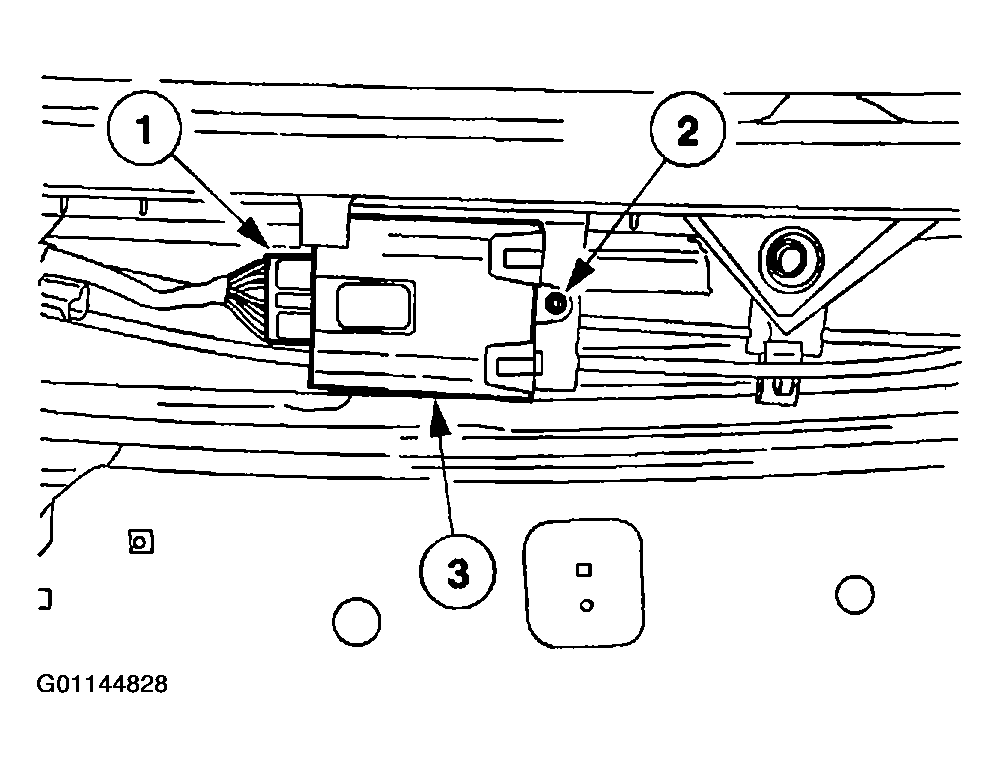

    Fig 1: Removing Roof Opening Panel Module
    G01144828Courtesy of MAZDA MOTORS CORP.
  2. Remove the roof opening panel module.
    1. Disconnect the electrical connector.
    2. Remove the screw.
    3. Remove the roof opening panel module.
  3. To install, reverse the removal procedure.
