Removal and Installation

Passenger-side

1. Remove the instrument panel. For additional, information, refer to REMOVAL & INSTALLATION in INSTRUMENT PANEL article.

   All

2. Remove the headliner. See HEADLINER in INTERIOR TRIM article.

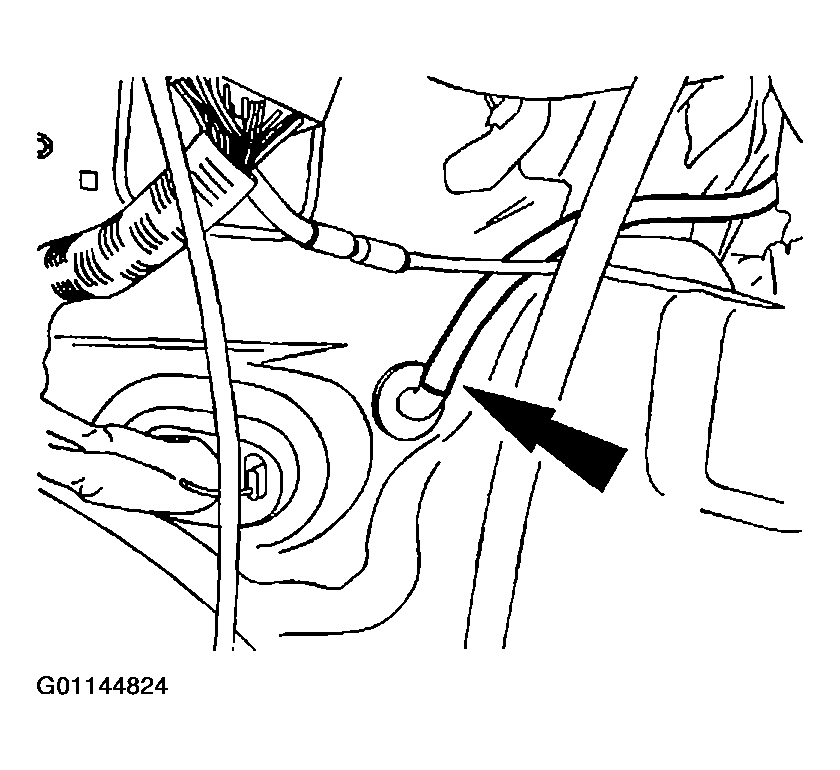

   Fig 1: Disconnecting Roof Opening Panel Front Drain Hose

   Courtesy of MAZDA MOTORS CORP.
3. Disconnect the roof opening panel front drain hose at the front body pillar.

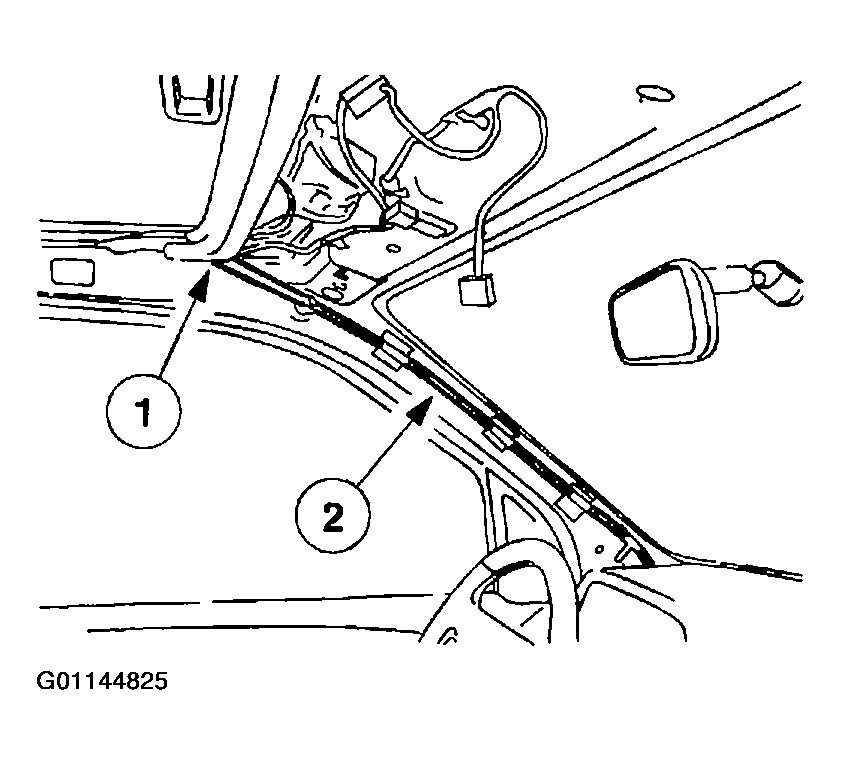

   Fig 2: Removing Roof Opening Panel Front Drain Hose

   Courtesy of MAZDA MOTORS CORP.
4. Remove the roof opening panel front drain hose.
   1. Disconnect the roof opening panel front drain hose from the roof opening panel frame.
   2. Remove the roof opening panel front drain hose.
   3. Remove the tape securing the roof opening panel front drain hose.
5. To install, reverse the removal procedure.
