Removal and Installation

Remove the headliner. See HEADLINER in INTERIOR TRIM article.

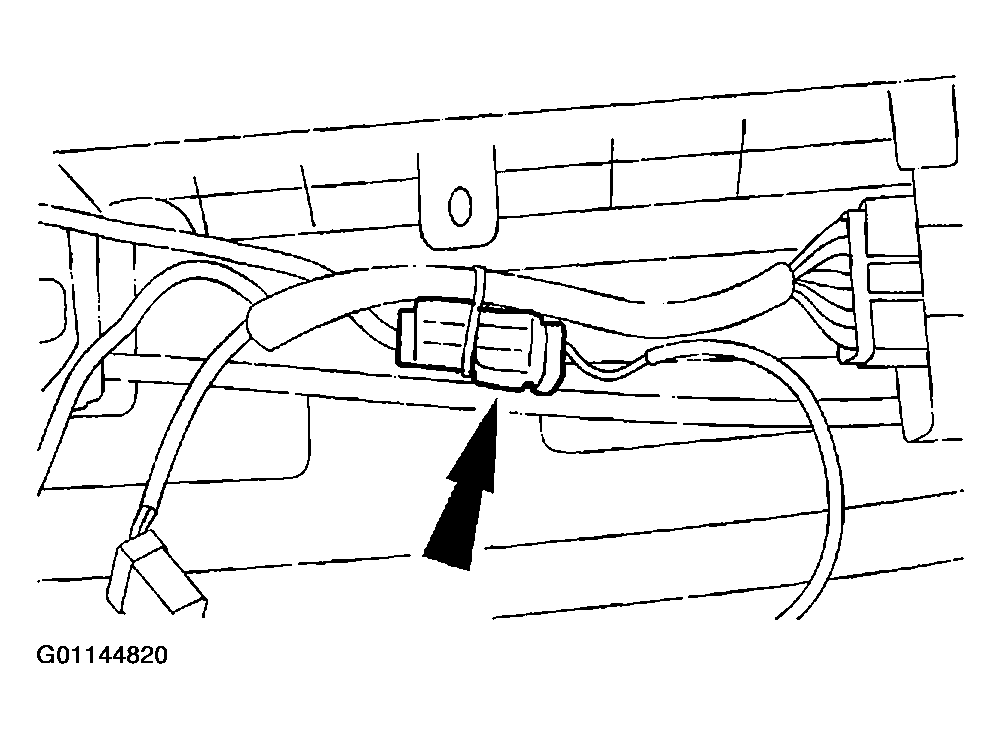

Fig 1: Disconnecting In-Line Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the in-line electrical connector.

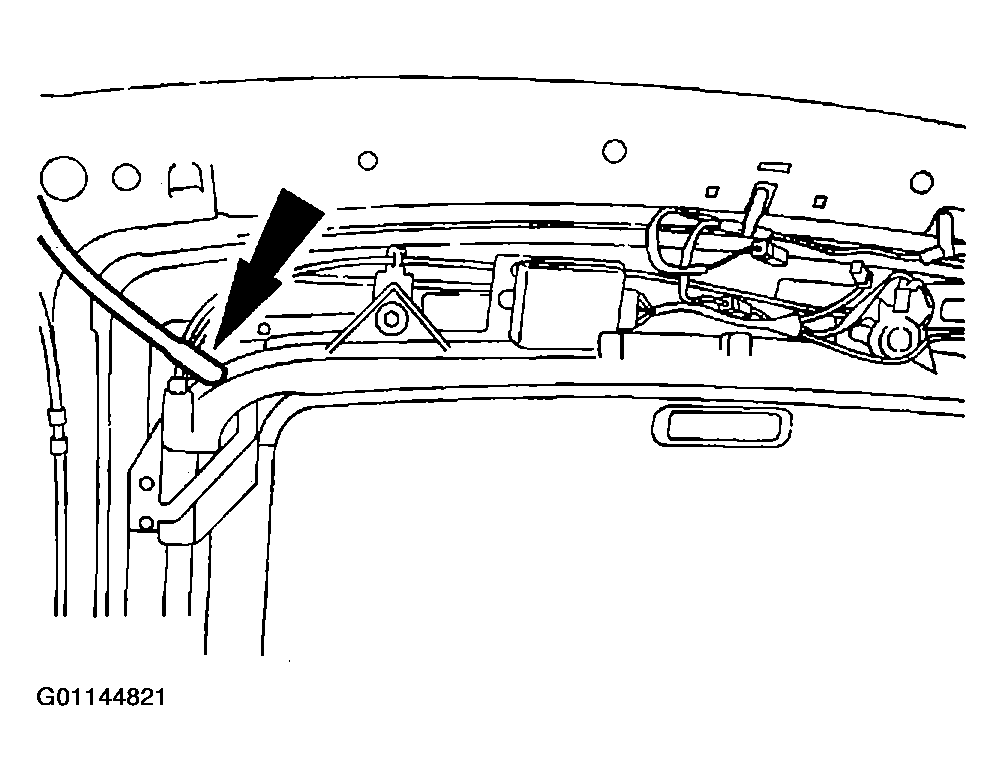

Fig 2: Disconnecting Four Roof Opening Panel Drain Hoses
Courtesy of MAZDA MOTORS CORP.
Disconnect the four roof opening panel drain hoses.

Fig 3: Releasing Wire Harness Locators
Courtesy of MAZDA MOTORS CORP.
Release the wire harness locators.

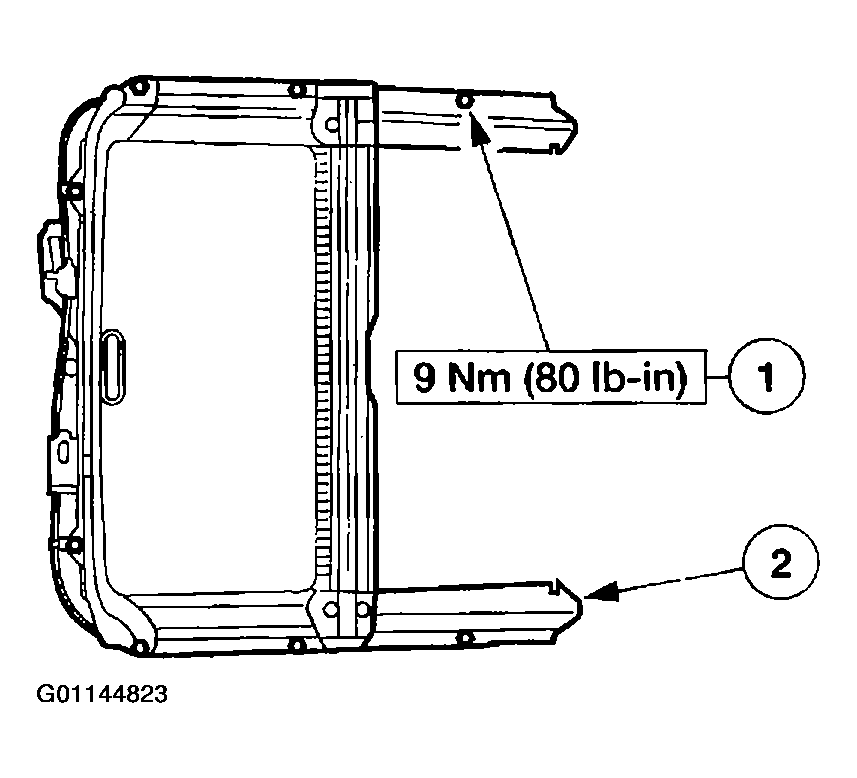

Fig 4: Removing Roof Opening Frame
Courtesy of MAZDA MOTORS CORP.
Remove the roof opening frame.
1. Remove the eight roof opening panel frame bolts.
2. Remove the roof opening panel frame.
To install, reverse the removal procedure.
