Inspection And Verification

  1. Verify the customer concern by operating the roof opening panel.
  2. Visually inspect for obvious signs of mechanical and electrical damage.

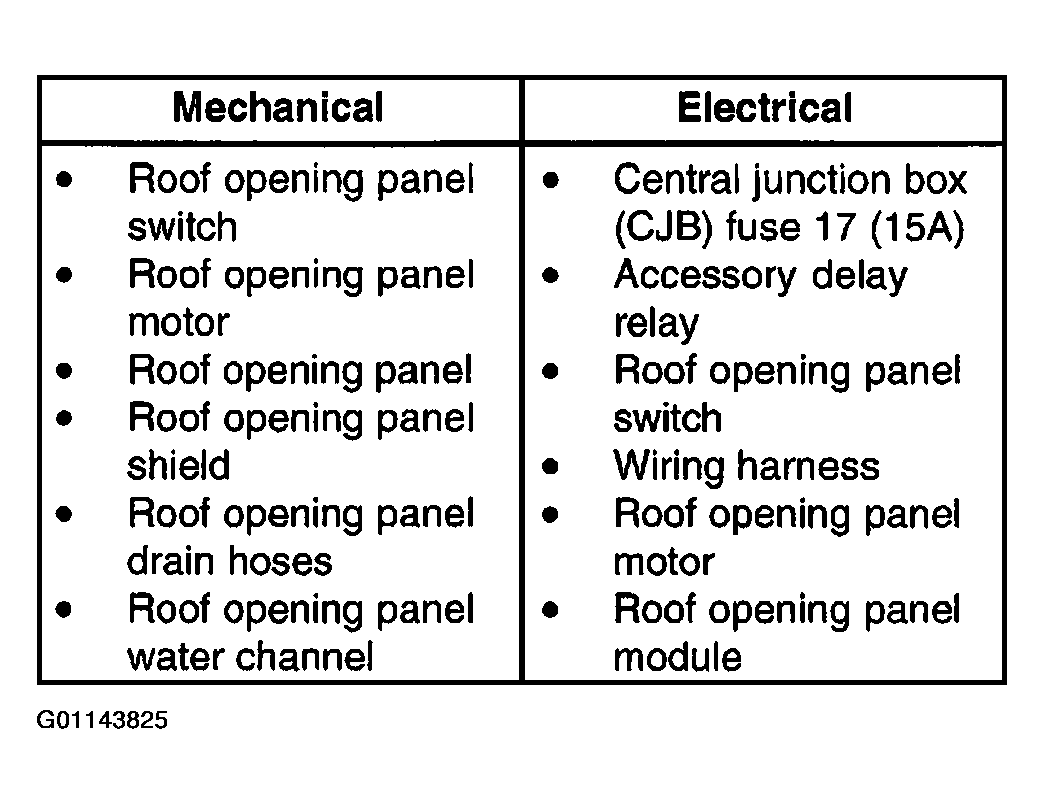

    Fig 1: Visual Inspection Chart
    G01143825Courtesy of MAZDA MOTORS CORP.
  3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
  4. If the concern is not visually evident, determine the symptom and proceed to TROUBLESHOOTING INDEX - ROOF OPENING PANEL  .
