Roof Opening Panel Alignment

Fig 1: Loosening Four Roof Opening Panel Bolts
G01144829Courtesy of MAZDA MOTORS CORP.
  1. Loosen the four roof opening panel bolts.
  2. Close the roof opening panel.

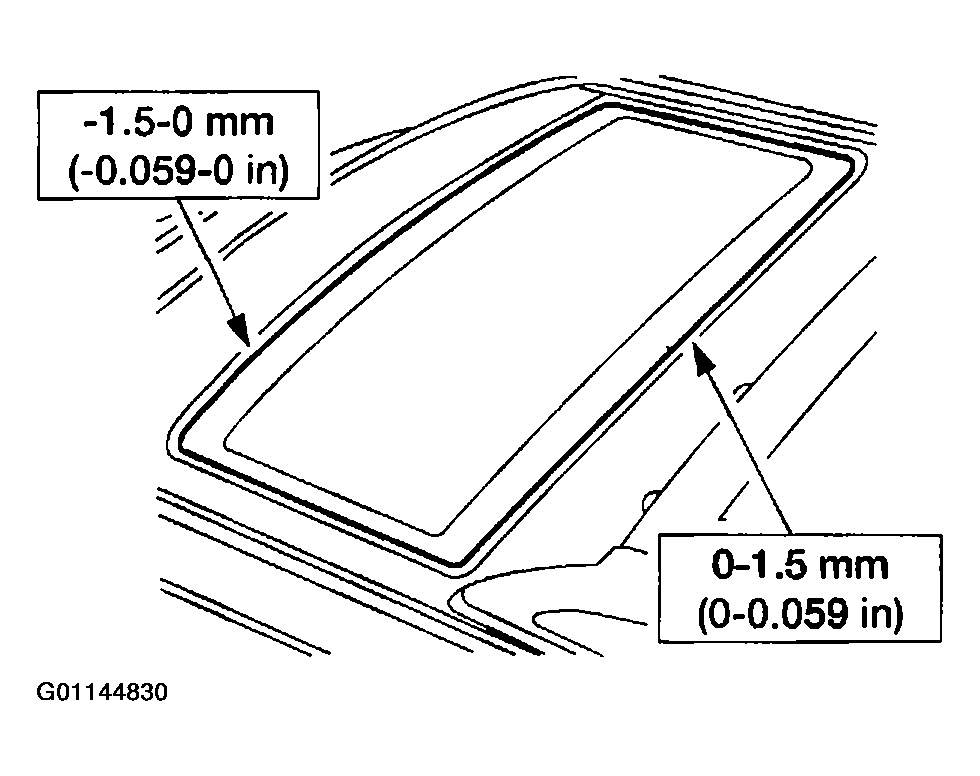

    Fig 2: Aligning Roof Opening Panel
    G01144830Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The correct position of the roof opening panel to the roof panel should be 0 to 1.5mm (0.059in) above the roof panel at the rear edge and -1.5mm (- 0.059in) to 0 below the roof panel at the front edge of the panel.
  3. Adjust the roof opening panel.
    Fig 3: Tightening Roof Opening Panel Bolts
    G01144831Courtesy of MAZDA MOTORS CORP.
  4. Tighten the roof opening panel bolts.
