Removal and Installation

Fig 1: Removing/Installing Six Pin-Type Retainers

Courtesy of MAZDA MOTORS CORP.

Remove the six pin-type retainers (three each side).

Fig 2: Removing/Installing Four Front Bumper Cover Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the four front bumper cover bolts (two each side).

Fig 3: Removing/Installing Two Front Bumper Cover To Front Fender Pin-Type Retainers
Courtesy of MAZDA MOTORS CORP.
Remove the two front bumper cover to front fender pin-type retainers (one each side).
If equipped, disconnect the fog lamp electrical connectors.

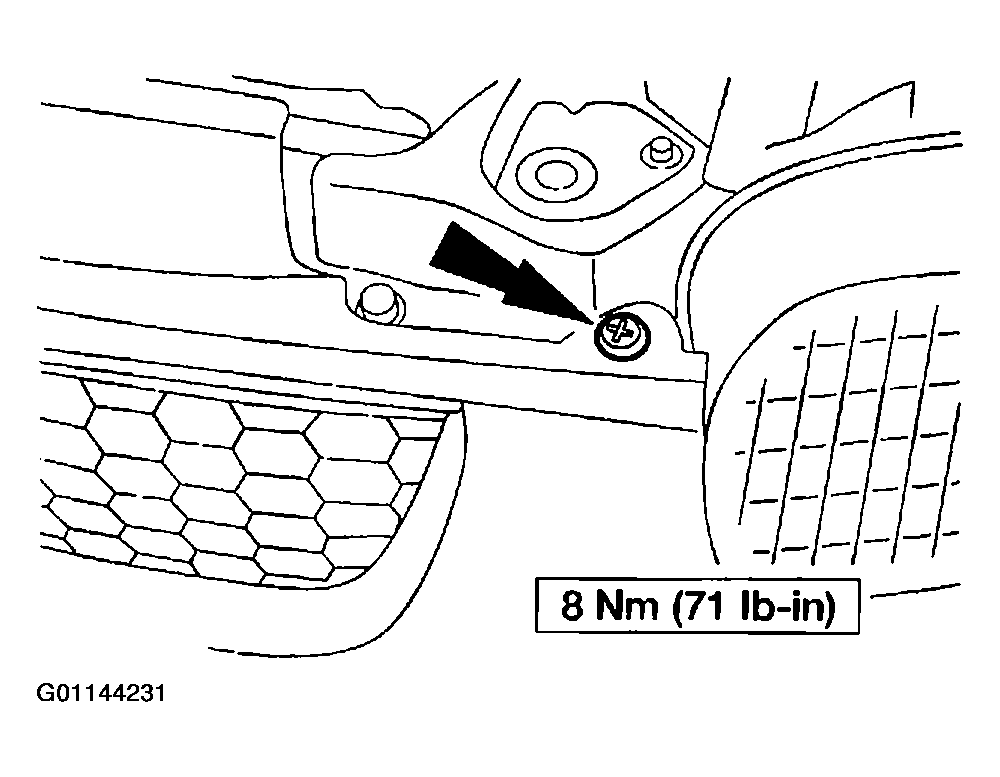

Fig 4: Removing/Installing Lower Front Bumper Cover Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the lower front bumper cover bolts.

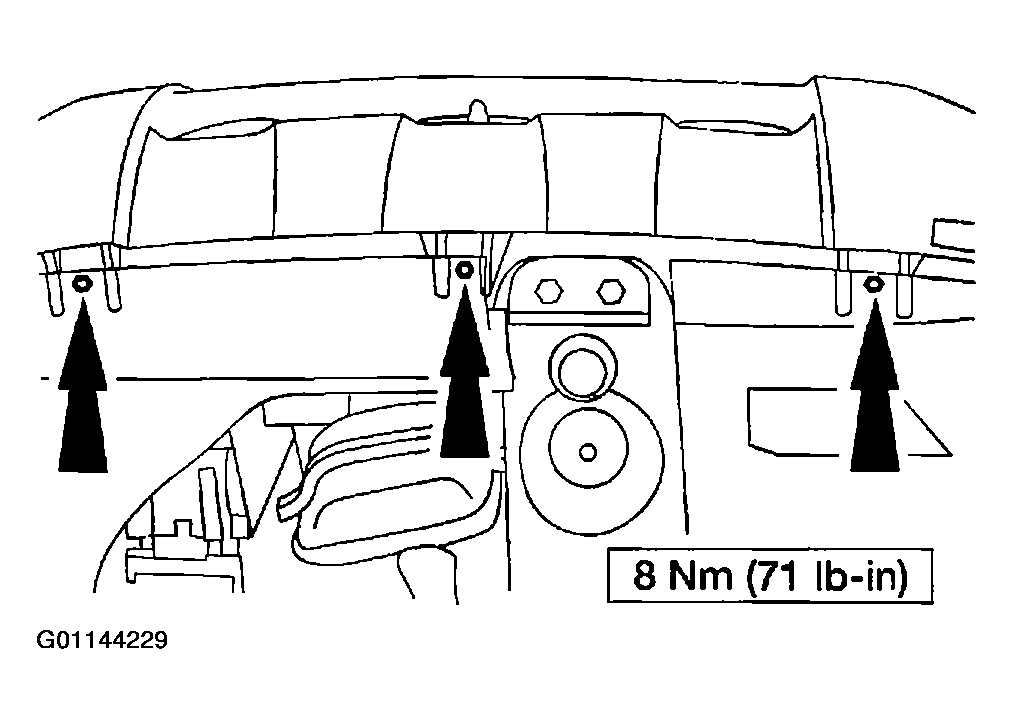

Fig 5: Removing/Installing Pin-Type Retainers
Courtesy of MAZDA MOTORS CORP.
Remove the pin-type retainers.

Fig 6: Removing/Installing Upper Bolts & Front Bumper Cover
Courtesy of MAZDA MOTORS CORP.
Remove the two upper bolts (one each side) and the front bumper cover.
To install, reverse the removal procedure.

When installing, be sure to position the front bumper cover into the bumper slides.
Transfer components as necessary.
