Removal and Installation

  1. Remove the audio unit.

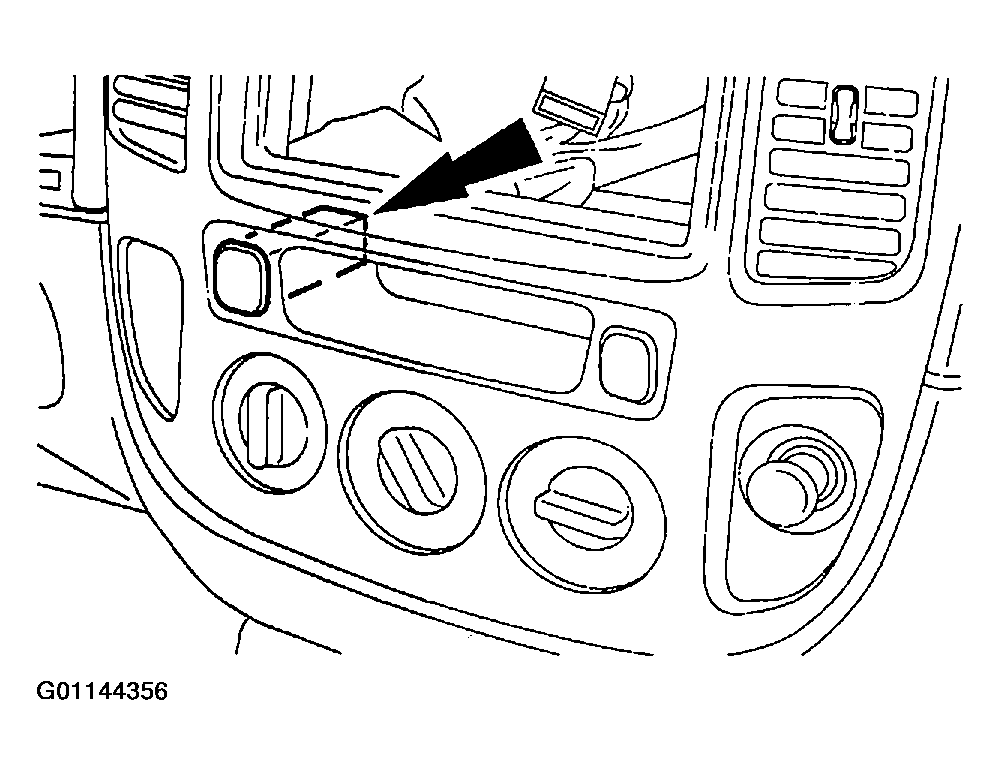

    Fig 1: Removing Rear Window Defrost Switch
    G01144356Courtesy of MAZDA MOTORS CORP.
  2. Push outward on the rear window defrost switch to remove it from the instrument panel center finish panel.
    1. Disconnect the electrical connector.
  3. To install, reverse the removal procedure.
