Defrost System Is Inoperative (Pinpoint Test 6)

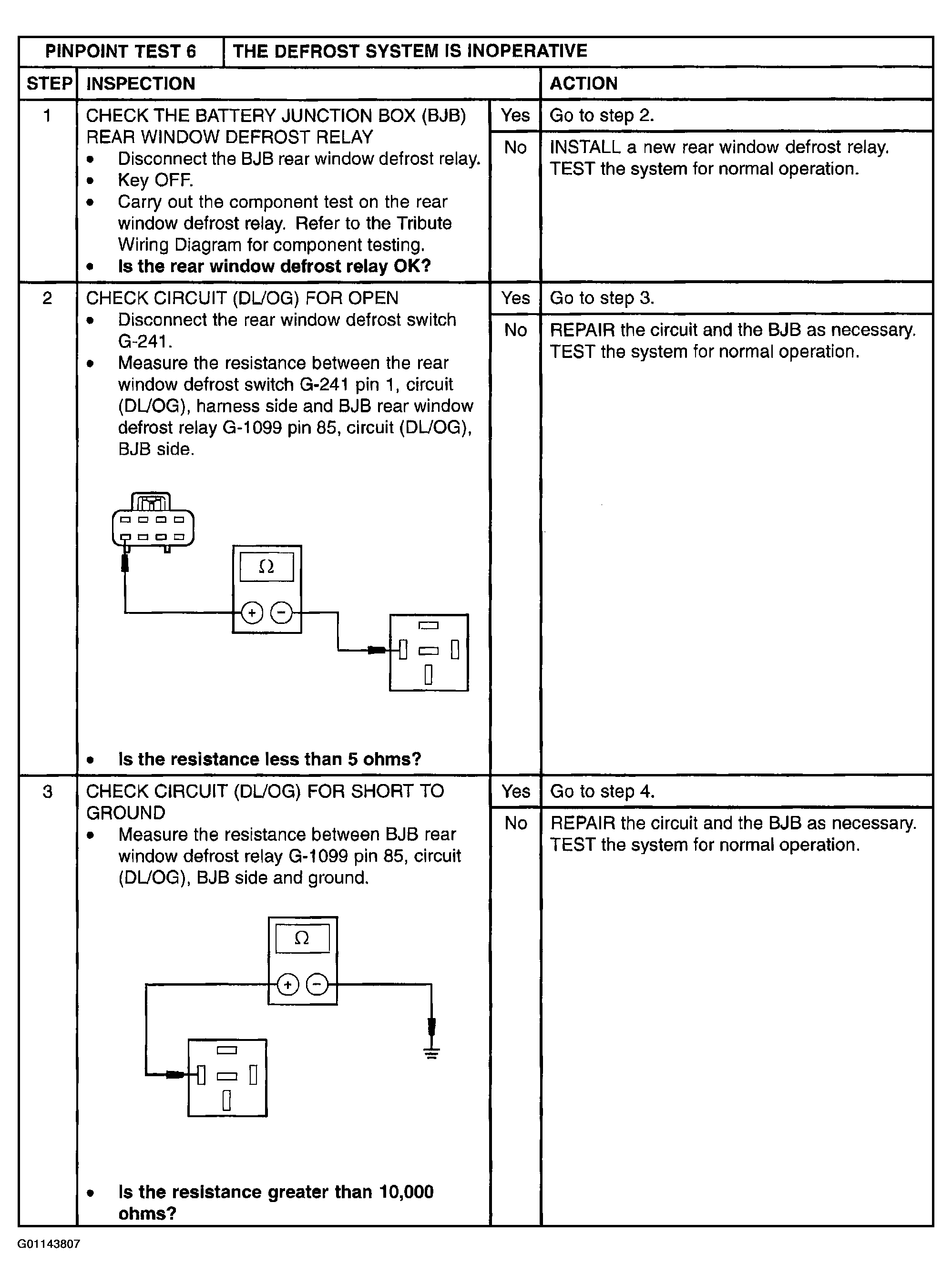

Fig 1: Pinpoint Test 6: Defrost System Is Inoperative (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

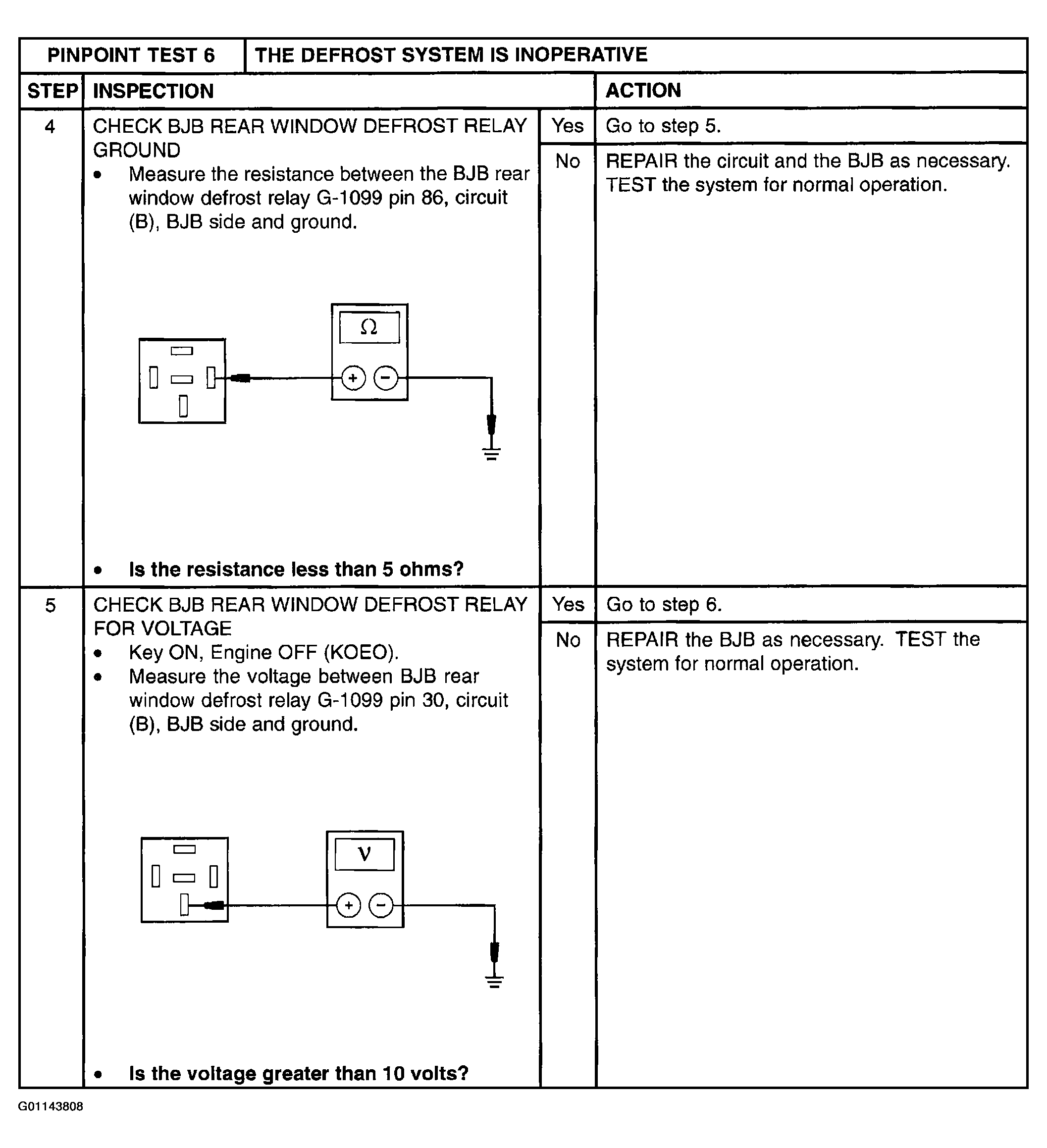

Fig 2: Pinpoint Test 6: The Defrost System Is Inoperative (Steps 4 & 5)

Courtesy of MAZDA MOTORS CORP.

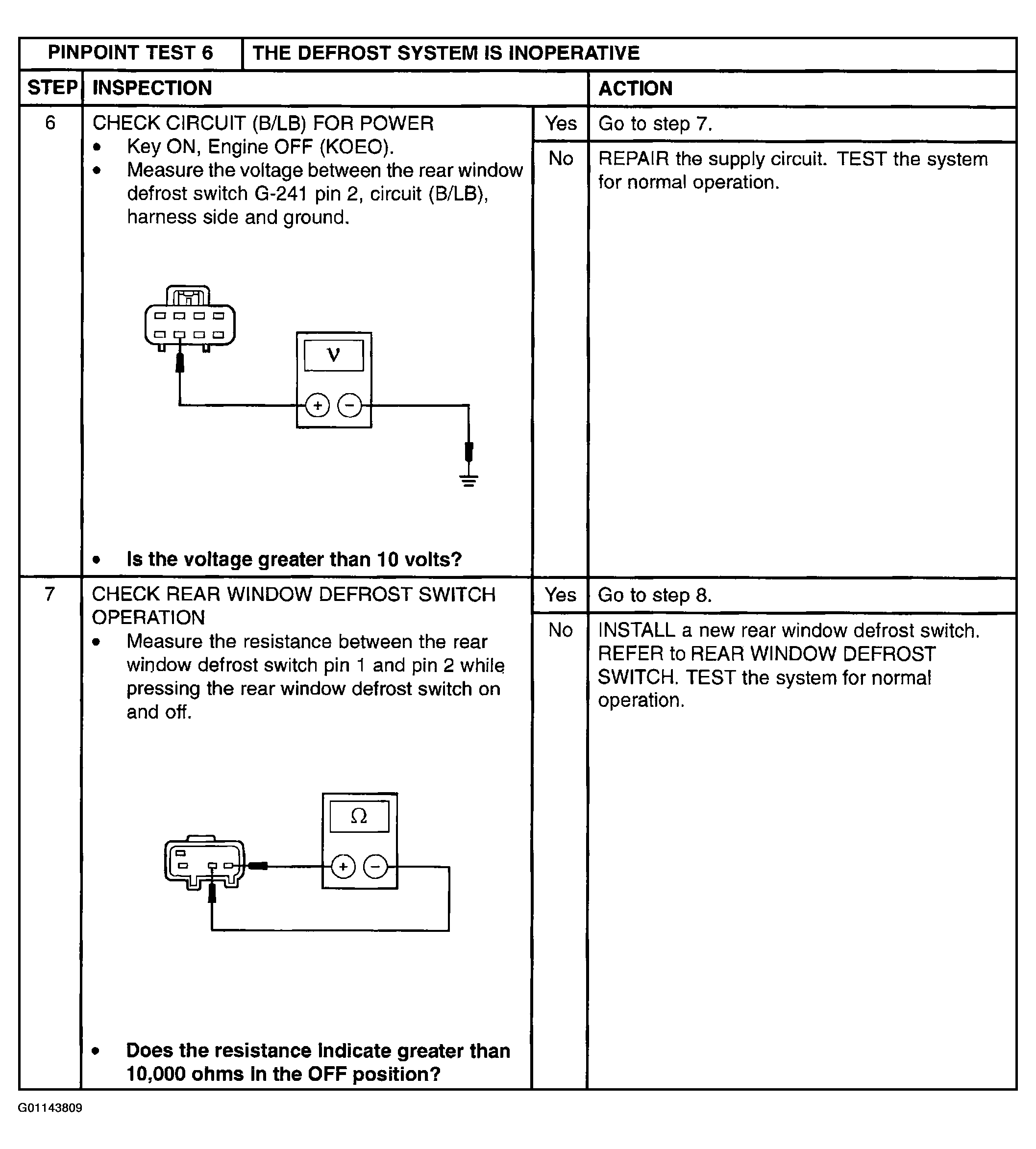

Fig 3: Pinpoint Test 6: The Defrost System Is Inoperative (Steps 6 & 7)

Courtesy of MAZDA MOTORS CORP.

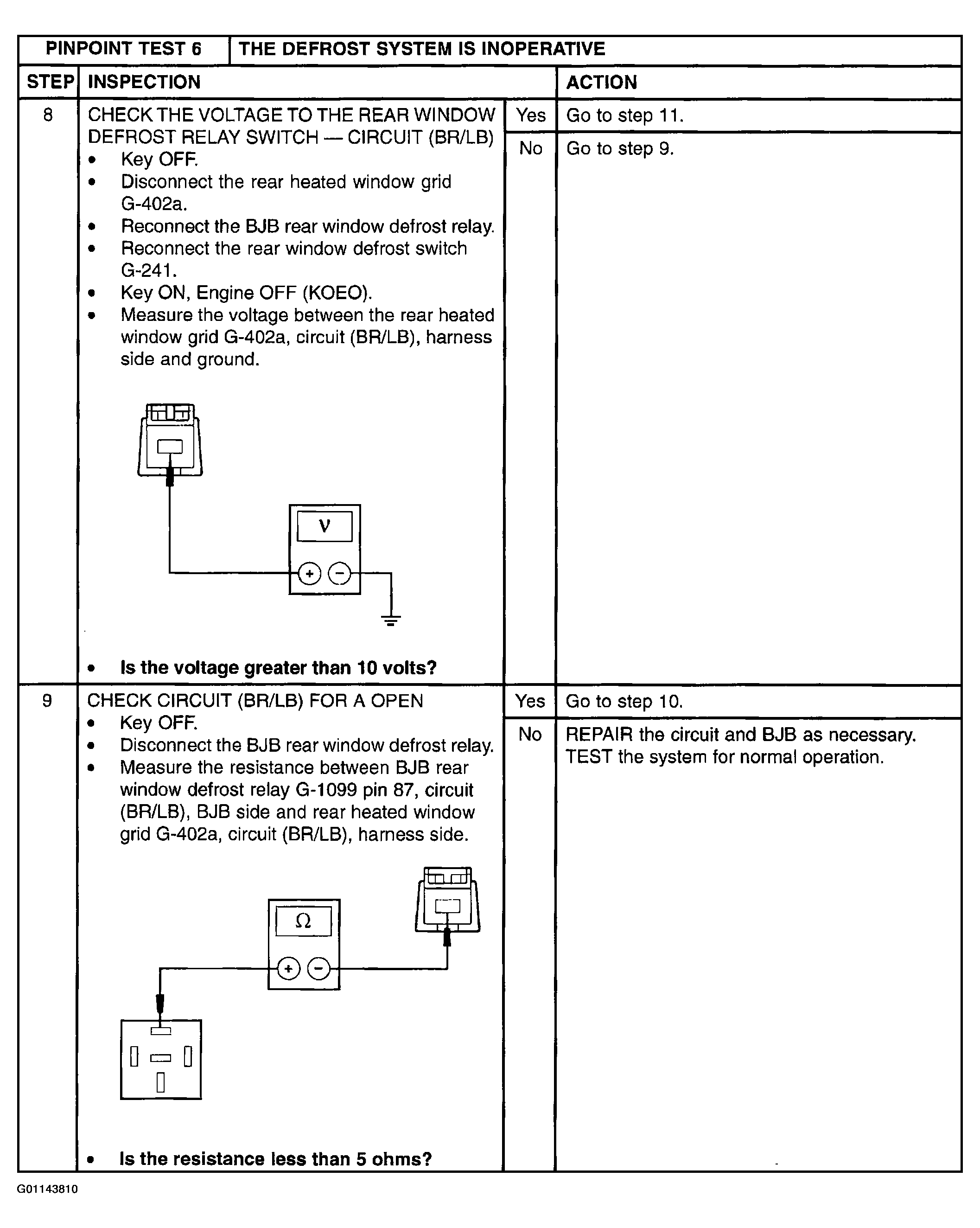

Fig 4: Pinpoint Test 6: The Defrost System Is Inoperative (Steps 8 & 9)

Courtesy of MAZDA MOTORS CORP.

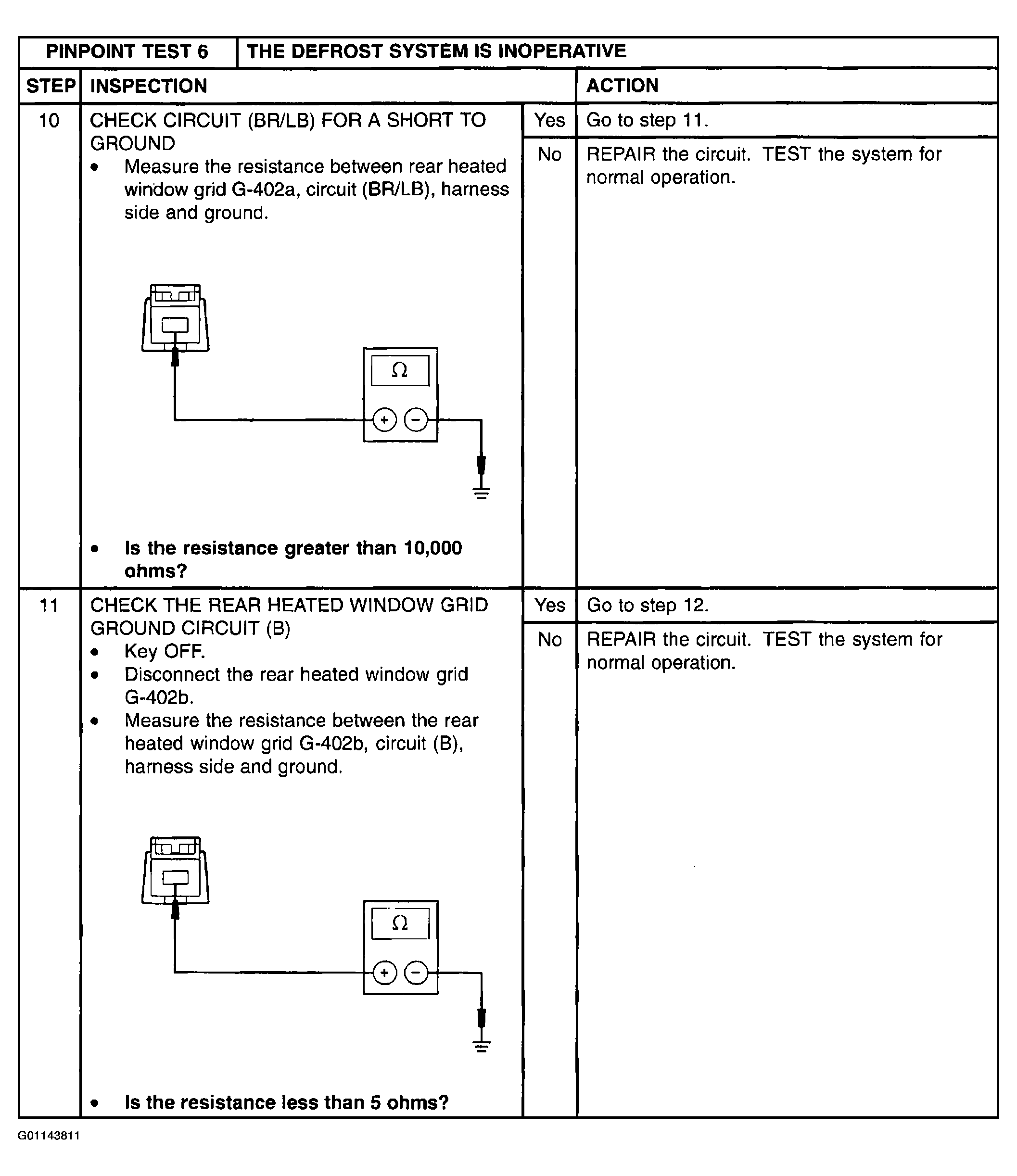

Fig 5: Pinpoint Test 6: The Defrost System Is Inoperative (Steps 10 & 11)

Courtesy of MAZDA MOTORS CORP.

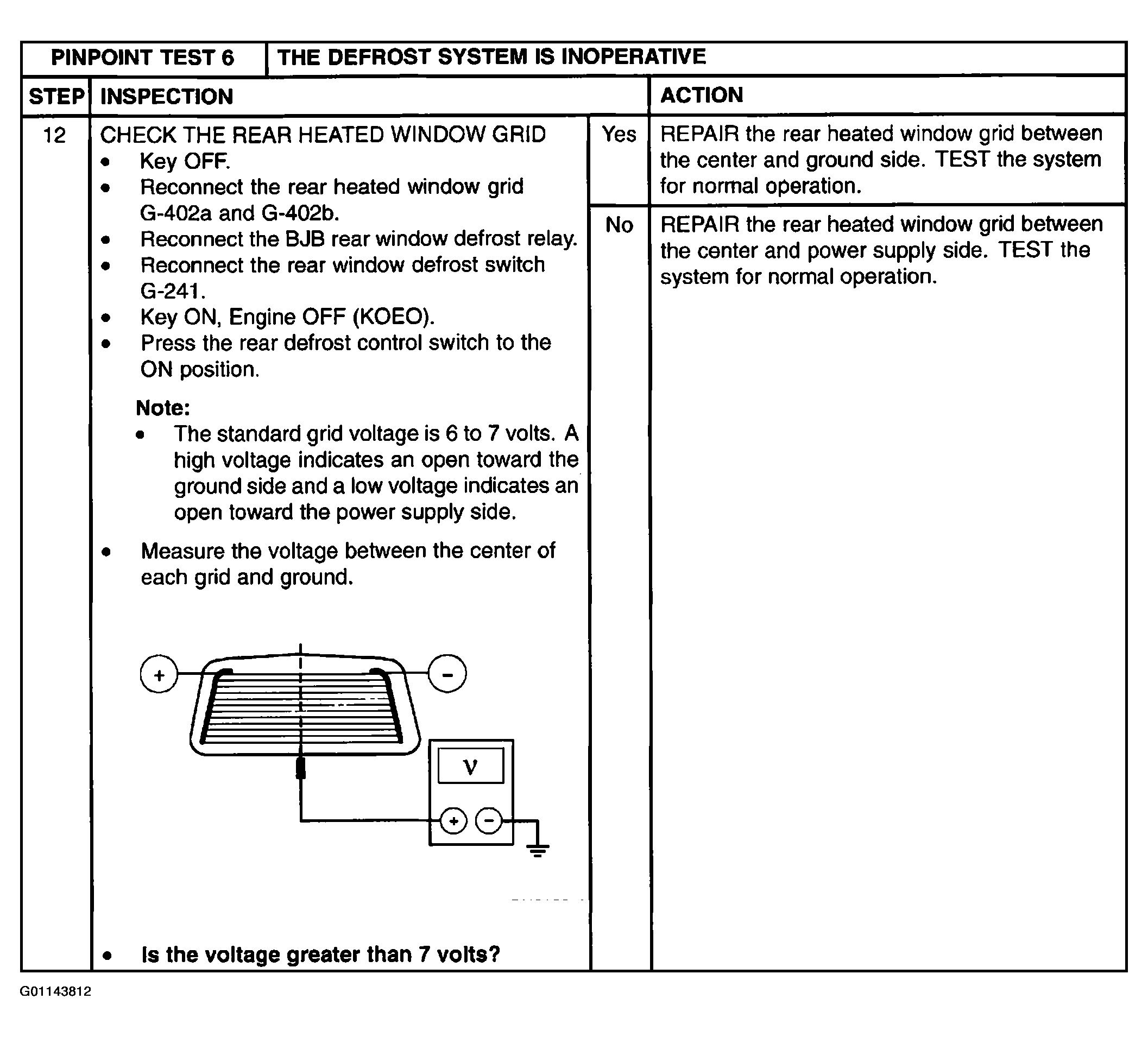

Fig 6: Pinpoint Test 6: The Defrost System Is Inoperative (Step 12)

Courtesy of MAZDA MOTORS CORP.
