Pinpoint Test 5: One Turn Signal/Hazard Lamp Is Never On

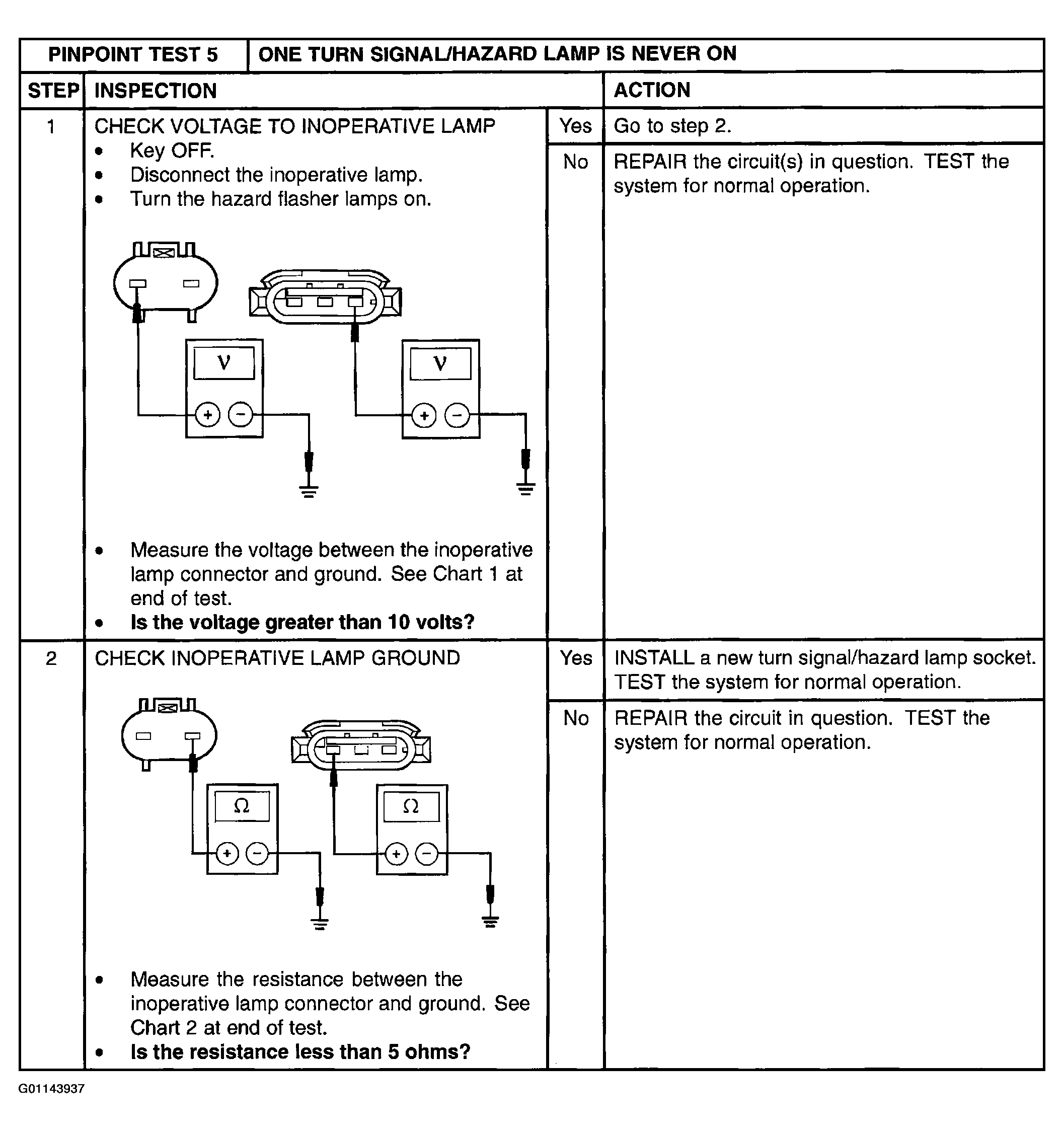

Fig 1: Pinpoint Test 5: One Turn Signal/Hazard Lamp Is Never On

Courtesy of MAZDA MOTORS CORP.

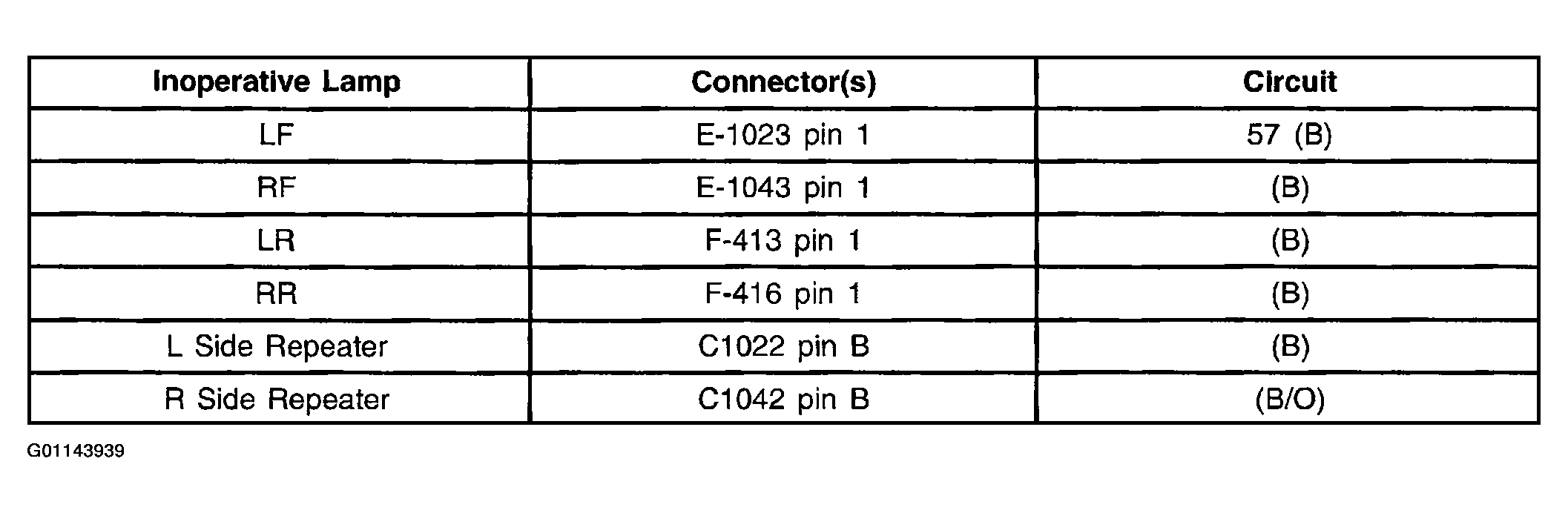

Fig 2: Chart 1

Courtesy of MAZDA MOTORS CORP.

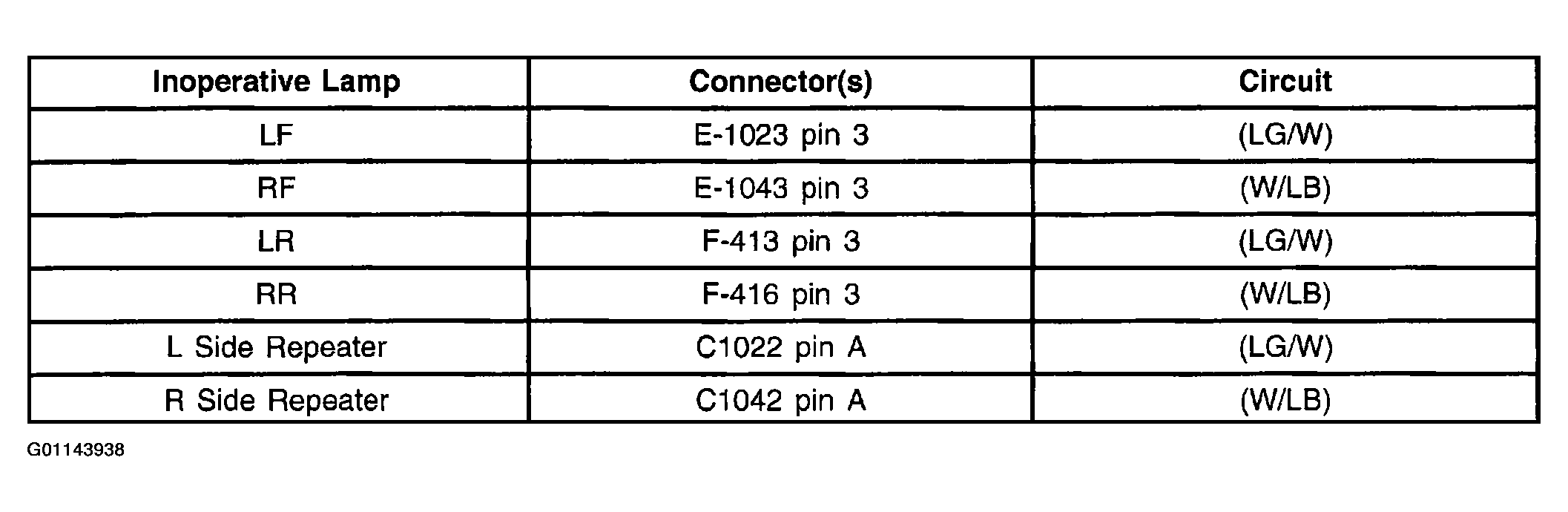

Fig 3: Chart 2

Courtesy of MAZDA MOTORS CORP.
