Pinpoint Test 1: The Turn Signal Lamps Are Never On

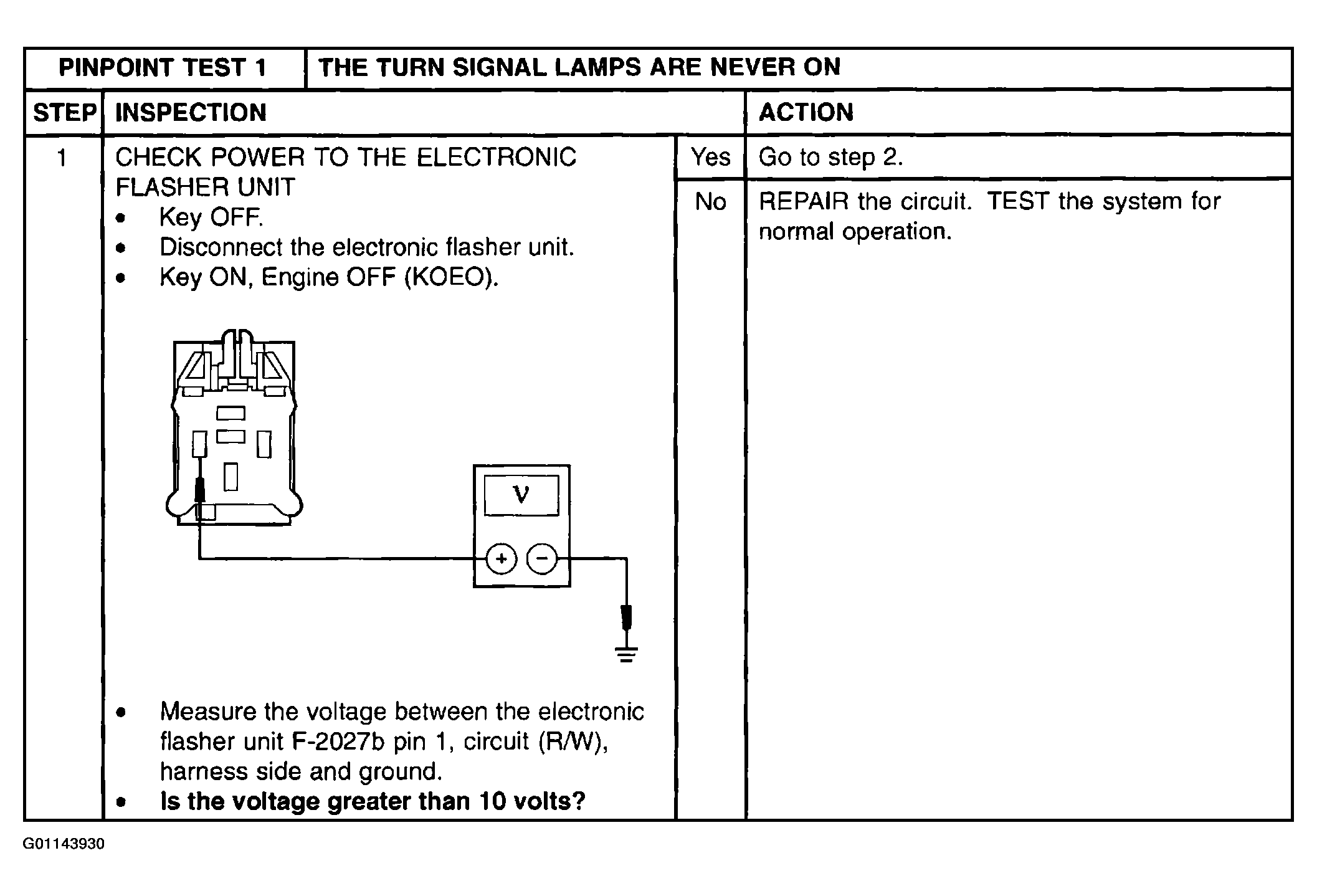

Fig 1: Pinpoint Test 1: The Turn Signal Lamps Are Never On (Step 1)

Courtesy of MAZDA MOTORS CORP.

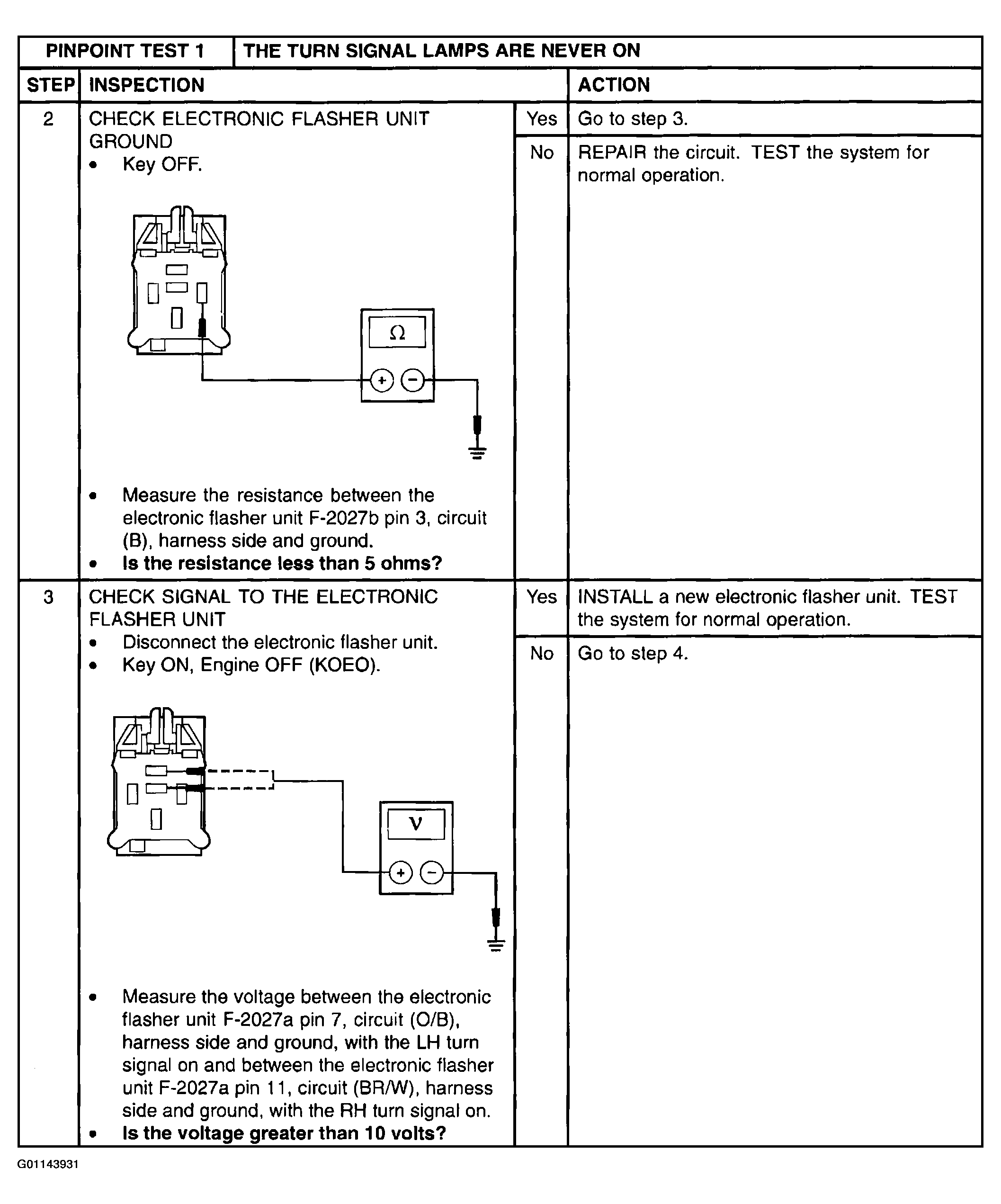

Fig 2: Pinpoint Test 1: The Turn Signal Lamps Are Never On (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

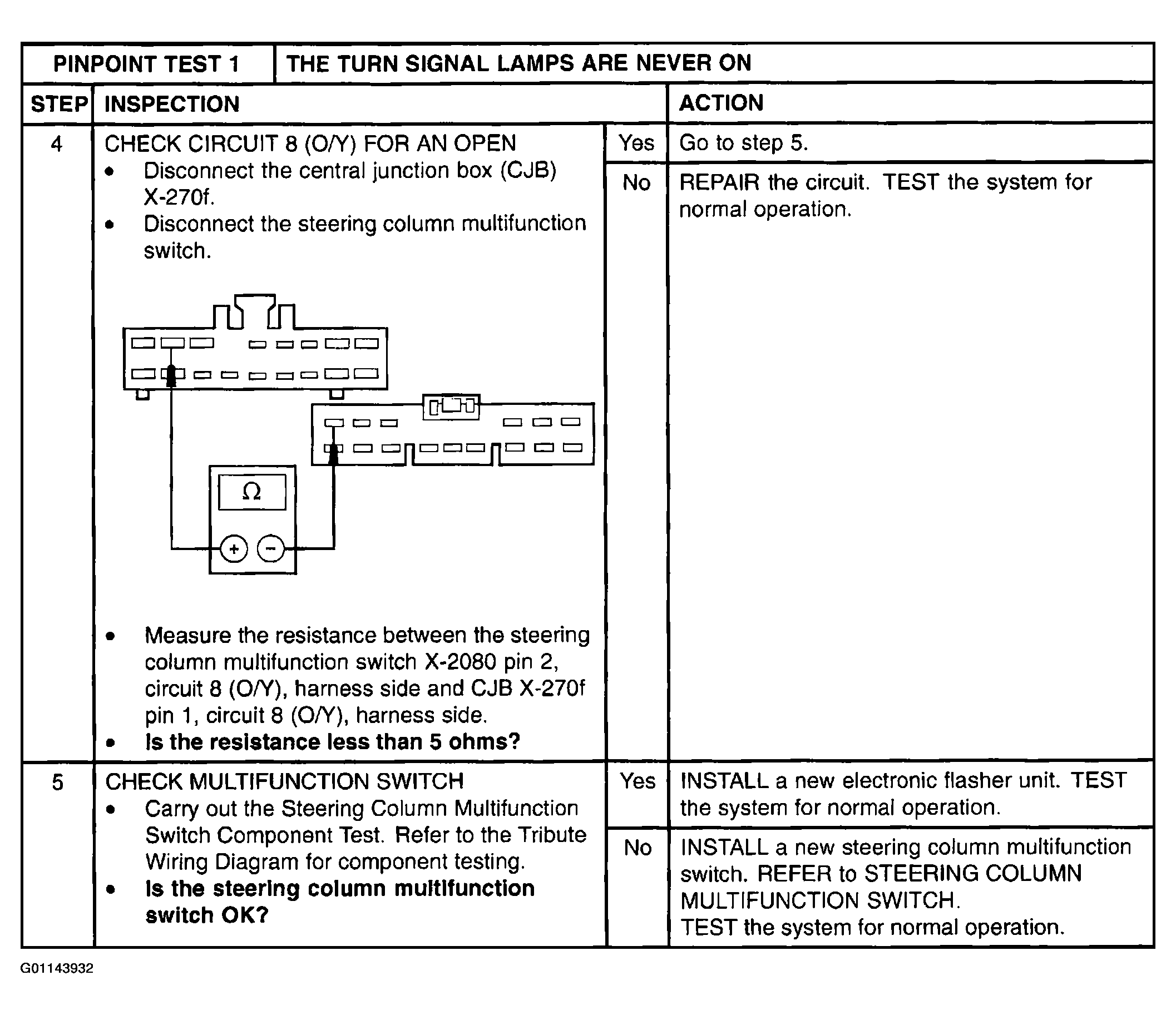

Fig 3: Pinpoint Test 1: The Turn Signal Lamps Are Never On (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
