Troubleshooting Index - Turn Signal, Cornering, And Hazard Lamps: Notes

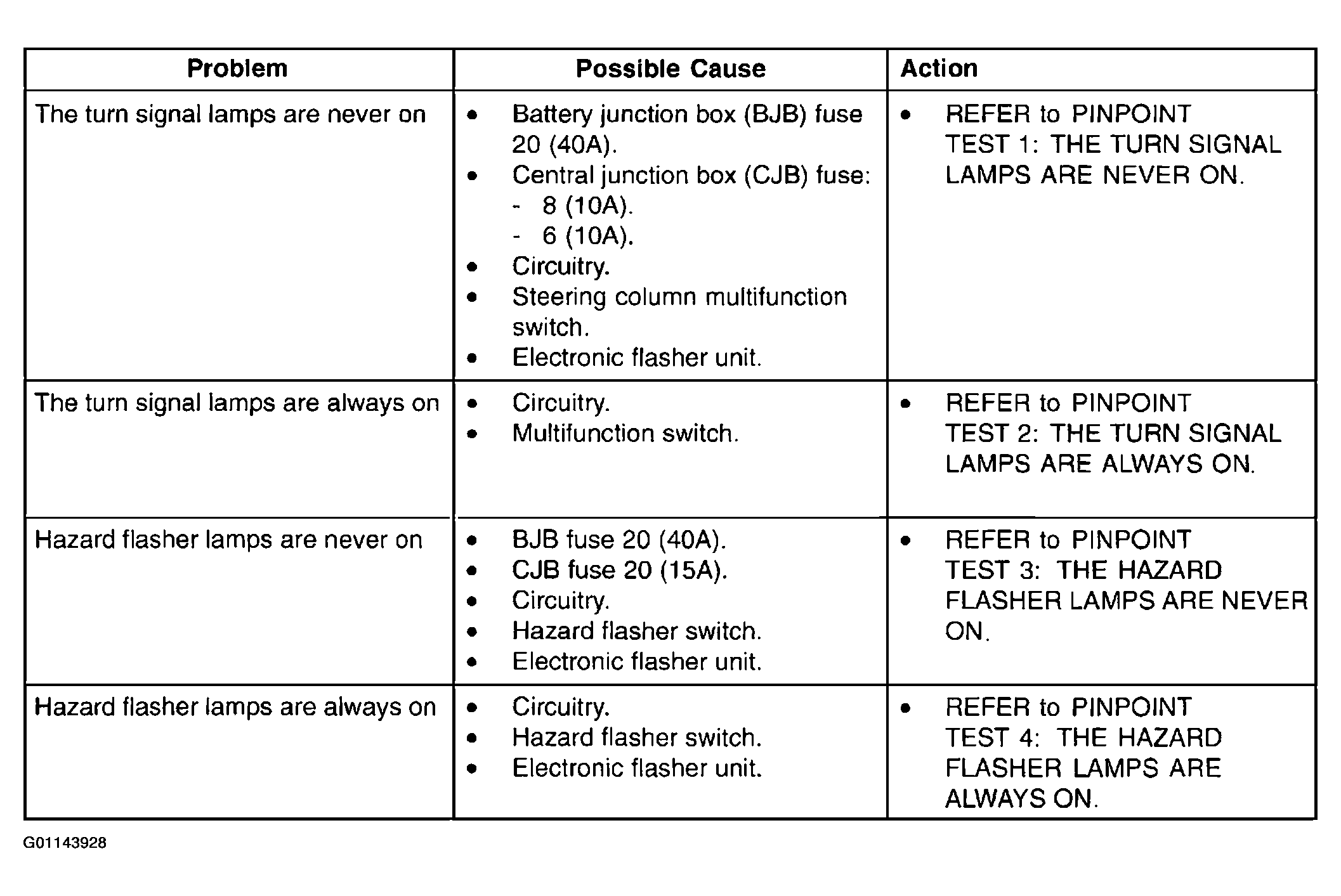

Fig 1: Troubleshooting Index - Turn Signal, Cornering, And Hazard Lamps (1 Of 2)
G01143928Courtesy of MAZDA MOTORS CORP.

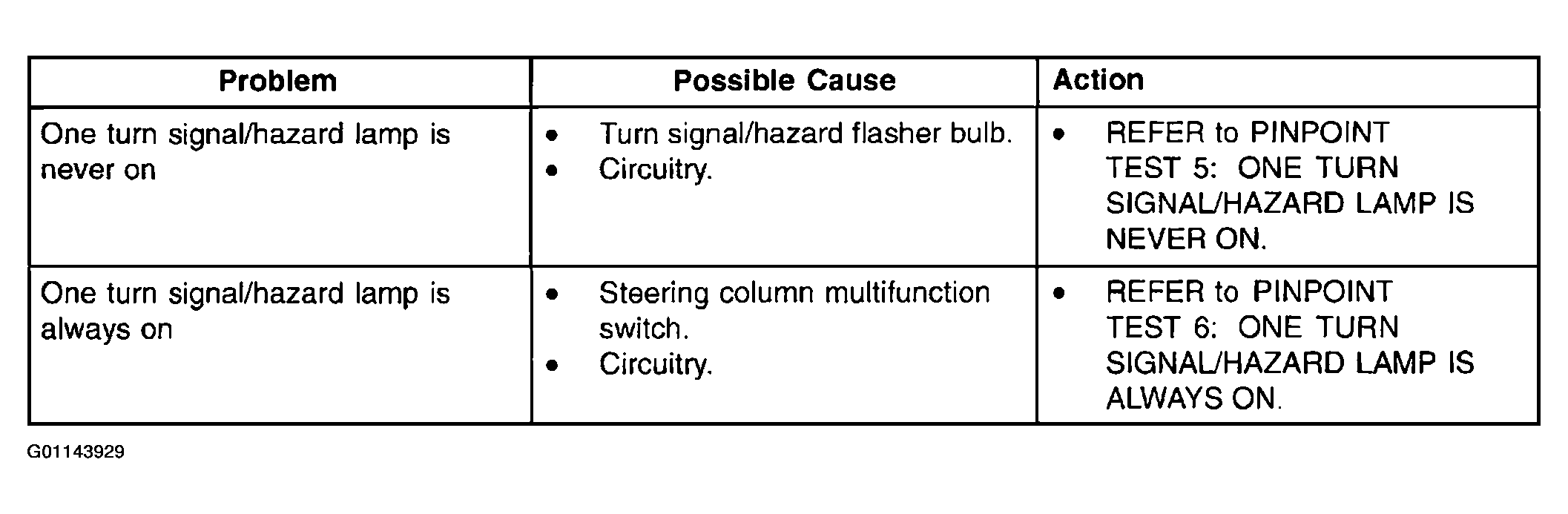

Fig 2: Troubleshooting Index - Turn Signal, Cornering, And Hazard Lamps (2 Of 2)
G01143929Courtesy of MAZDA MOTORS CORP.
