Pinpoint Test 3: The STOPLAMPS Are On Continuously

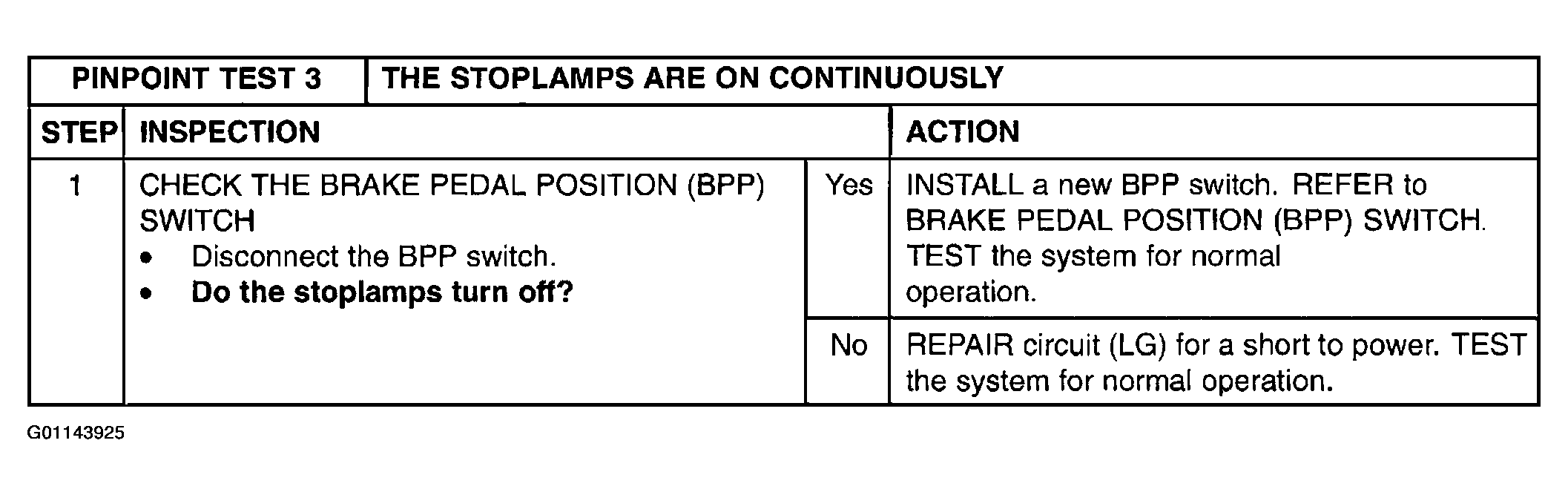

Fig 1: Pinpoint Test 3: The Stoplamps Are On Continuously

G01143925

Courtesy of MAZDA MOTORS CORP.
