Pinpoint Test 2: One Or More STOPLAMPS Are Inoperative

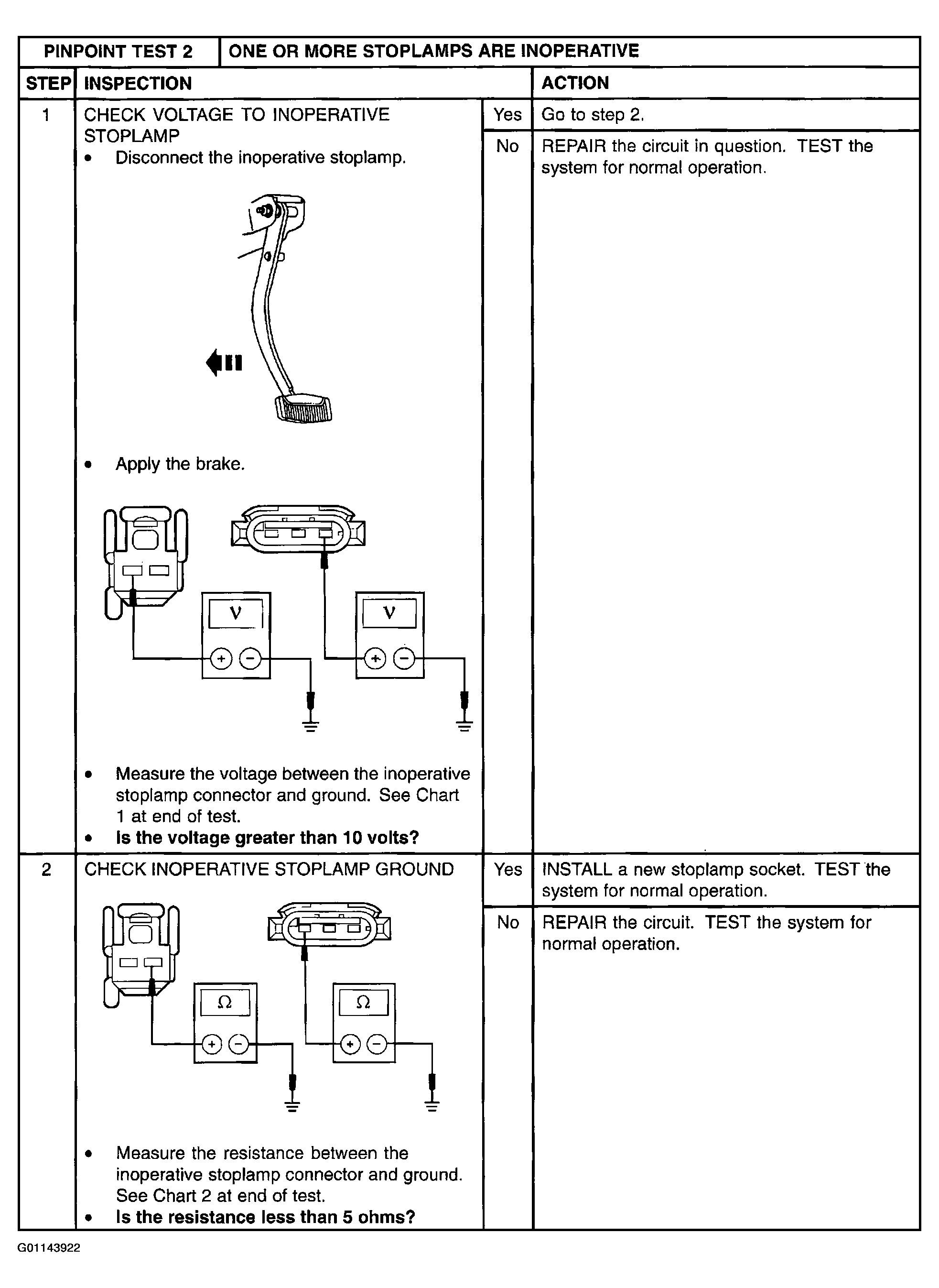

Fig 1: Pinpoint Test 2: One Or More Stoplamps Are Inoperative

Courtesy of MAZDA MOTORS CORP.

Fig 2: Chart 1

Courtesy of MAZDA MOTORS CORP.

Fig 3: Chart 2

Courtesy of MAZDA MOTORS CORP.
