Pinpoint Test 1: The STOPLAMPS Are Inoperative

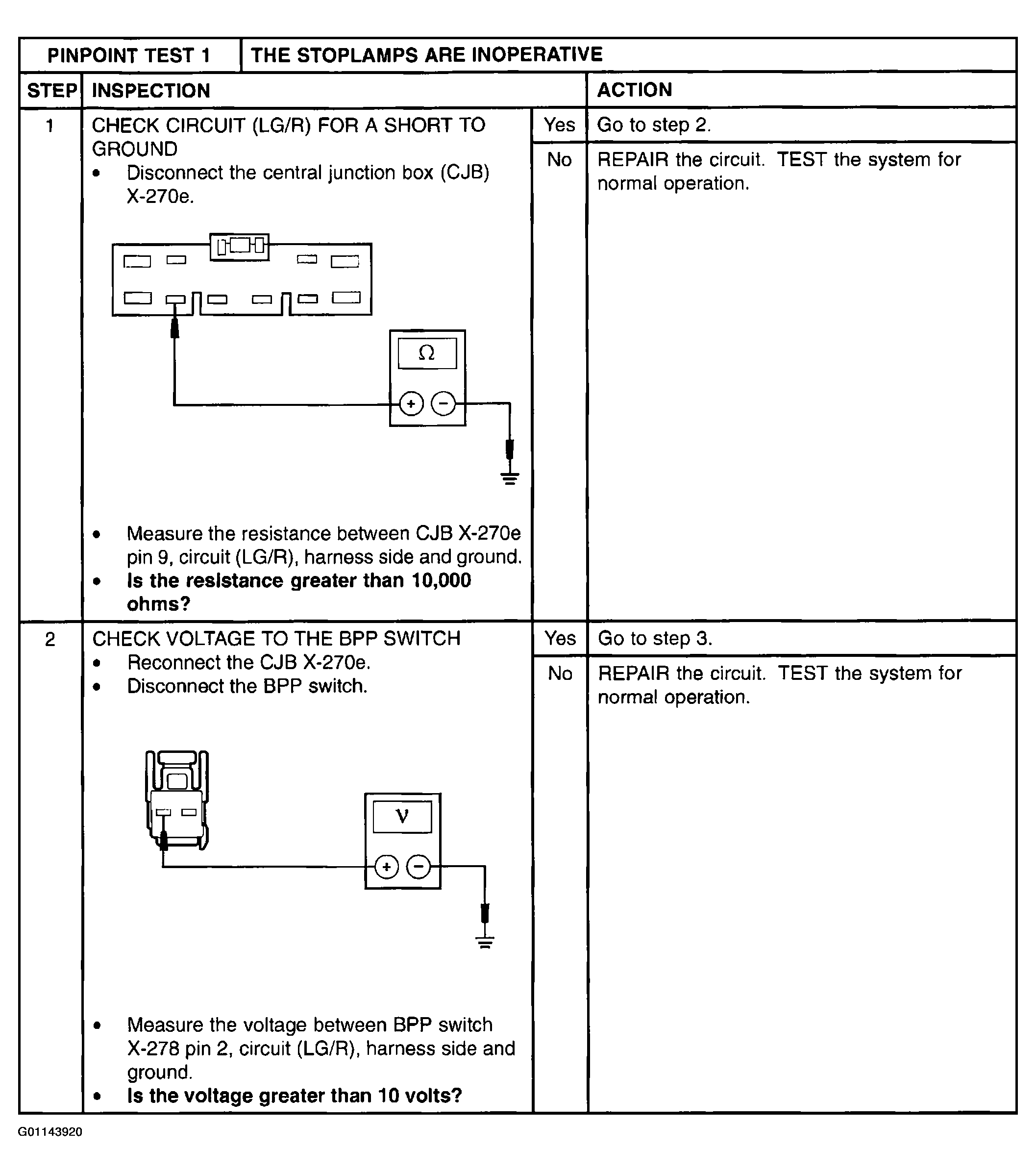

Fig 1: Pinpoint Test 1: The Stoplamps Are Inoperative (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

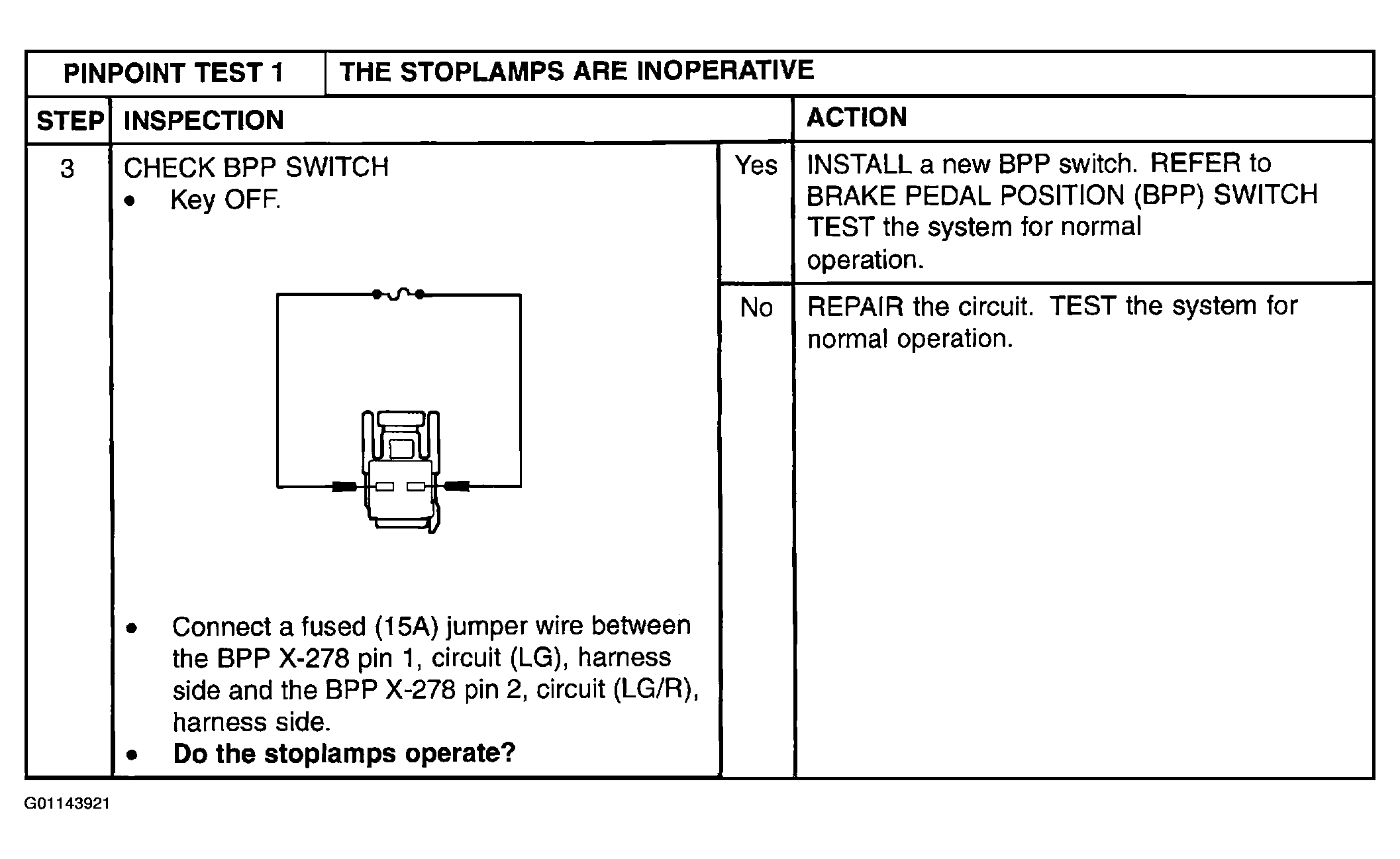

Fig 2: Pinpoint Test 1: The Stoplamps Are Inoperative (Step 3)

Courtesy of MAZDA MOTORS CORP.
