Pinpoint Test 7: The Flash-To-Pass Feature Is Inoperative

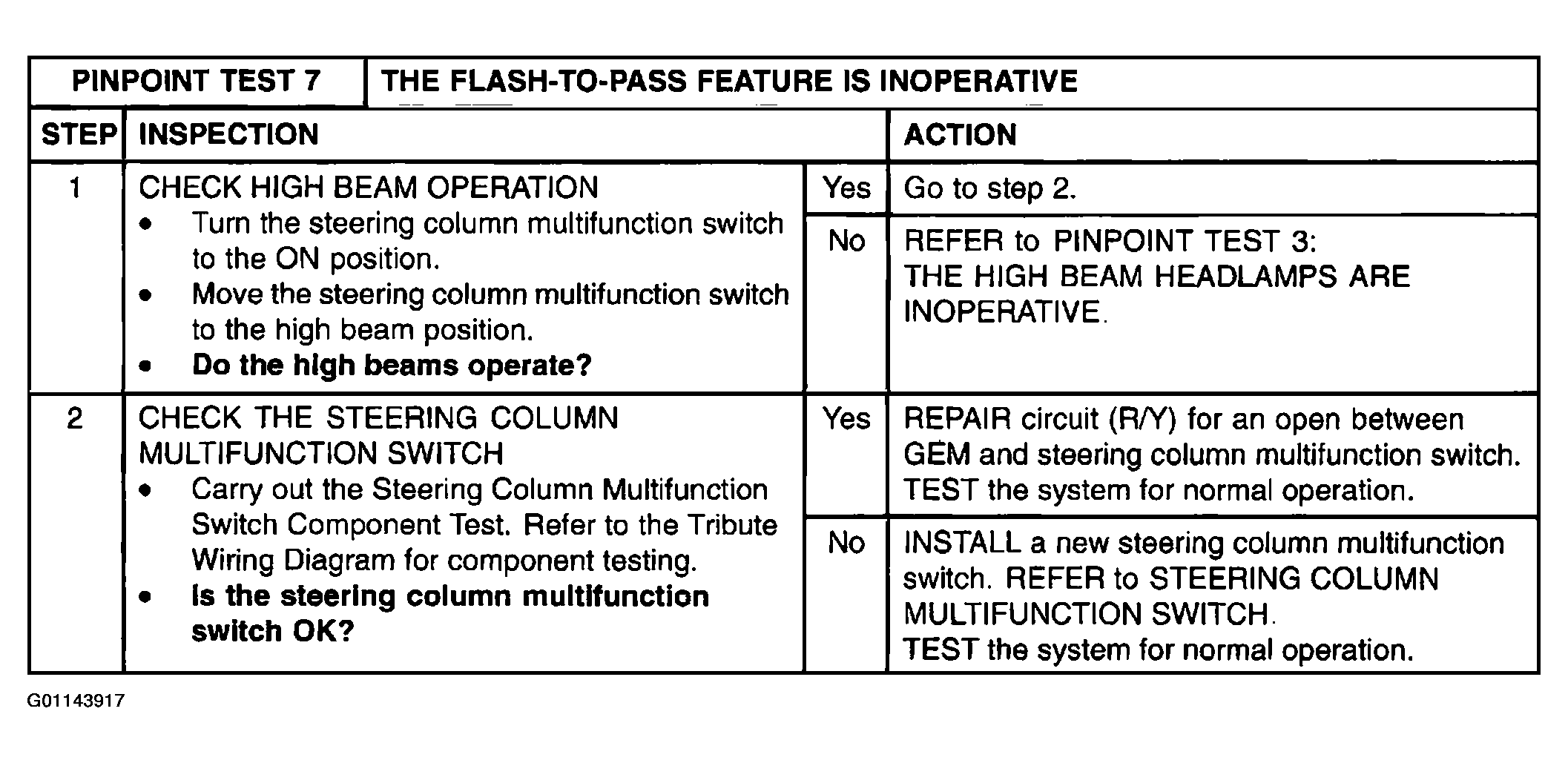

Fig 1: Pinpoint Test 7: The Flash-To-Pass Feature Is Inoperative

G01143917

Courtesy of MAZDA MOTORS CORP.
