Troubleshooting Index - Headlamps
>>
Notes
Troubleshooting Index - Headlamps: Notes

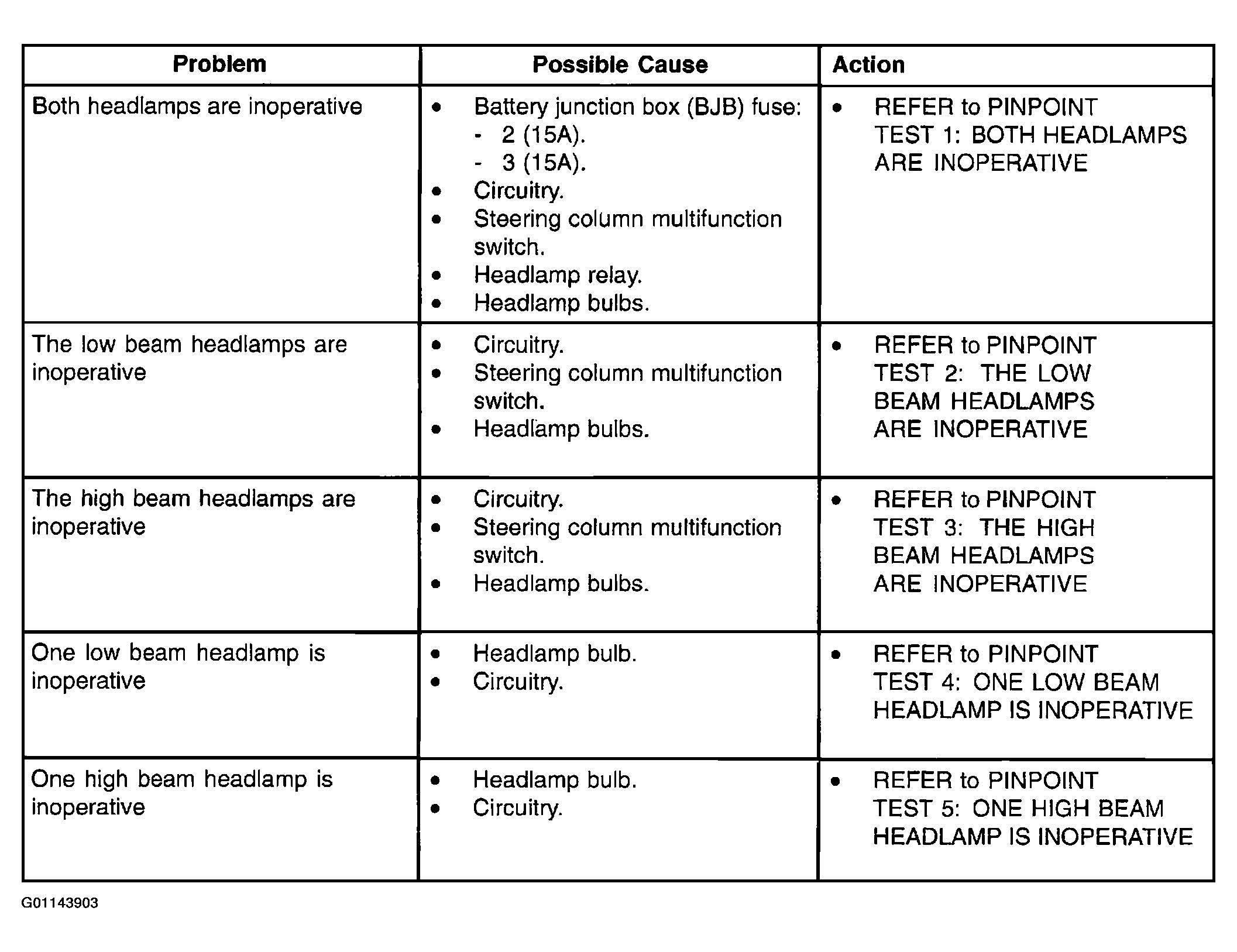

Fig 1: Troubleshooting Index - Headlamps (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

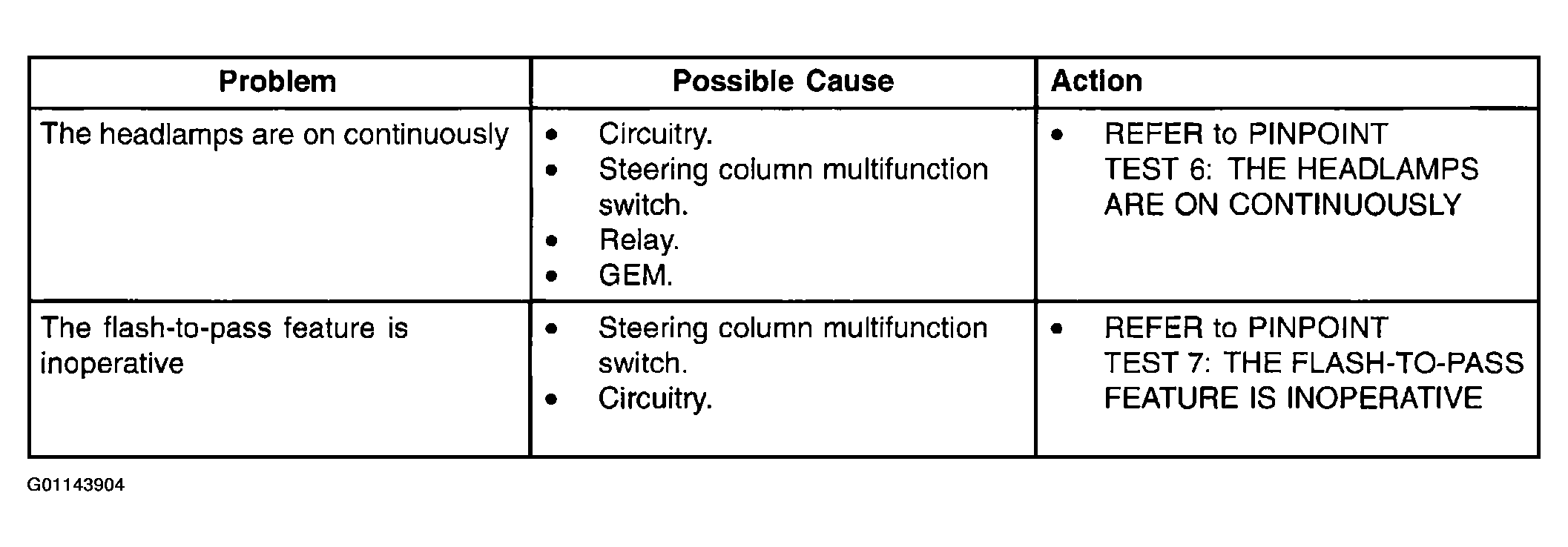

Fig 2: Troubleshooting Index - Headlamps (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
