Pinpoint Test 3: The Parking, Rear Or License Lamps Are On Continuously

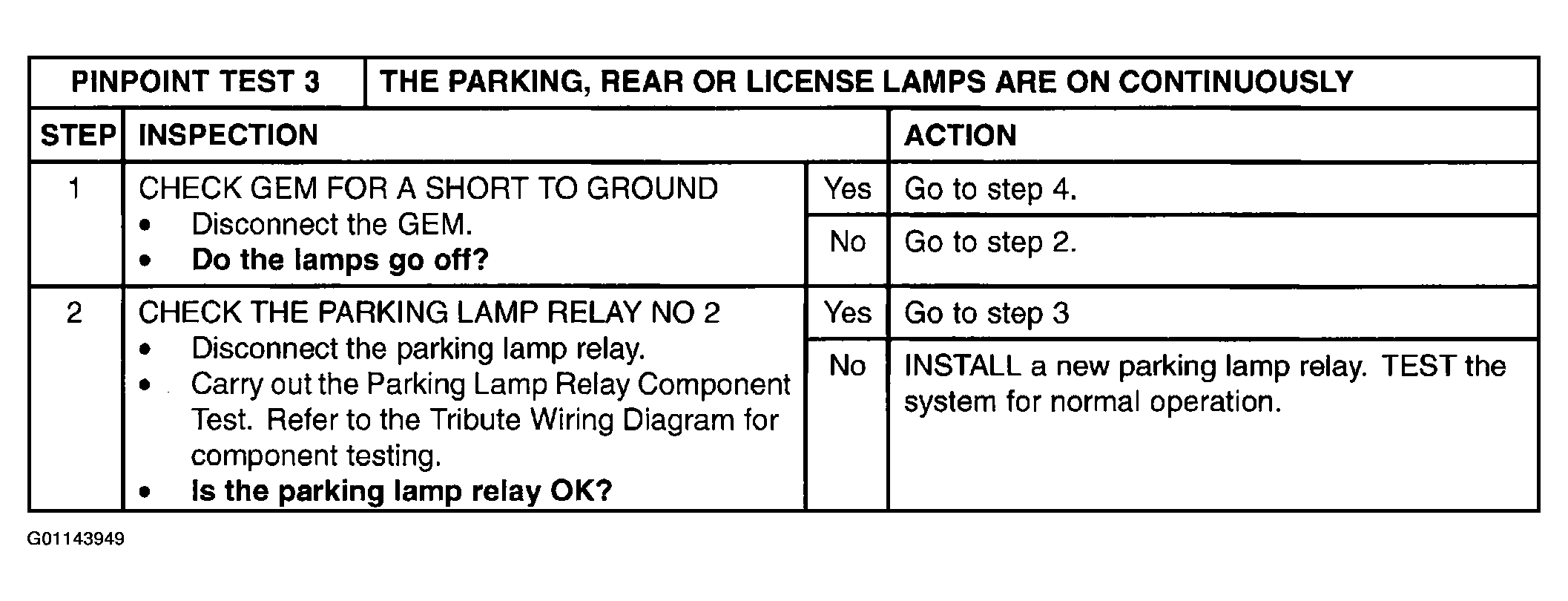

Fig 1: Pinpoint Test 3: The Parking, Rear Or License Lamps Are On Continuously (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

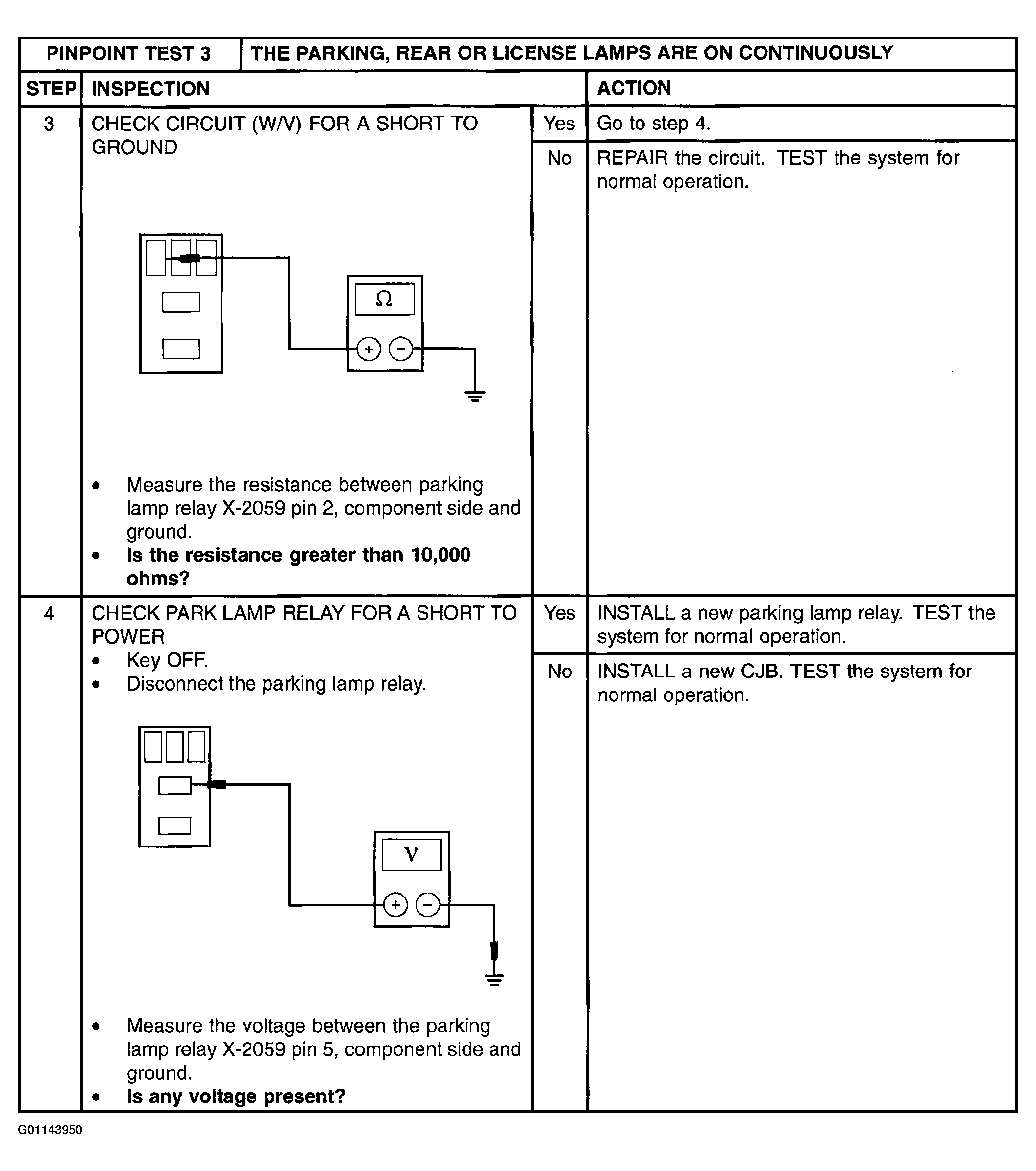

Fig 2: Pinpoint Test 3: The Parking, Rear Or License Lamps Are On Continuously (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

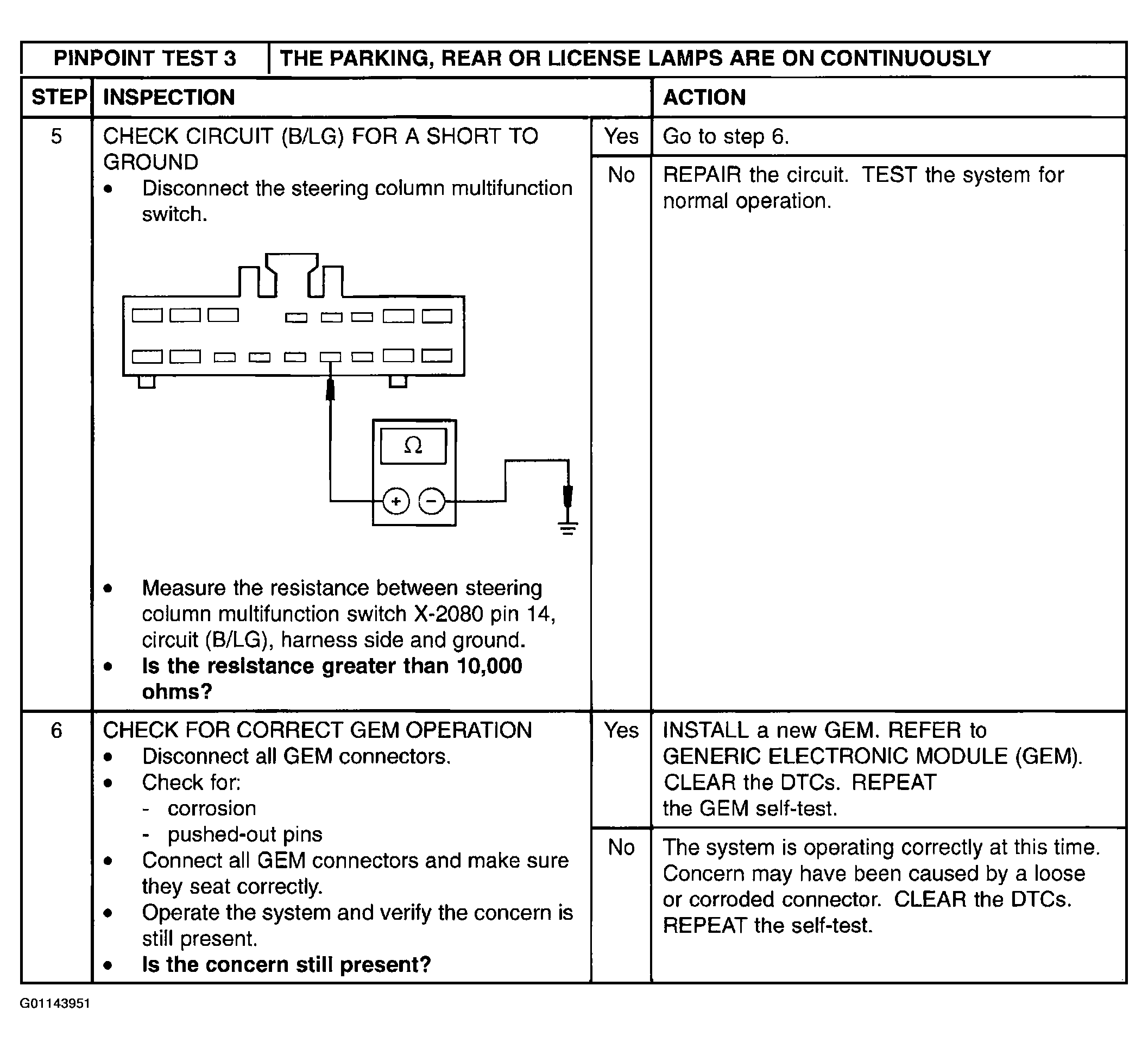

Fig 3: Pinpoint Test 3: The Parking, Rear Or License Lamps Are On Continuously (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.
