Pinpoint Test 3: The Daytime Running Lamps Are Inoperative - Low Beam Headlamps On At Full Intensity With Key On

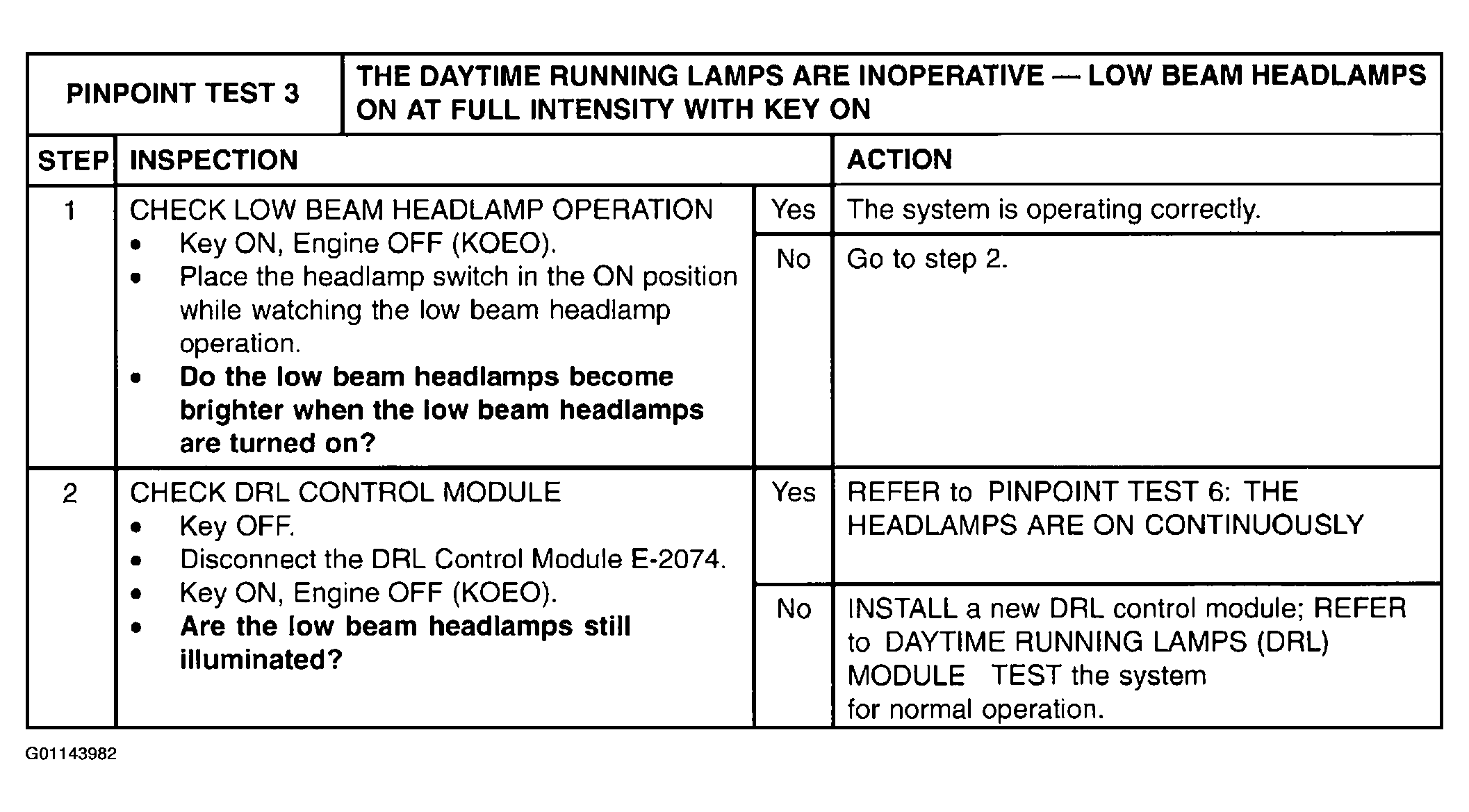

Fig 1: Pinpoint Test 3: The Daytime Running Lamps Are Inoperative - Low Beam Headlamps On At Full Intensity With Key On
G01143982Courtesy of MAZDA MOTORS CORP.
