Pinpoint Test 2: The Daytime Running Lamps Are On With The Parking Brake Set

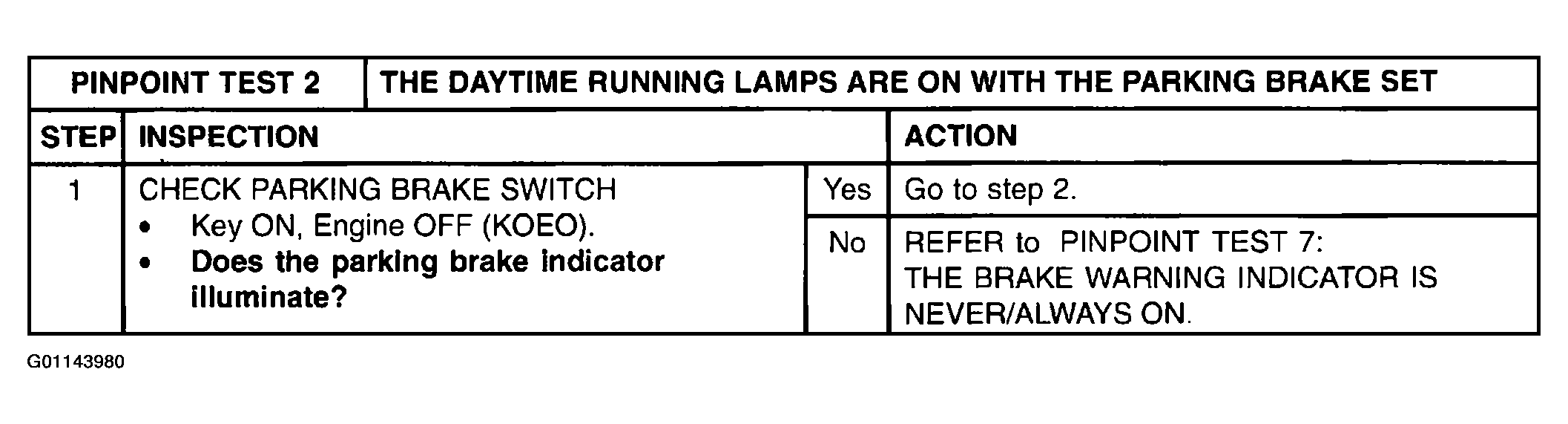

Fig 1: Pinpoint Test 2: The Daytime Running Lamps Are On With The Parking Brake Set (Step 1)
G01143980Courtesy of MAZDA MOTORS CORP.

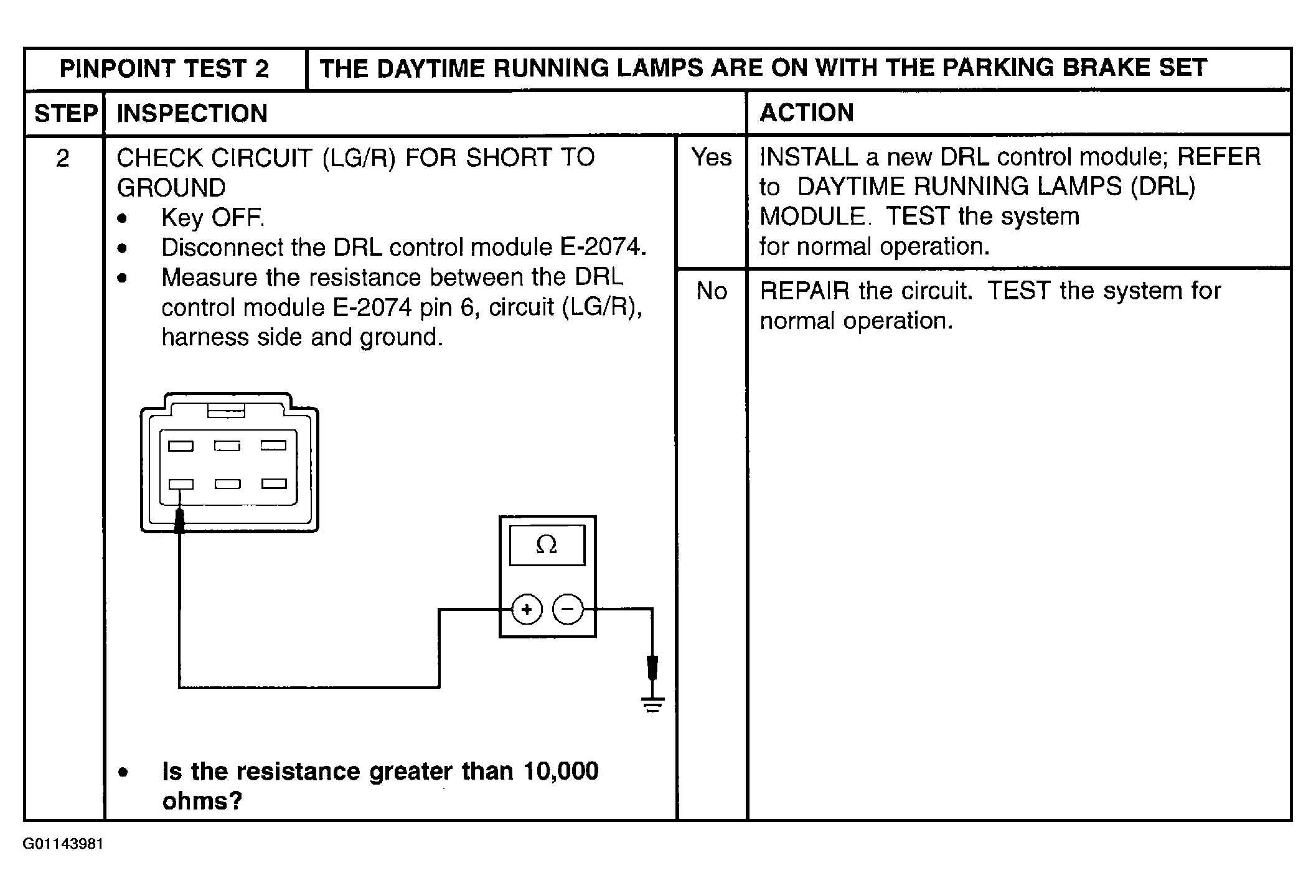

Fig 2: Pinpoint Test 2: The Daytime Running Lamps Are On With The Parking Brake Set (Step 2)
G01143981Courtesy of MAZDA MOTORS CORP.
