Pinpoint Test 1: The Backup Lamps Are Inoperative

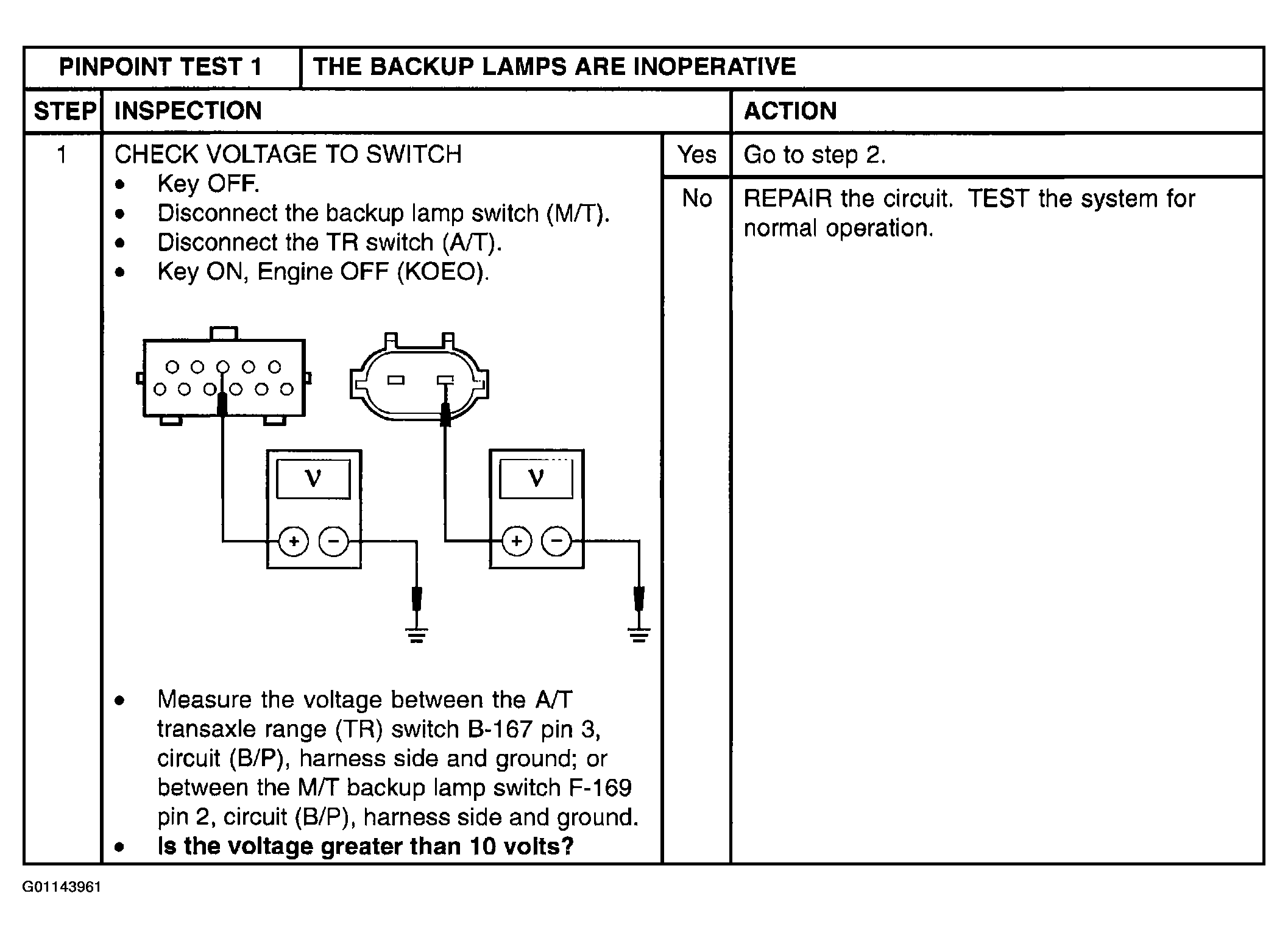

Fig 1: Pinpoint Test 1: The Backup Lamps Are Inoperative (Step 1)

Courtesy of MAZDA MOTORS CORP.

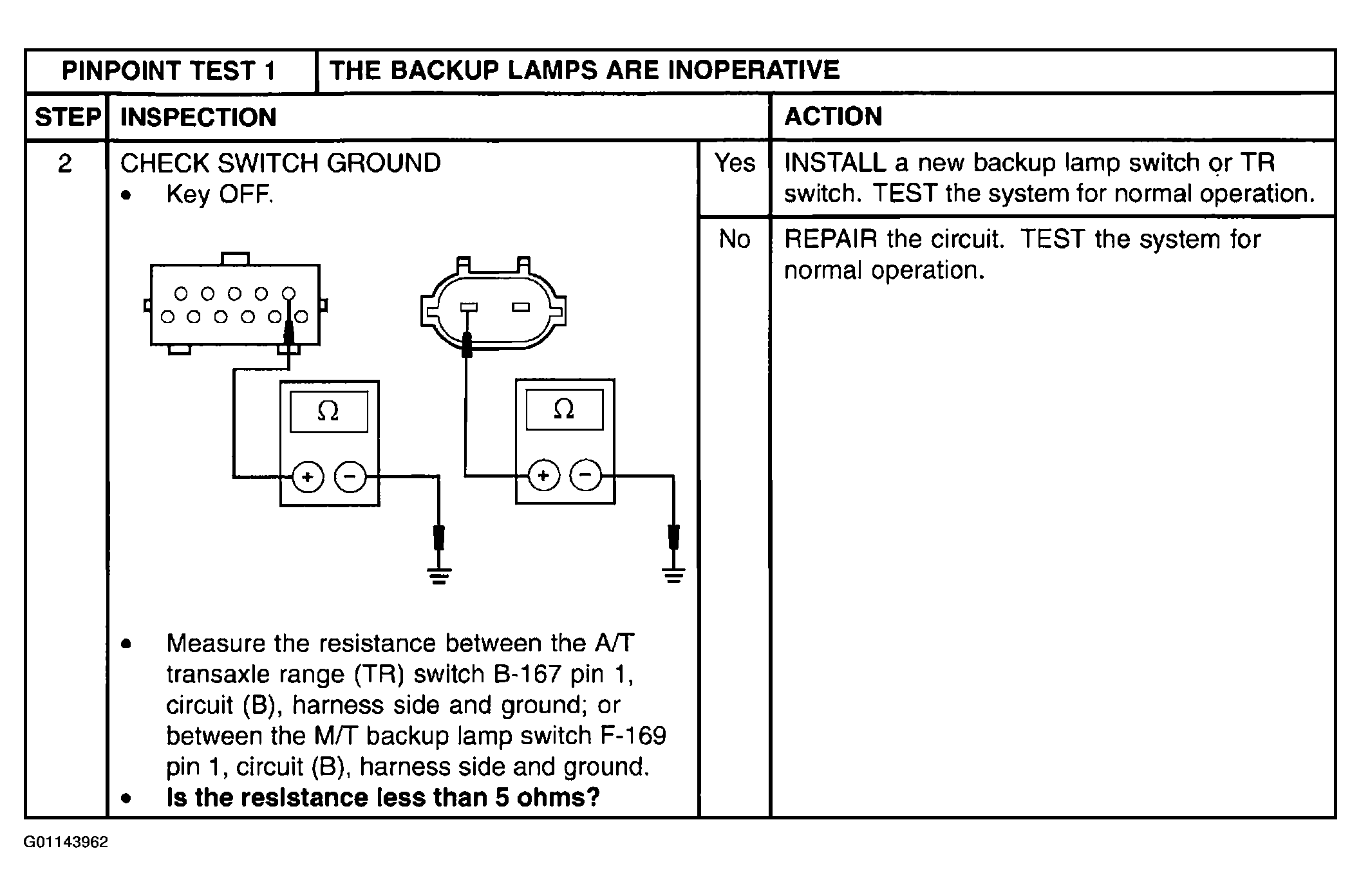

Fig 2: Pinpoint Test 1: The Backup Lamps Are Inoperative (Step 2)

Courtesy of MAZDA MOTORS CORP.
