Removal and Installation

WARNING:

The halogen headlamp bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb carefully. Grasp the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

CAUTION:

The headlamp bulb should not be removed from the headlamp until just before a new bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp where they can settle on the lens and reflector. Never turn on the headlamps with the bulb removed.

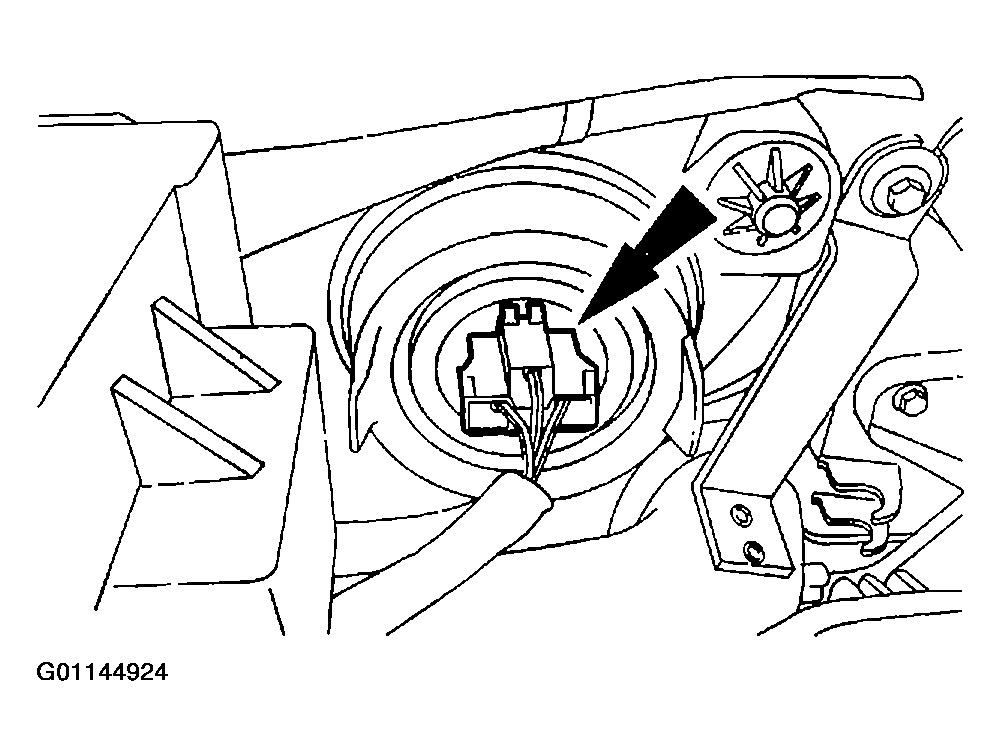

Fig 1: Disconnecting Headlamp Electrical Connector

G01144924

Courtesy of MAZDA MOTORS CORP.

NOTE:

Make sure that the headlamp switch and the ignition switch are in the OFF position.

Disconnect the headlamp electrical connector.

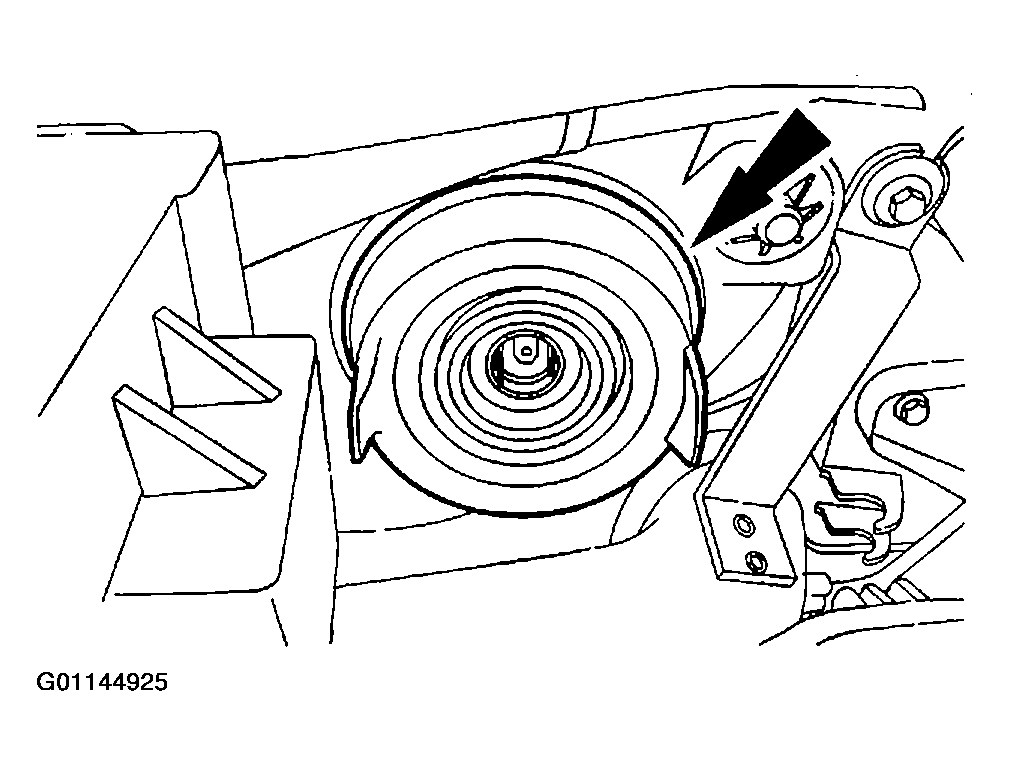

Fig 2: Removing Rubber Boot
Courtesy of MAZDA MOTORS CORP.
Remove the rubber boot.

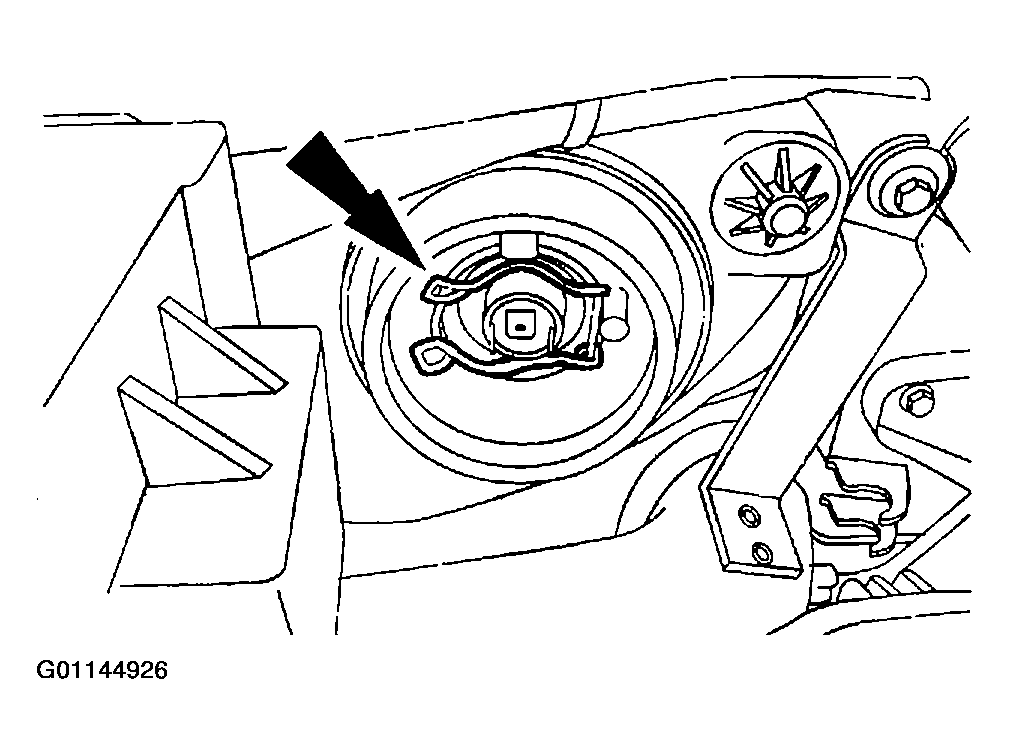

Fig 3: Locating Retainer Clip
Courtesy of MAZDA MOTORS CORP.
Depress the retainer clip and position aside.

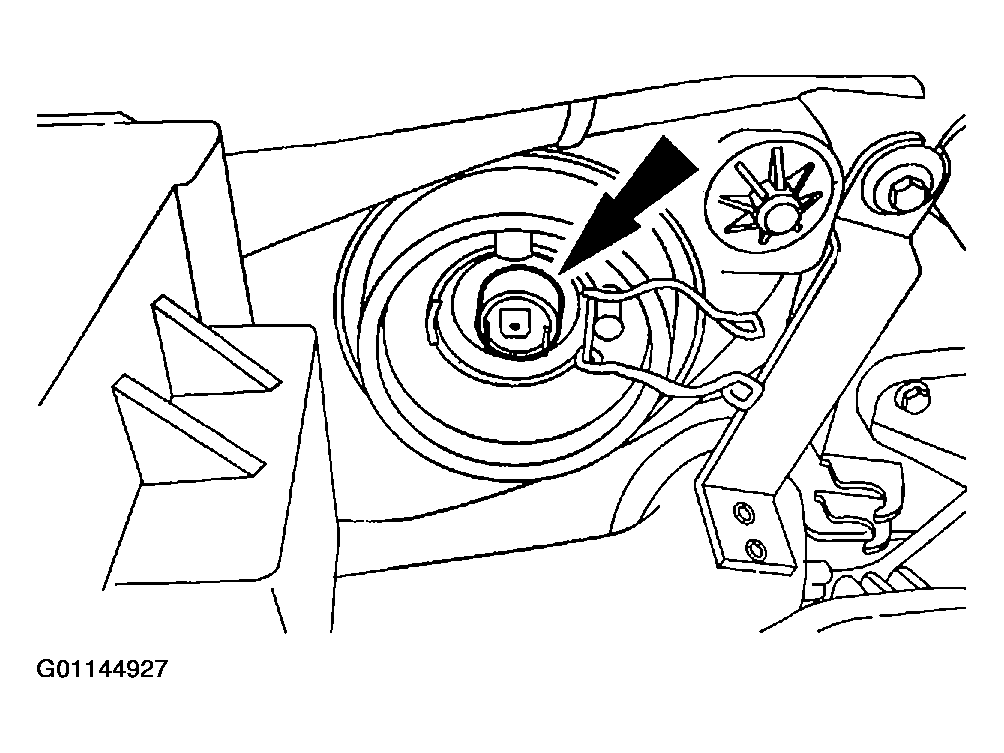

Fig 4: Removing Bulb
Courtesy of MAZDA MOTORS CORP.
Remove the bulb.
To install, reverse the removal procedure.
