Removal and Installation

Remove the tire and wheel.

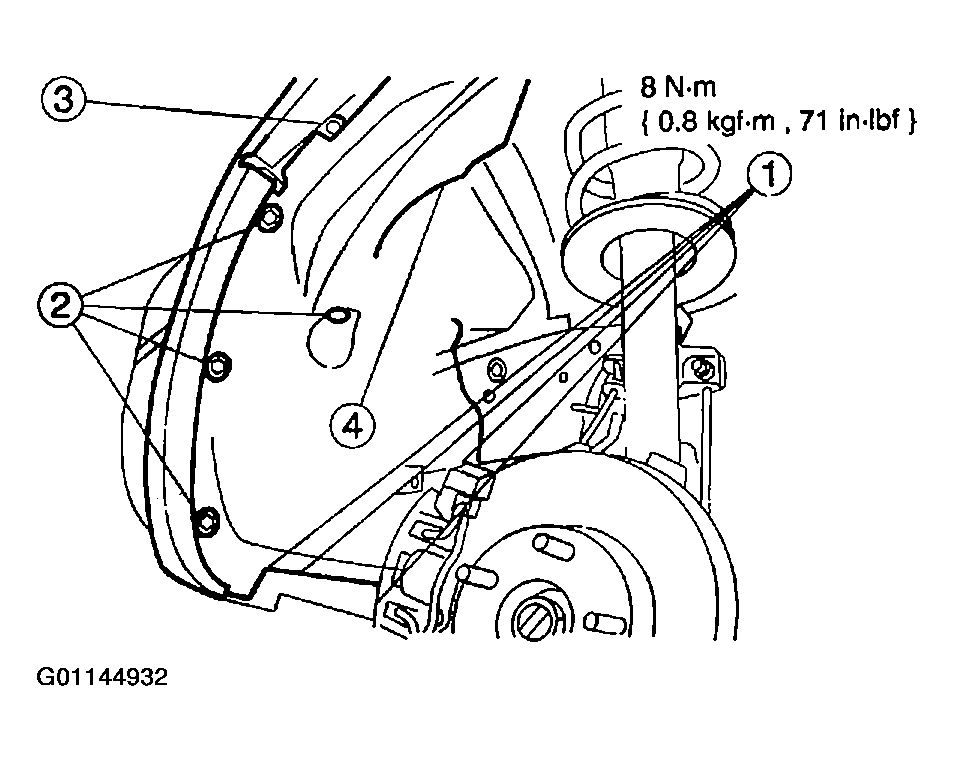

Fig 1: Positioning Inner Fender Well Aside
Courtesy of MAZDA MOTORS CORP.
Position the inner fender well aside.
1. Remove the bolts.
2. Remove the pin-type retainers.
3. Remove the screw.
4. Position the inner fender well aside.

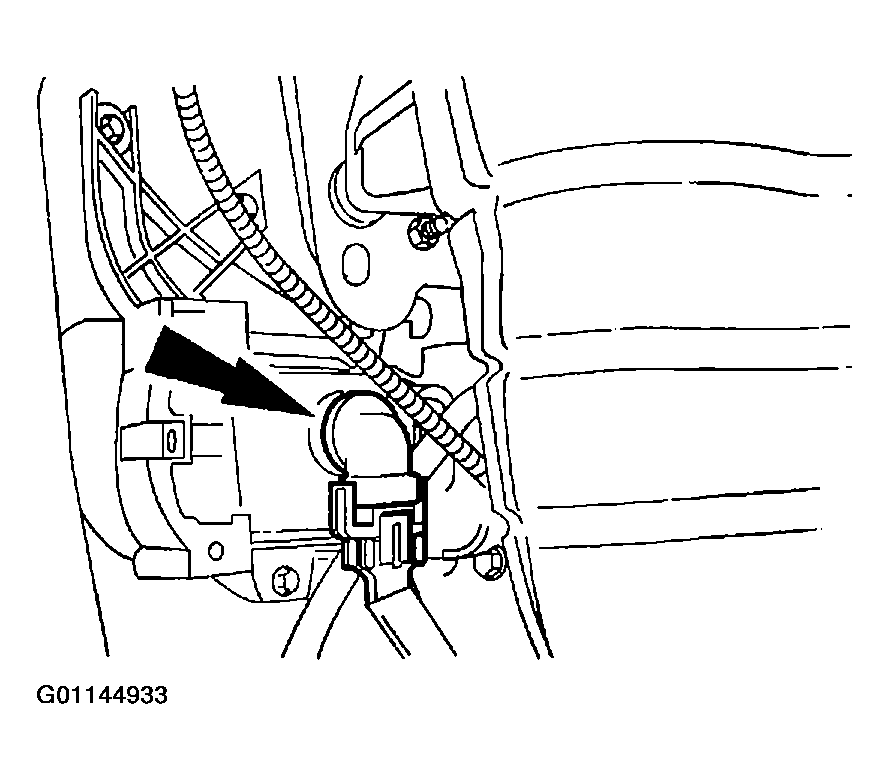

  Fig 2: Disconnecting Electrical Bulb Assembly
  Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical bulb assembly and position aside.

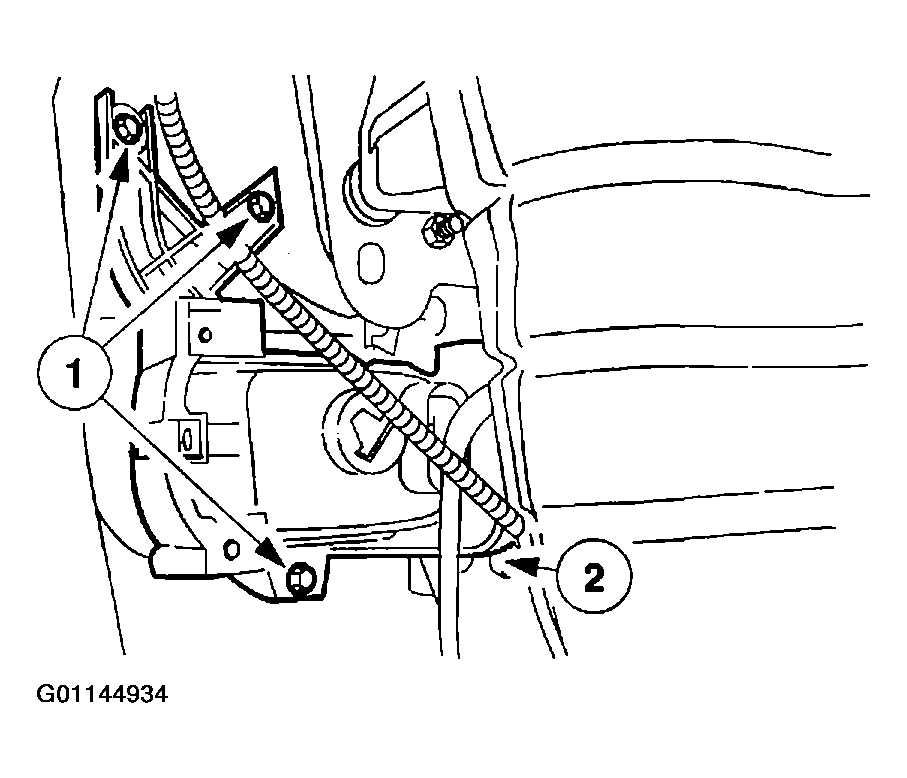

Fig 3: Removing Fog Lamp Assembly
Courtesy of MAZDA MOTORS CORP.
Remove the fog lamp assembly.
1. Remove the bolts.
2. Remove the fog lamp assembly.

  Fig 4: Removing Fog Lamp
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - This step may not be necessary if the fog lamp comes with bracket.
Remove the fog lamp from the fog lamp bracket.
1. Remove the adjusting screw and spring.
2. Squeeze the top and bottom of the fog lamp bracket.
3. Remove the fog lamp from the fog lamp bracket.
To install, reverse the removal procedure.
