Removal and Installation

WARNING:

The halogen fog lamp bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb carefully. Grasp the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

CAUTION:

The fog lamp bulb should not be removed from the fog lamp until just before a new bulb is installed. Removing the bulb for an extended period of time may affect fog lamp bulb performance. Contaminants may enter the fog lamp where they can settle on the lens and reflector. Never turn on the fog lamps with the bulb removed.

Remove the wheel and tire.

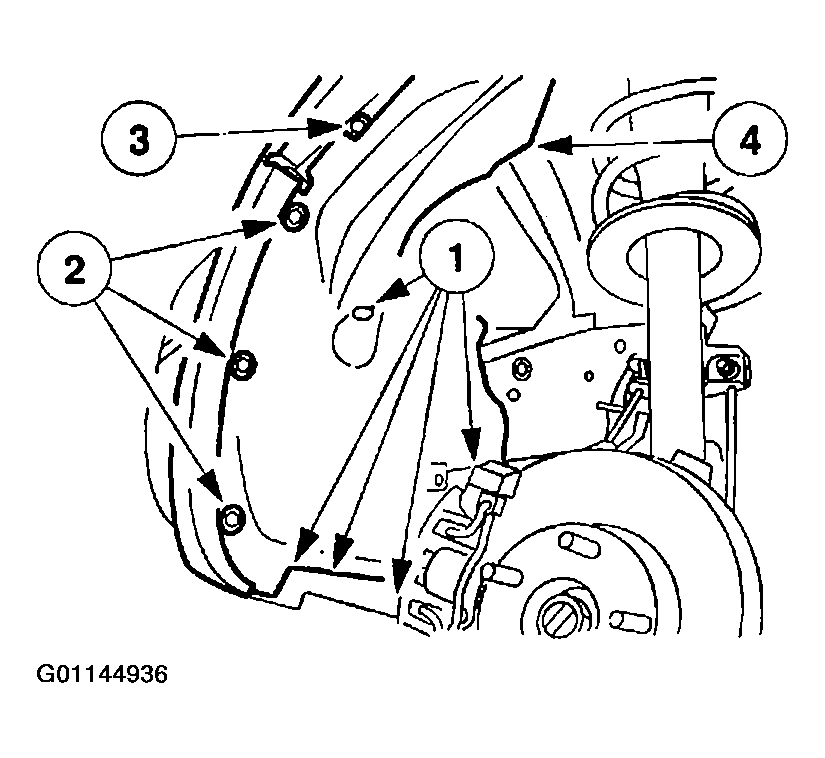

Fig 1: Positioning Inner Fender Well Aside
Courtesy of MAZDA MOTORS CORP.
Position the inner fender well aside.
1. Remove the bolts.
2. Remove the pin-type retainers.
3. Remove the screw.
4. Position the inner fender well aside.

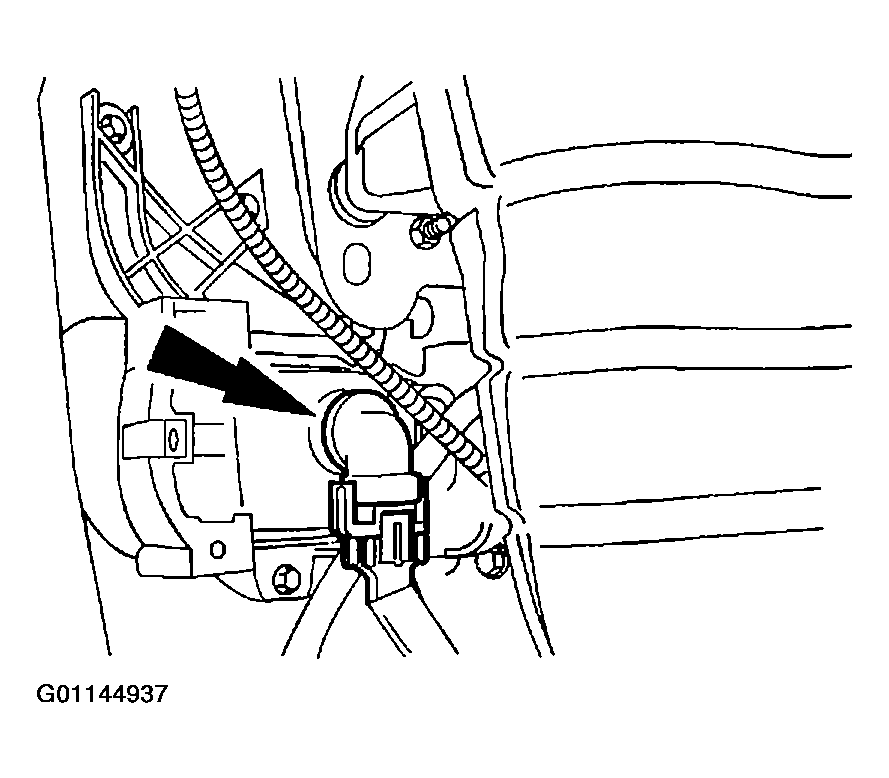

  Fig 2: Removing Lamp Socket
  Courtesy of MAZDA MOTORS CORP.
Remove the lamp socket from the lamp assembly.
1. Disconnect the electrical connector.

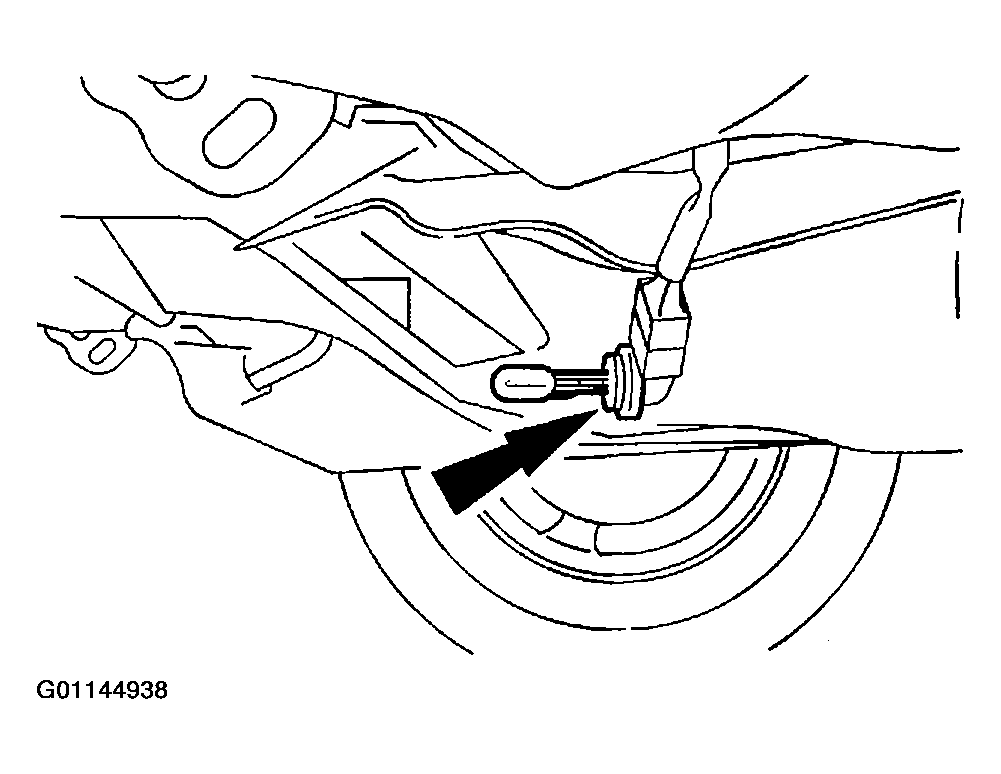

  Fig 3: Disconnecting Bulb
  Courtesy of MAZDA MOTORS CORP.
Disconnect the bulb from the electrical connector.
To install, reverse the removal procedure.
