Brake Pedal Position (BPP) Switch: Installation

NOTE:

• Initial installation of brake pedal position (BPP) switch allows for one adjustment. If additional adjustments are necessary, install a new switch.

Fig 1: Rotating Lock Knob

Courtesy of MAZDA MOTORS CORP.

1. To unlock, rotate the lock knob counterclockwise to the stop.
2. With the engine running, fully depress and hold the brake pedal.

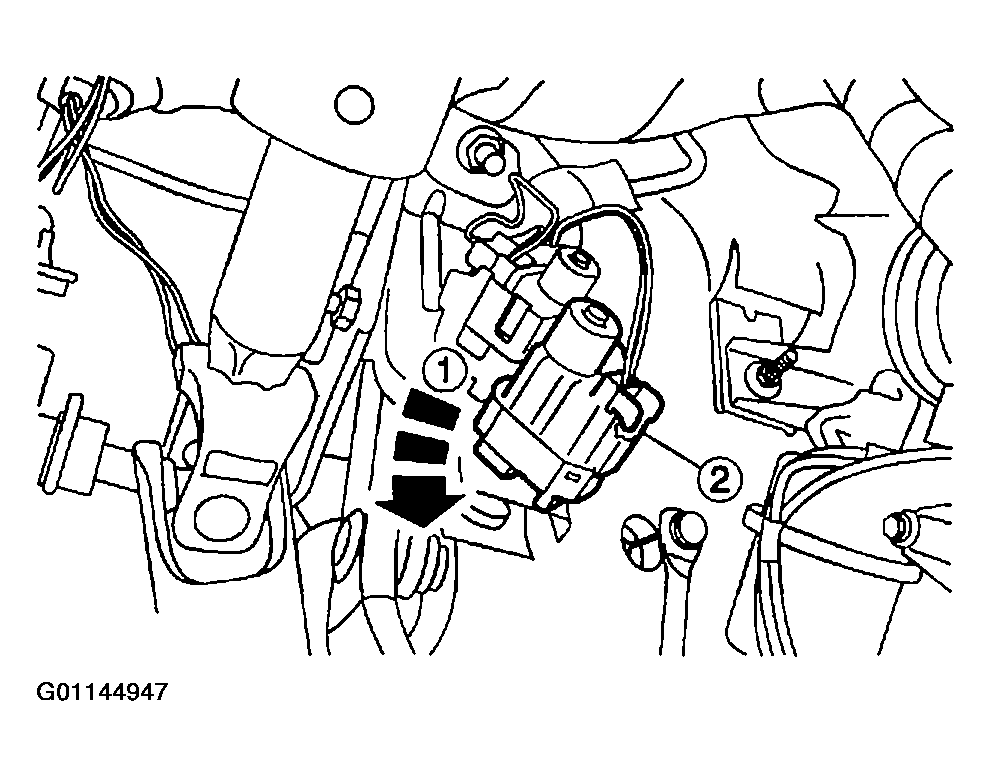

   Fig 2: Installing Brake Pedal Position (BPP) Switch

   Courtesy of MAZDA MOTORS CORP.
3. Install the brake pedal position (BPP) switch.
   1. Position the BPP switch in the bracket and rotate counterclockwise.
   2. Connect the electrical connector.
4. Slowly release the brake pedal.
