Removal and Installation

Disconnect the battery ground cable.
Position the hood latch out of the way.

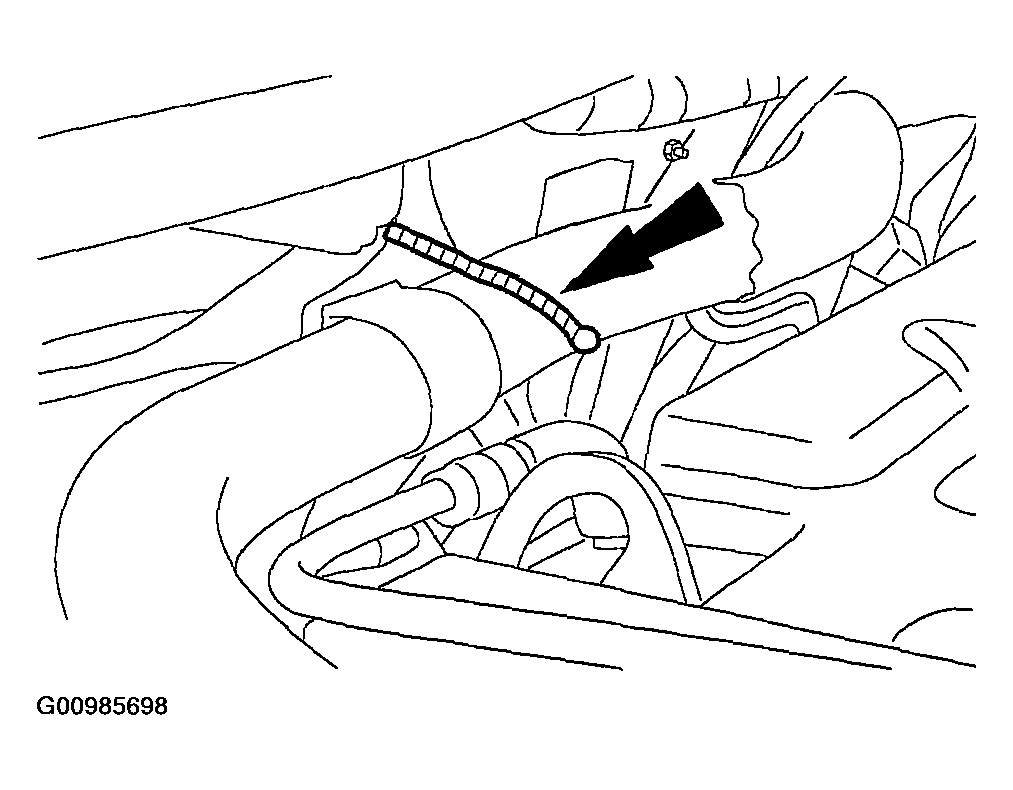

Fig 1: Locating Upper Radiator Tie Strap
Courtesy of MAZDA MOTORS CORP.
If equipped, remove the upper radiator tie strap.
Raise and support the vehicle.

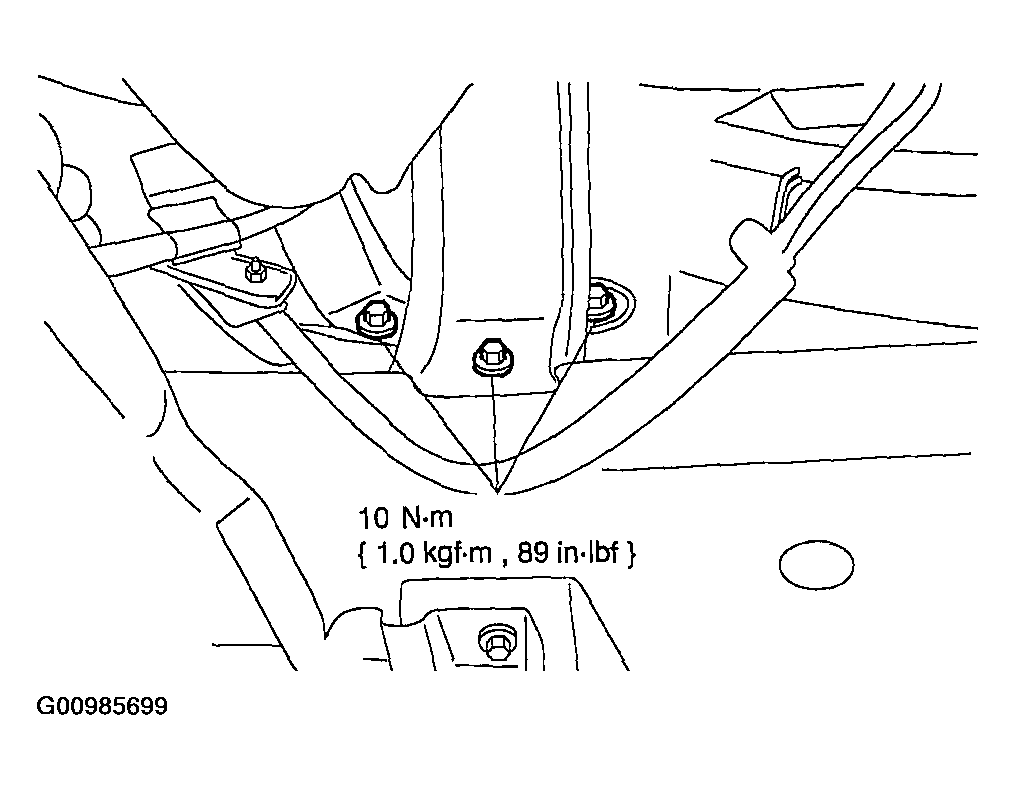

Fig 2: Locating Lower Center Support Bolts & Fan Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the lower center support bolt and the lower fan bolts.
Lower the vehicle.

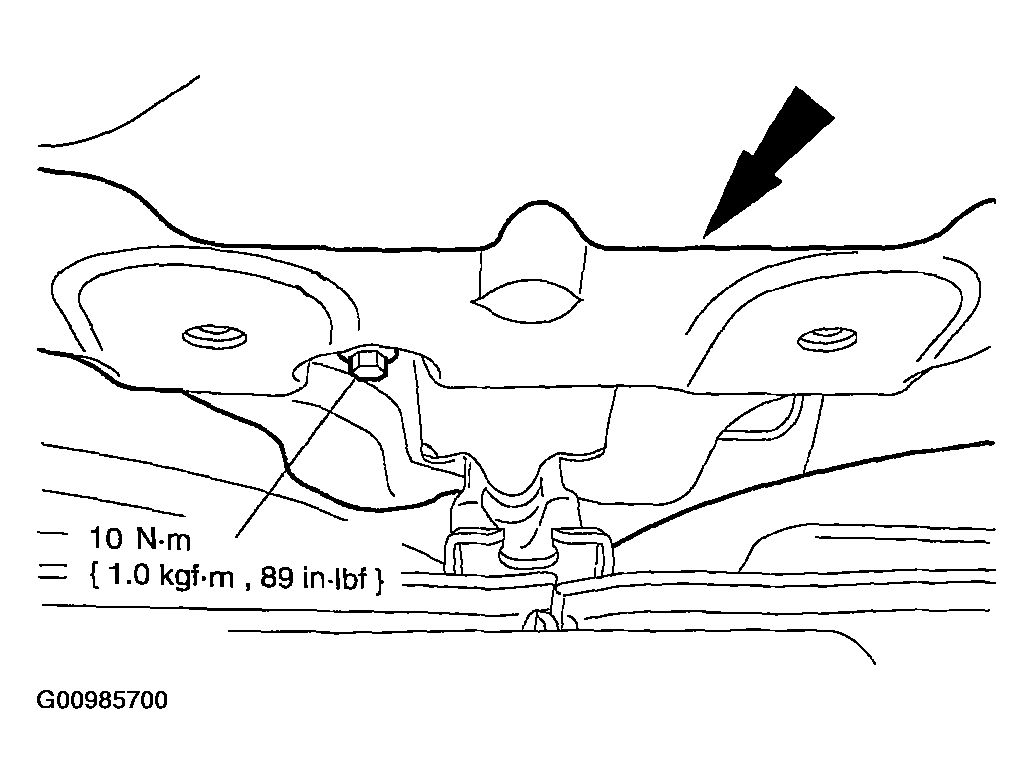

Fig 3: Locating Upper Center Support Bolt & Upper Center Support
Courtesy of MAZDA MOTORS CORP.
Remove the upper center support bolt and the upper center support.

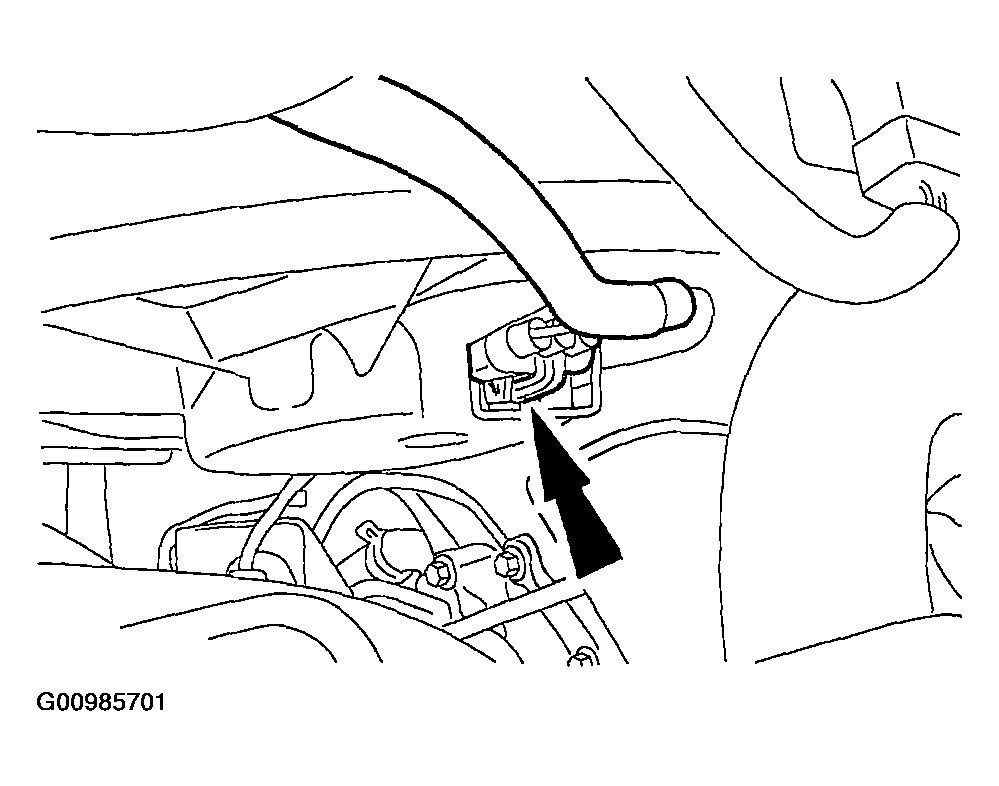

Fig 4: Locating LH Fan Electrical Connector For Disconnection
Courtesy of MAZDA MOTORS CORP.
Disconnect the LH fan electrical connector.

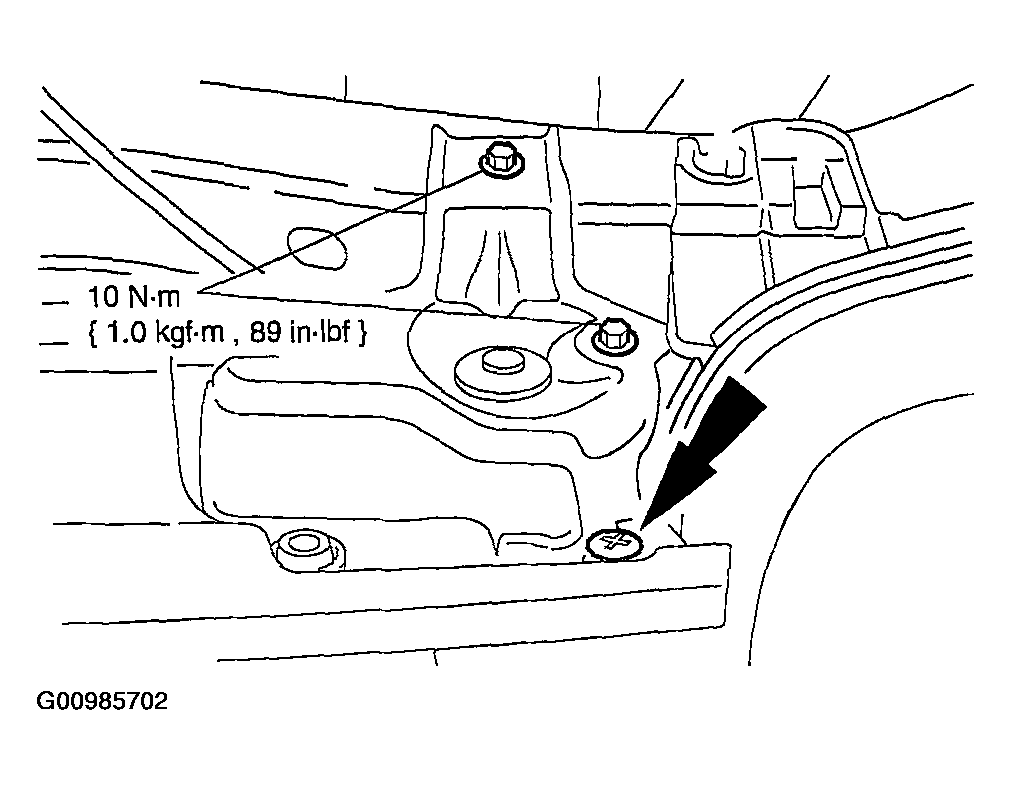

Fig 5: Locating LH & RH Upper Radiator Supports Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the LH and RH upper radiator supports.
Tilt the radiator forward for clearance.

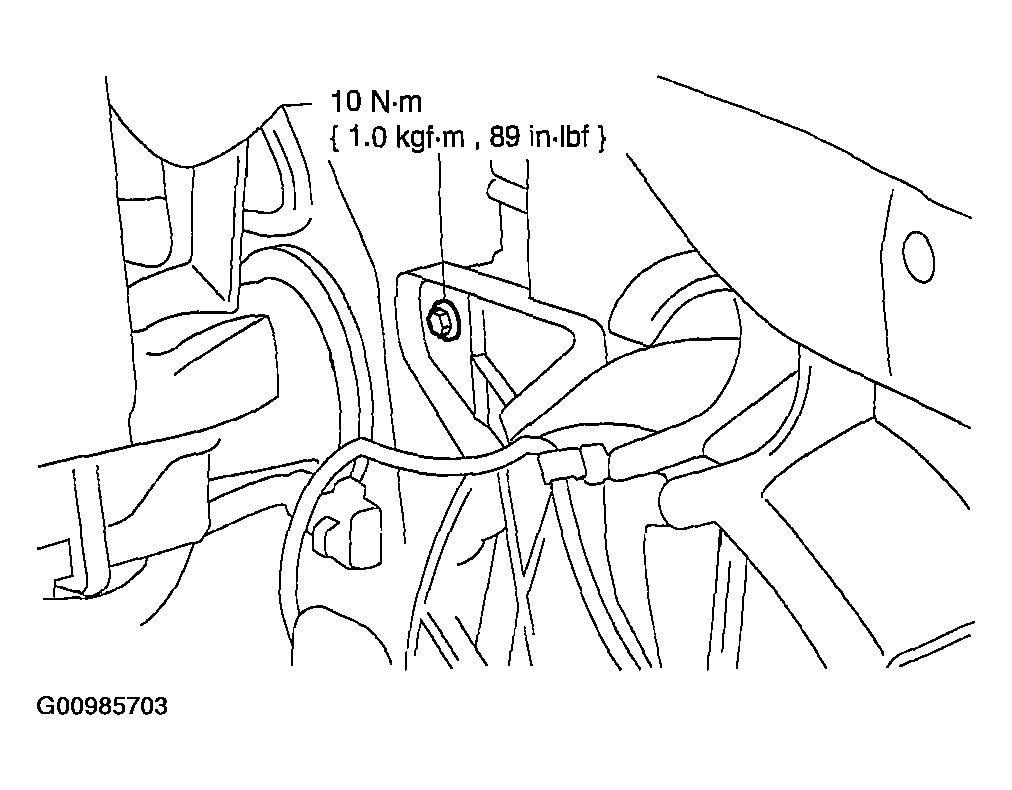

Fig 6: Locating LH Cooling Fan Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the five bolts and the LH cooling fan.

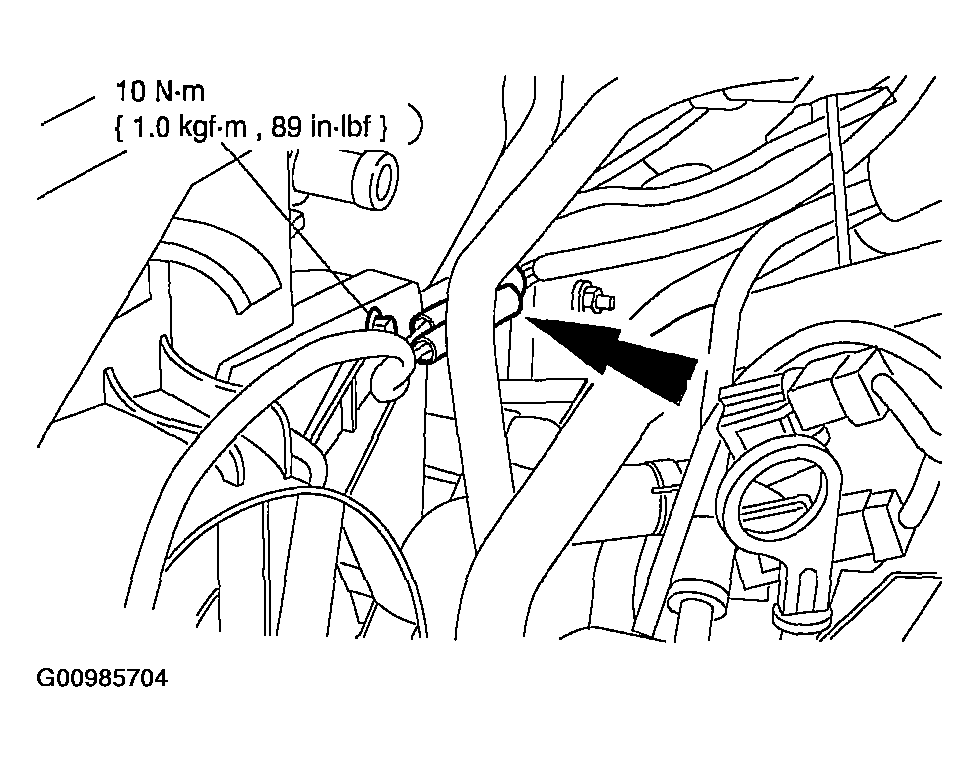

Fig 7: Locating Bolt & Electrical Connector For RH Fan
Courtesy of MAZDA MOTORS CORP.
If necessary remove the bolt and disconnect the electrical connector, remove the RH fan.
To install, reverse the removal procedure.
