Pinpoint Test 2: The Instrument Cluster Is Inoperative

CAUTION:

• Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

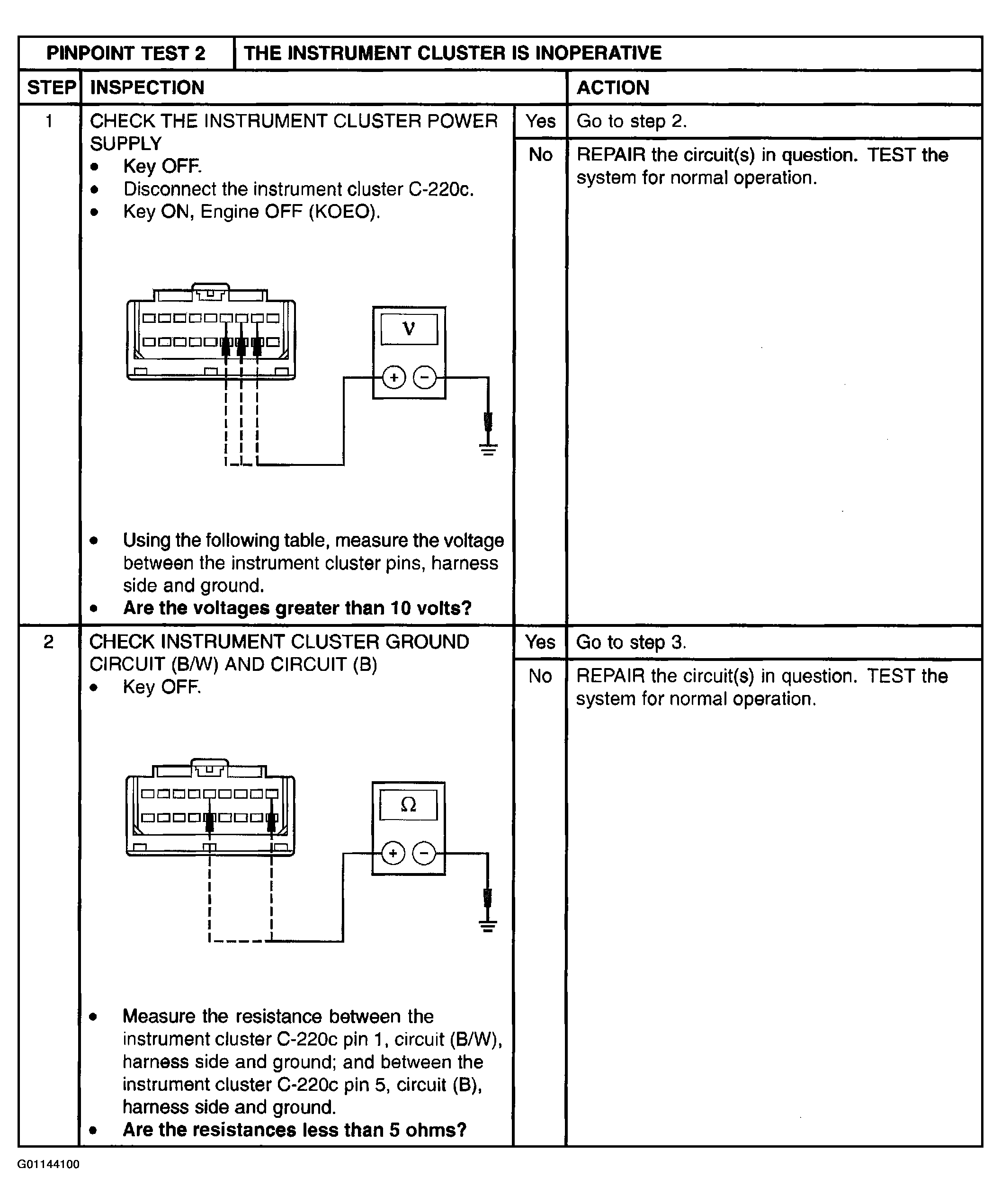

Fig 1: Pinpoint Test 2: The Instrument Cluster Is Inoperative (Steps 1 - 2)

Courtesy of MAZDA MOTORS CORP.

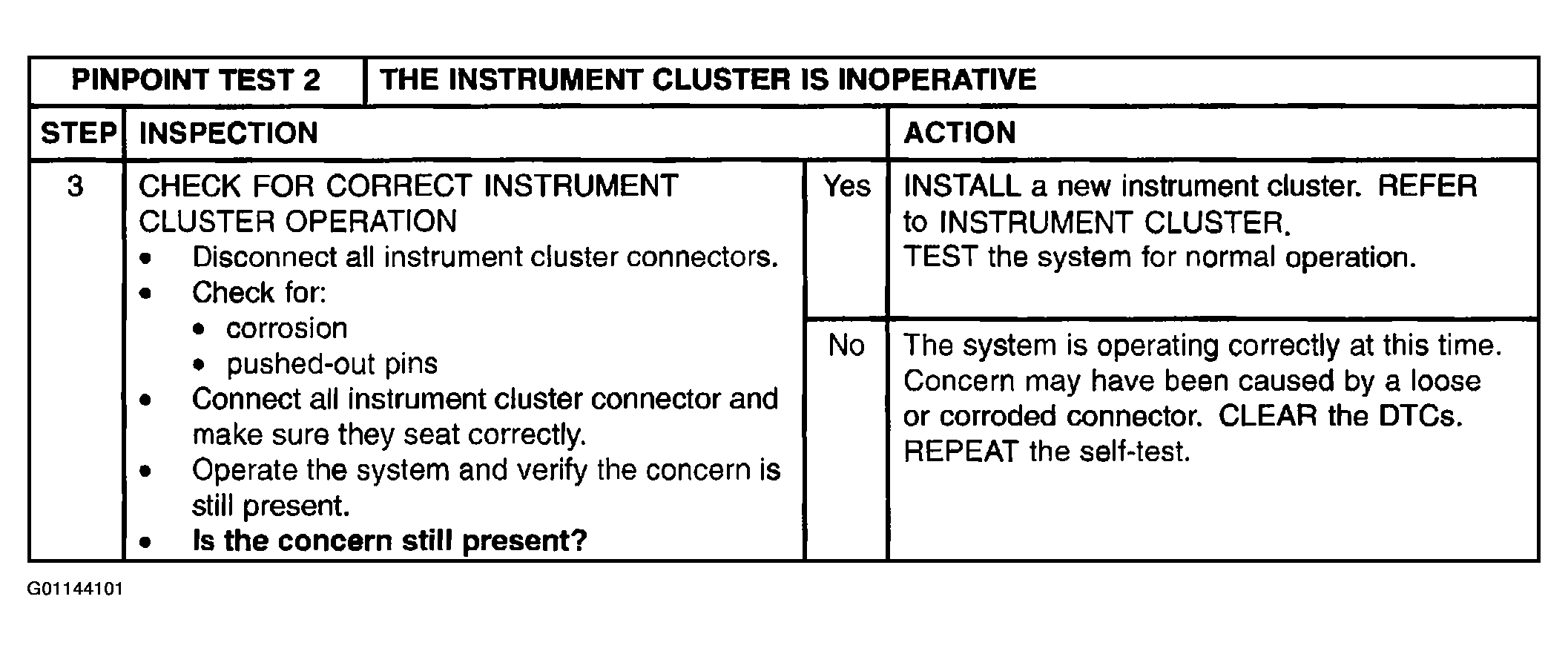

Fig 2: Pinpoint Test 2: The Instrument Cluster Is Inoperative (Step 3)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Pinpoint Test 2: IC Connector Identification

Courtesy of MAZDA MOTORS CORP.
