Pinpoint Test 1: The Horn Does Not Sound

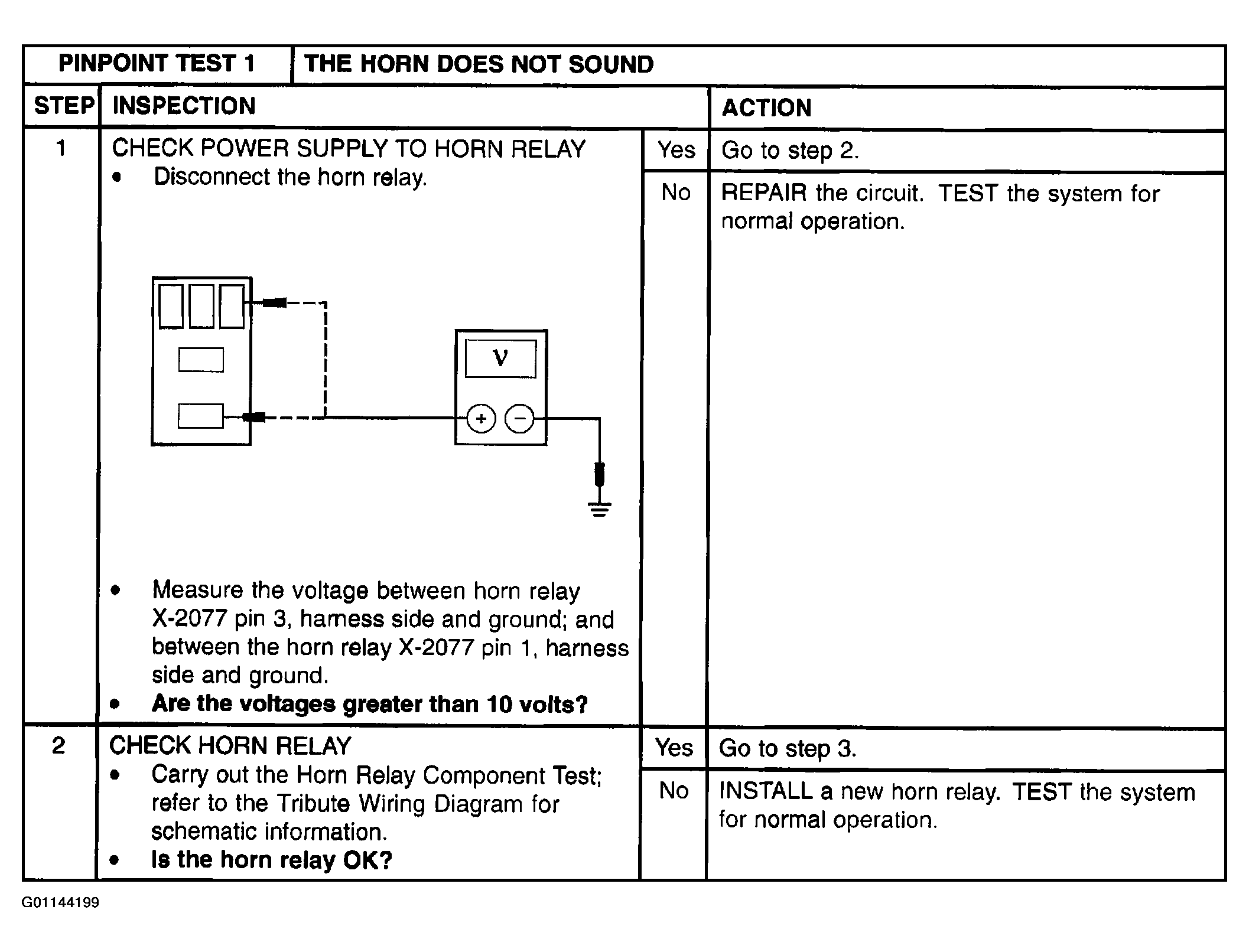

Fig 1: Pinpoint Test 1: The Horn Does Not Sound (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

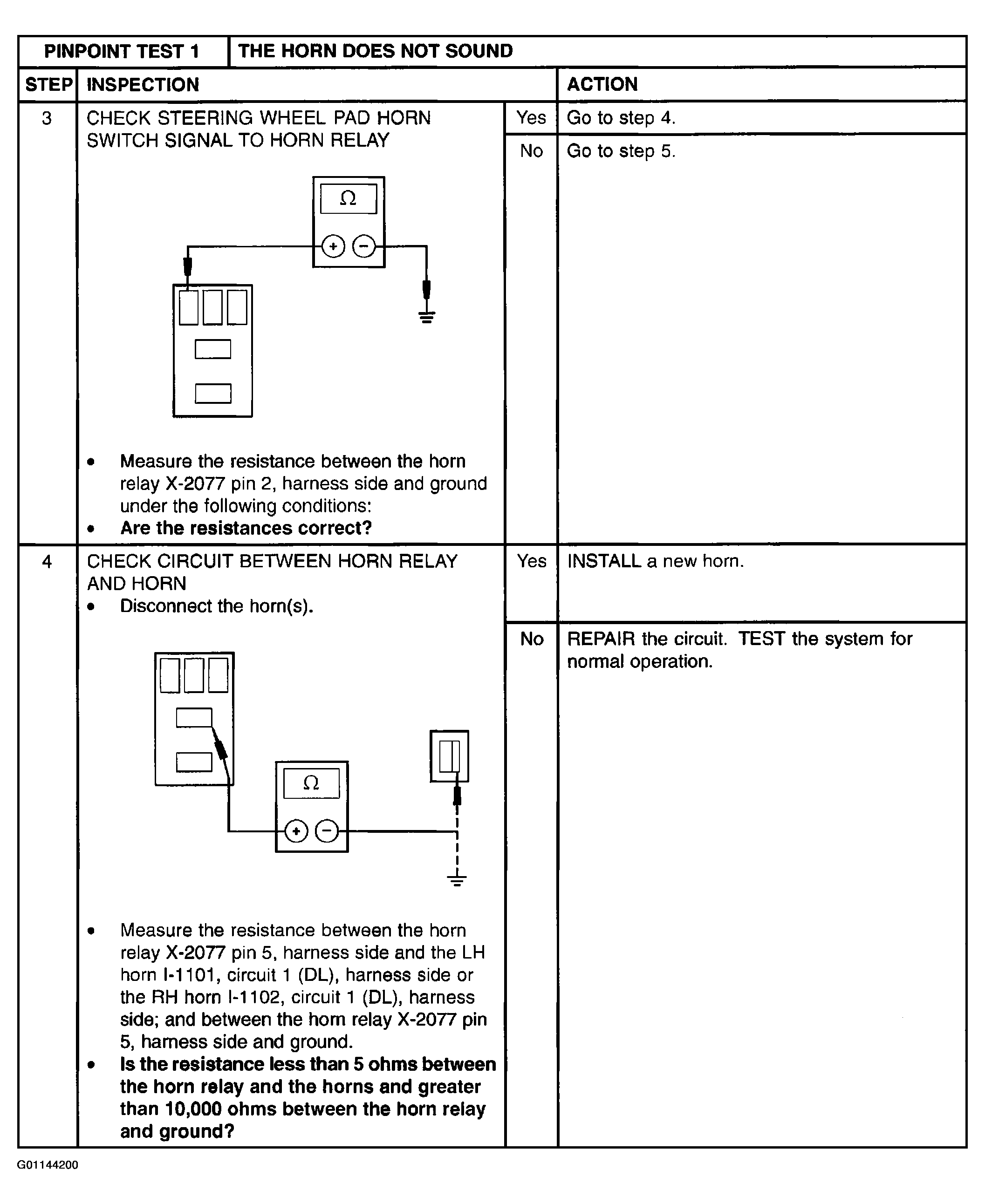

Fig 2: Pinpoint Test 1: The Horn Does Not Sound (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

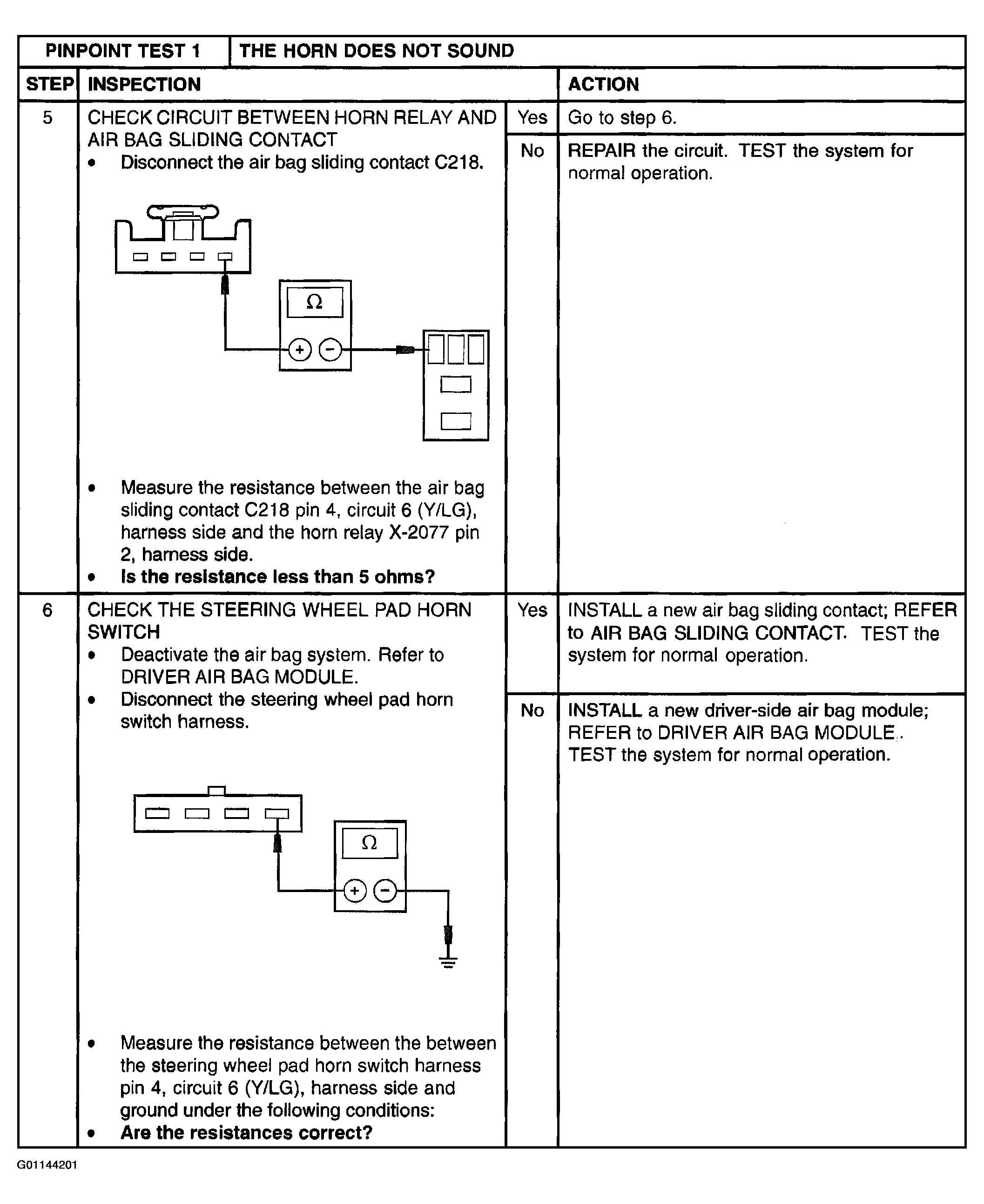

Fig 3: Pinpoint Test 1: The Horn Does Not Sound (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Checking Resistance On Horn

Courtesy of MAZDA MOTORS CORP.
