Removal & Installation

NOTE: Numbers in parenthesis refer to numbers in illustration.
  1. Remove the parking brake control. See PARKING BRAKE CONTROL  .
  2. Remove the two bolts and the floor console bracket. See Fig 1 .
  3. Raise and support the vehicle.
  4. Remove the front parking brake cable. See Fig 2 . Disconnect the parking brake cable from the right side rear parking brake cable (1). Disconnect the front parking brake cable from the parking brake cable equalizer (2).
  5. To install, reverse the removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .
Fig 1: Removing Floor Console Bracket
G00303147Courtesy of MAZDA MOTORS CORP.

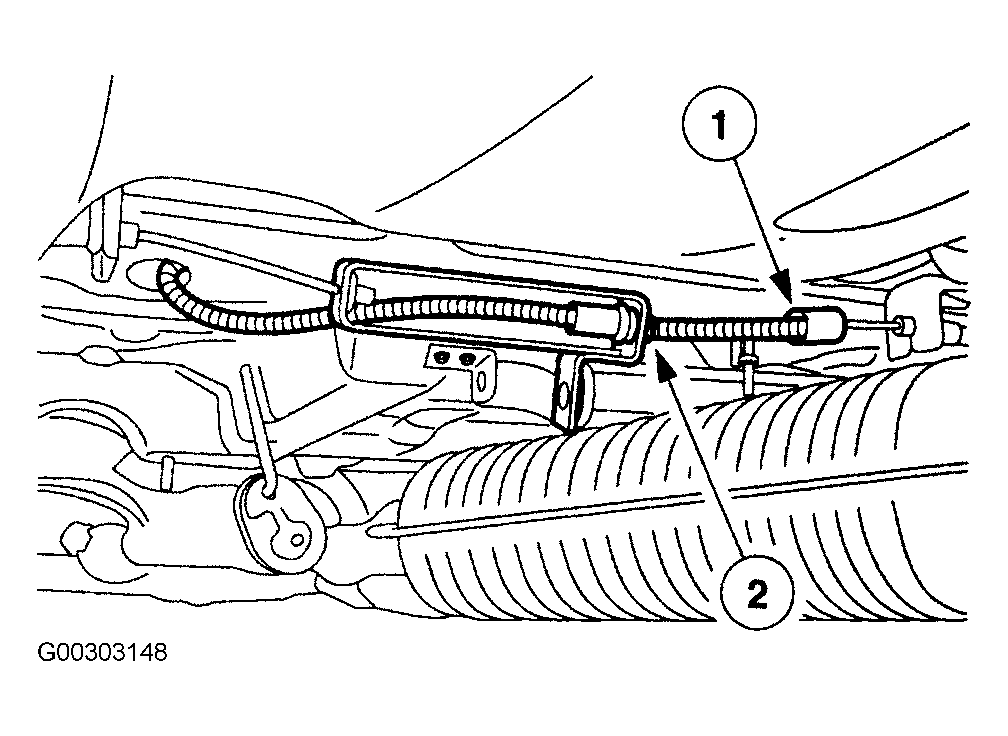

Fig 2: Removing Front Parking Brake Cable
G00303148Courtesy of MAZDA MOTORS CORP.
