Pinpoint Test 5: The Individual Trailer Lamps Is Inoperative - Parking Lamps

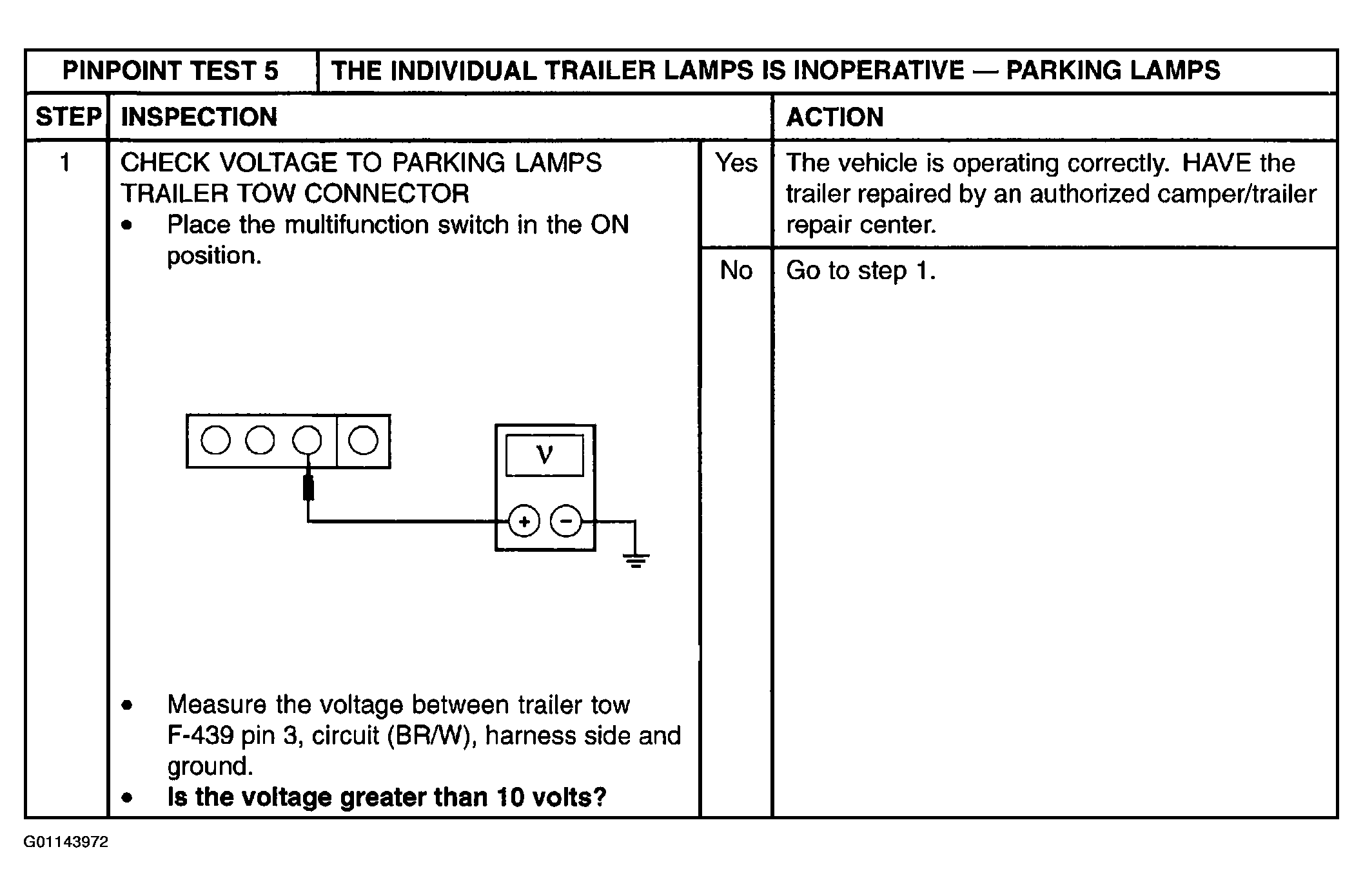

Fig 1: Pinpoint Test 5: The Individual Trailer Lamps Is Inoperative - Parking Lamps (Step 1)
G01143972Courtesy of MAZDA MOTORS CORP.

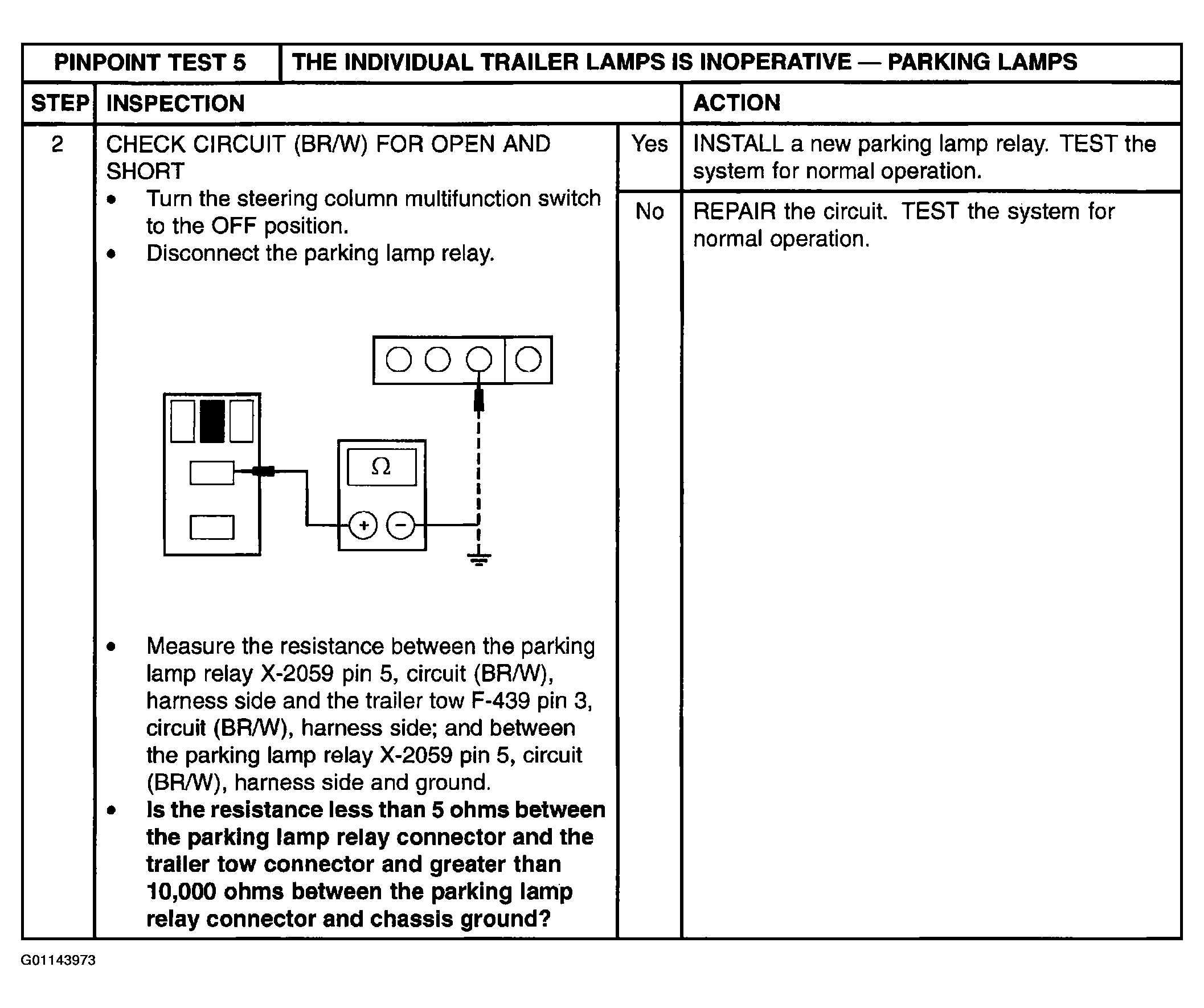

Fig 2: Pinpoint Test 5: The Individual Trailer Lamps Is Inoperative - Parking Lamps (Step 2)
G01143973Courtesy of MAZDA MOTORS CORP.
