Pinpoint Test 6: The Headlamps Are On Continuously

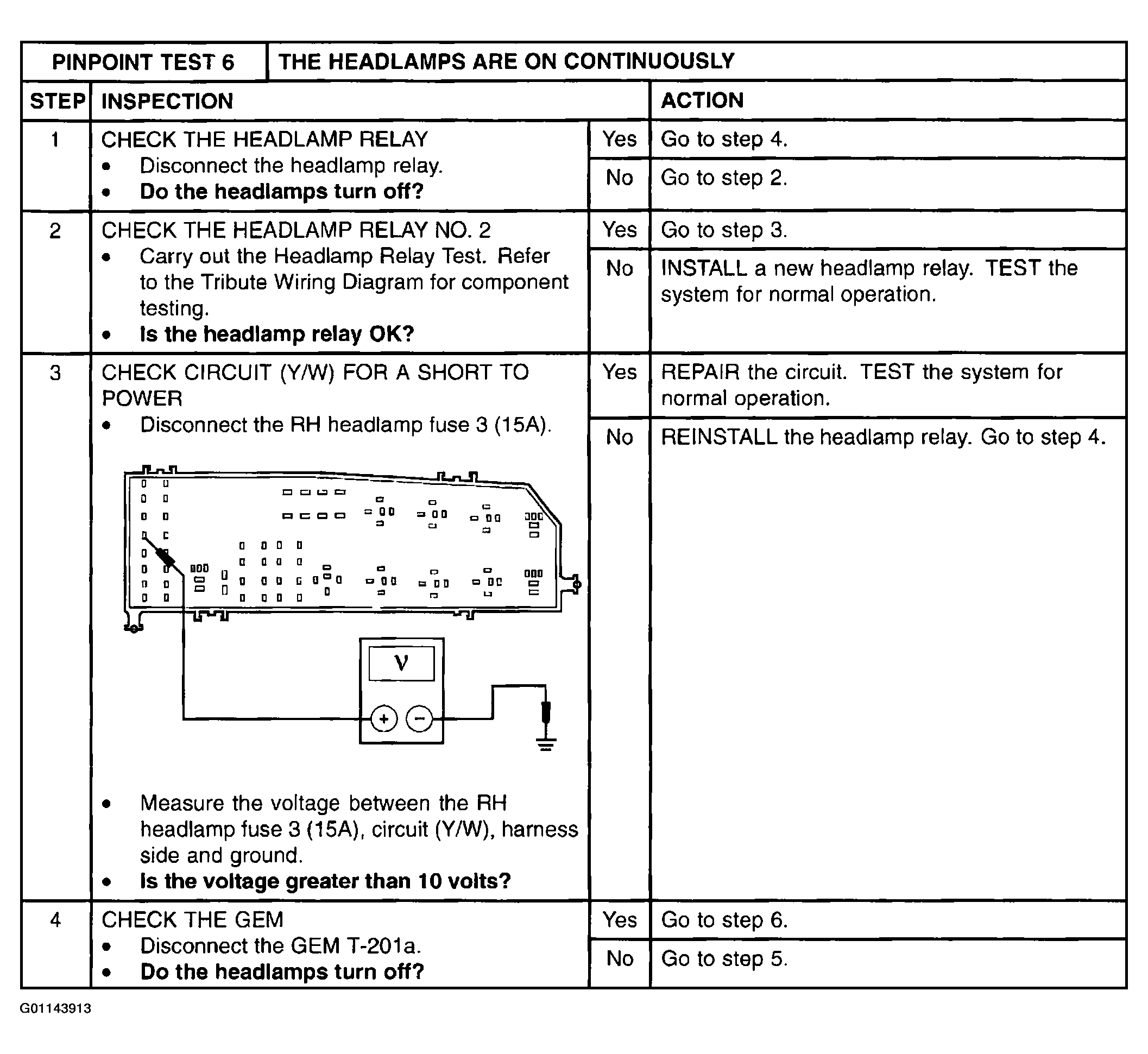

Fig 1: Pinpoint Test 6: The Headlamps Are On Continuously (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

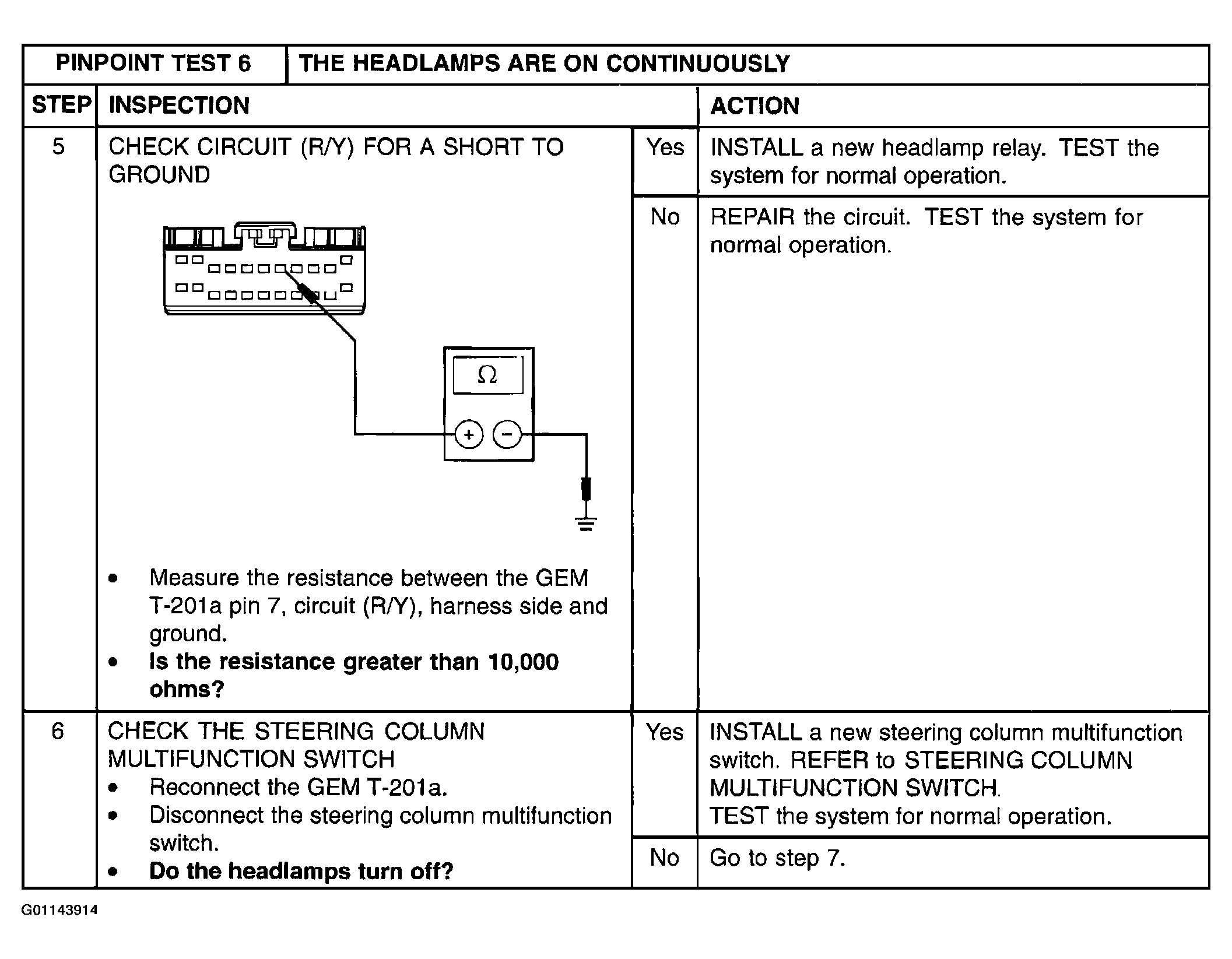

Fig 2: Pinpoint Test 6: The Headlamps Are On Continuously (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

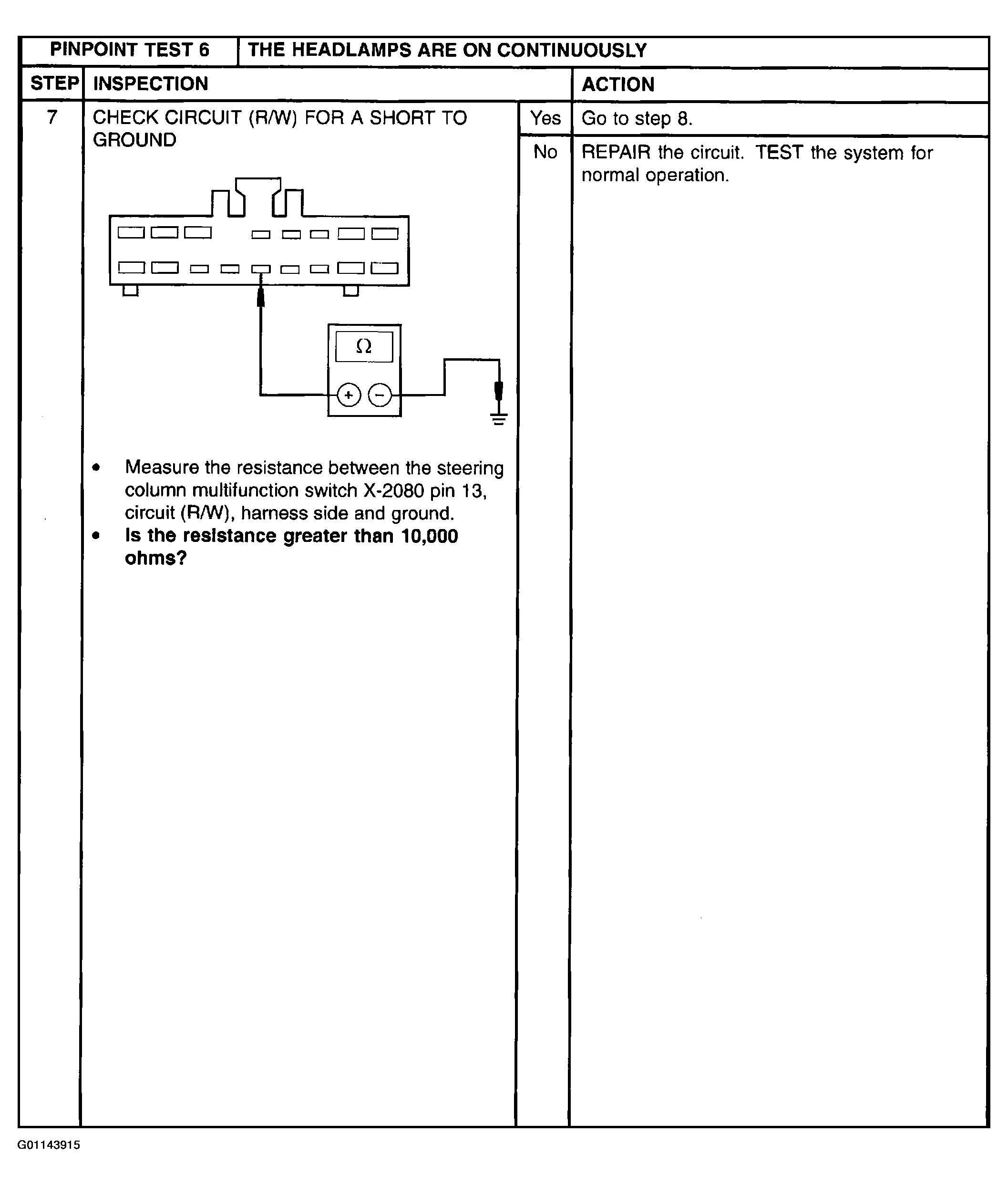

Fig 3: Pinpoint Test 6: The Headlamps Are On Continuously (Step 7)

Courtesy of MAZDA MOTORS CORP.

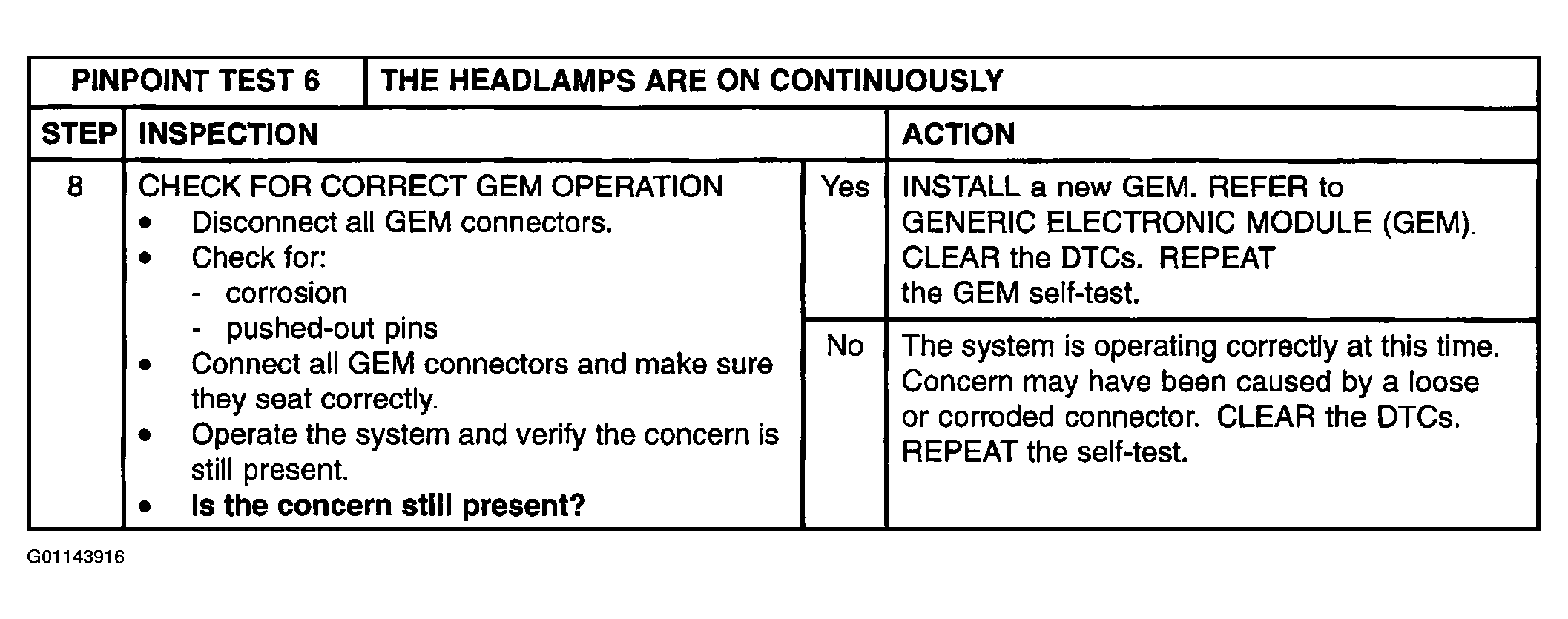

Fig 4: Pinpoint Test 6: The Headlamps Are On Continuously (Step 8)

Courtesy of MAZDA MOTORS CORP.
