Pinpoint Test 5: One High Beam Headlamp Is Inoperative

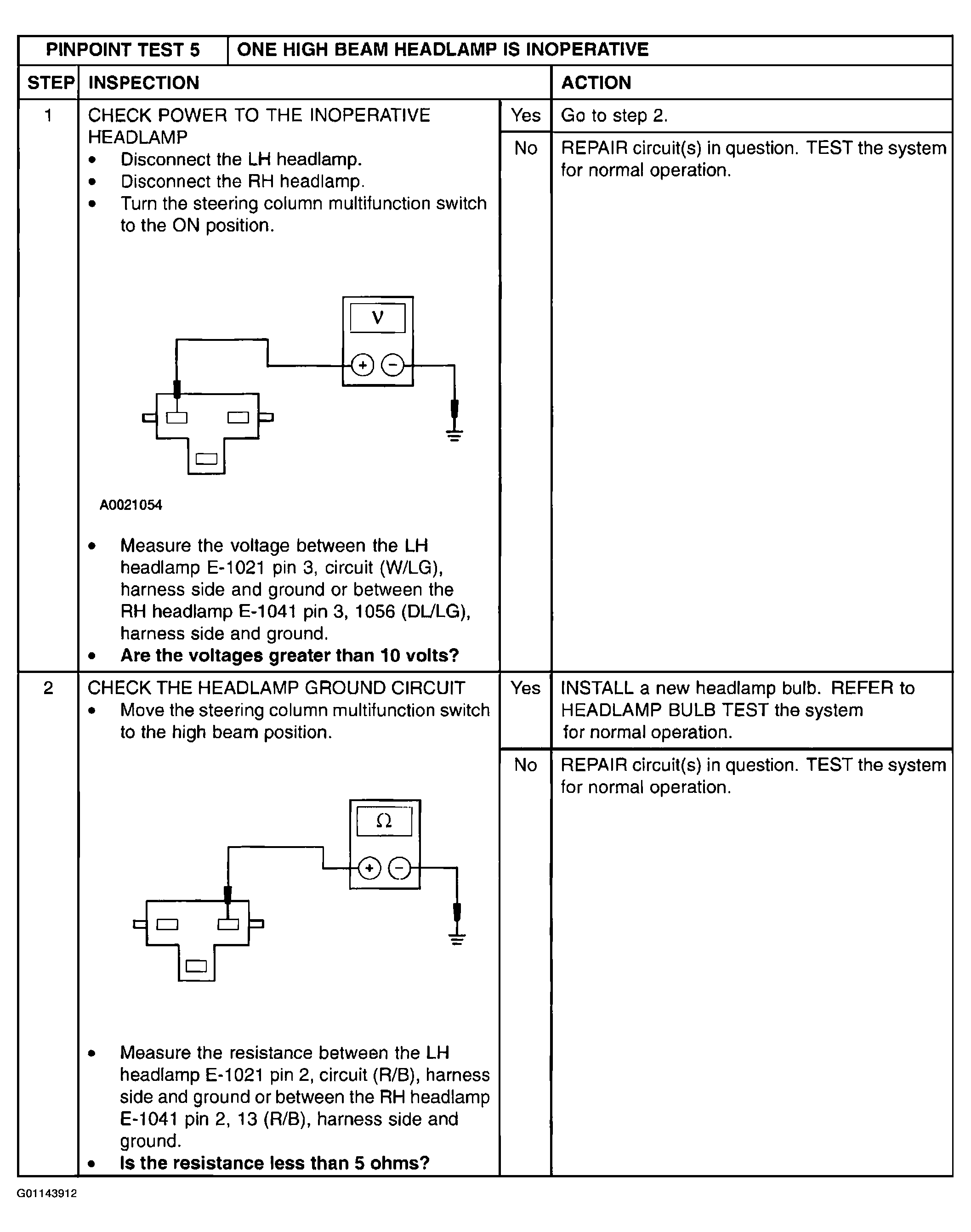

Fig 1: Pinpoint Test 5: One High Beam Headlamp Is Inoperative

G01143912

Courtesy of MAZDA MOTORS CORP.
