Pinpoint Test 2: The Low Beam Headlamps Are Inoperative

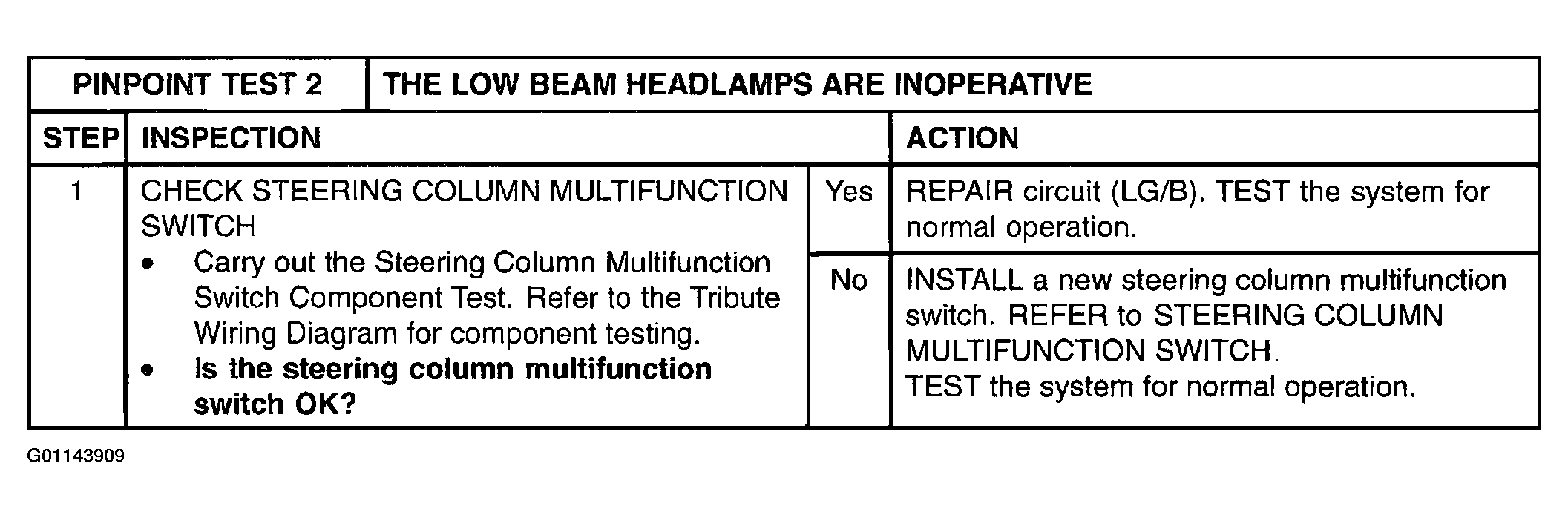

Fig 1: Pinpoint Test 2: The Low Beam Headlamps Are Inoperative

G01143909

Courtesy of MAZDA MOTORS CORP.
