Pinpoint Test 1: Both Headlamps Are Inoperative

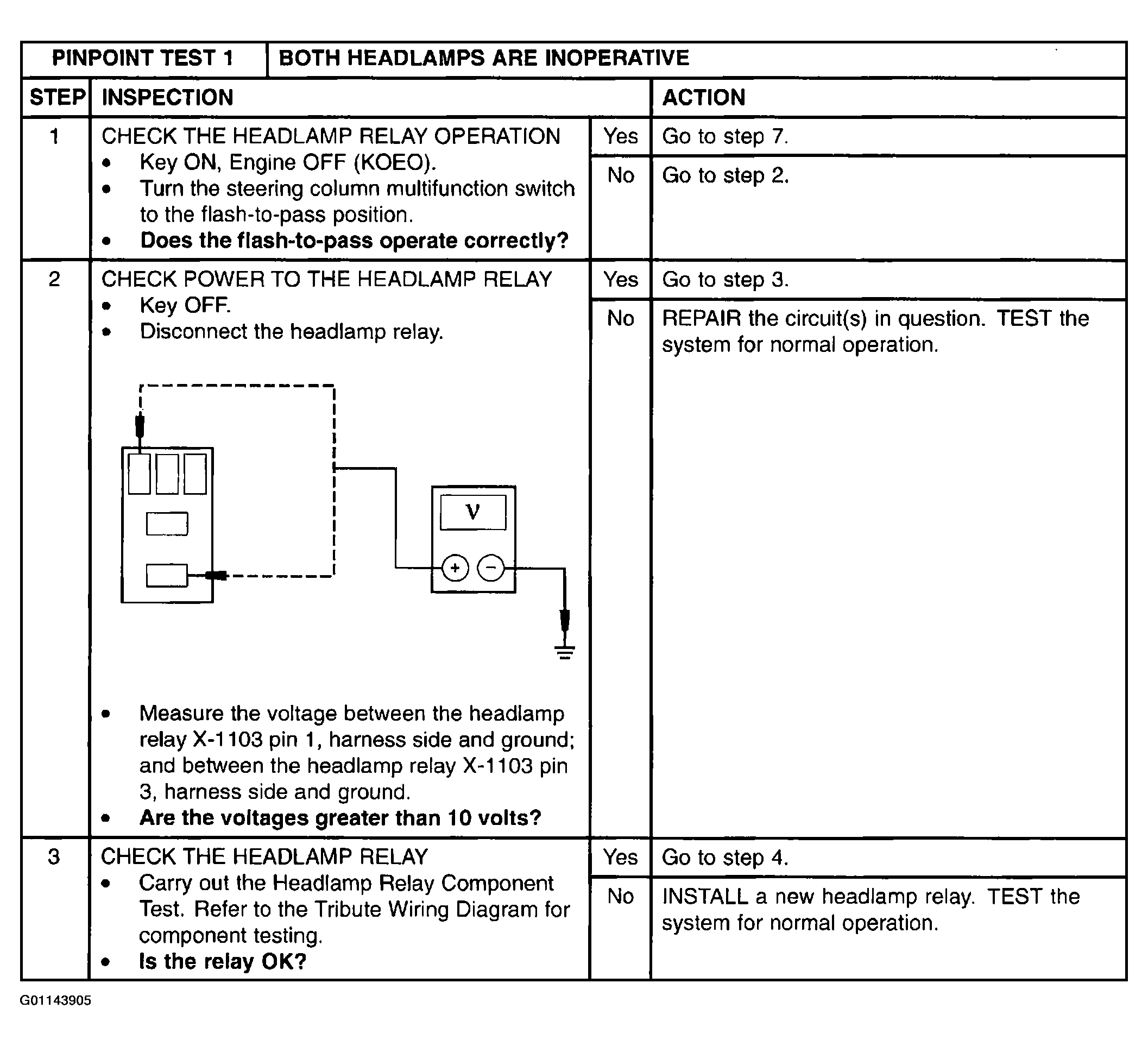

Fig 1: Pinpoint Test 1: Both Headlamps Are Inoperative (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

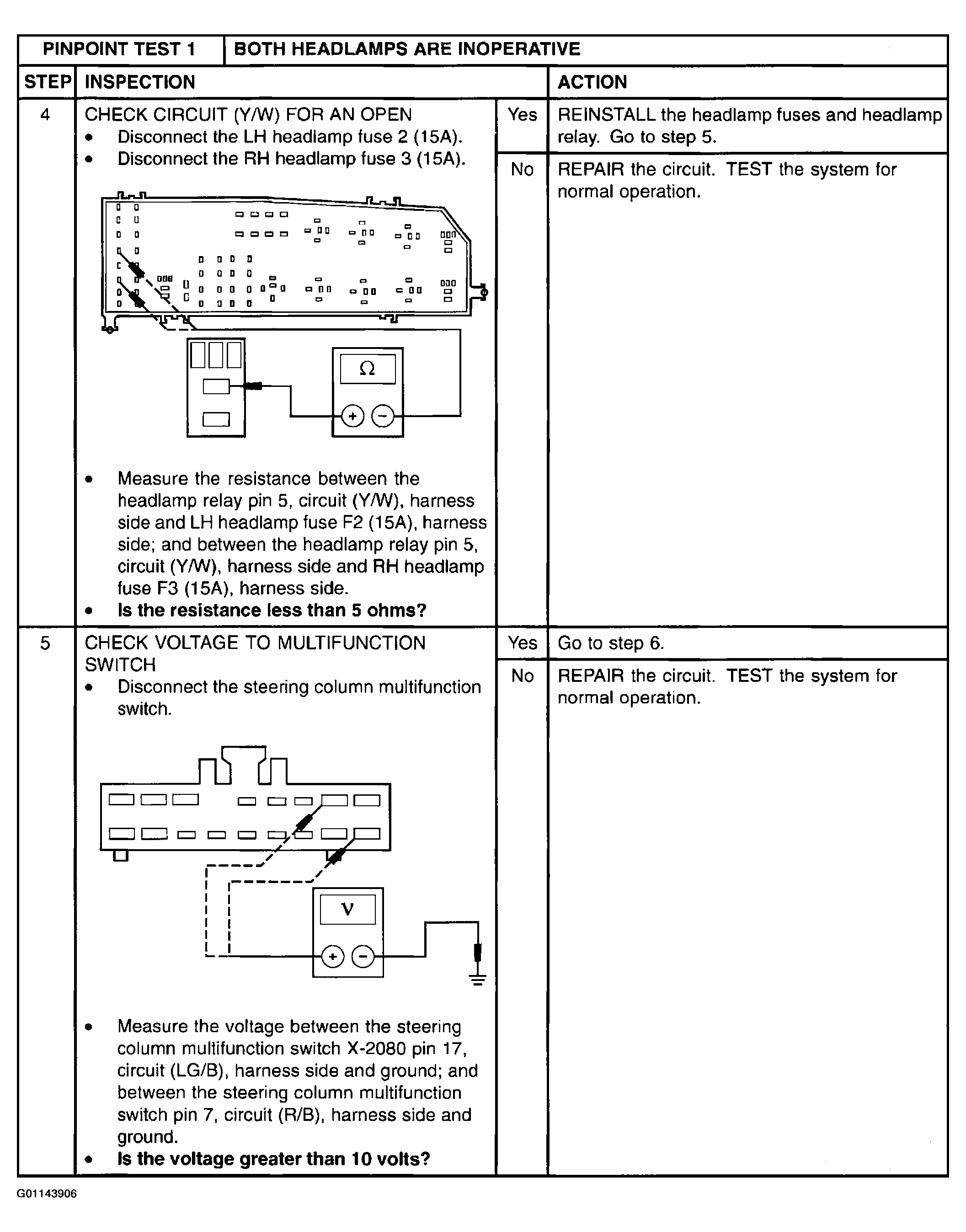

Fig 2: Pinpoint Test 1: Both Headlamps Are Inoperative (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.

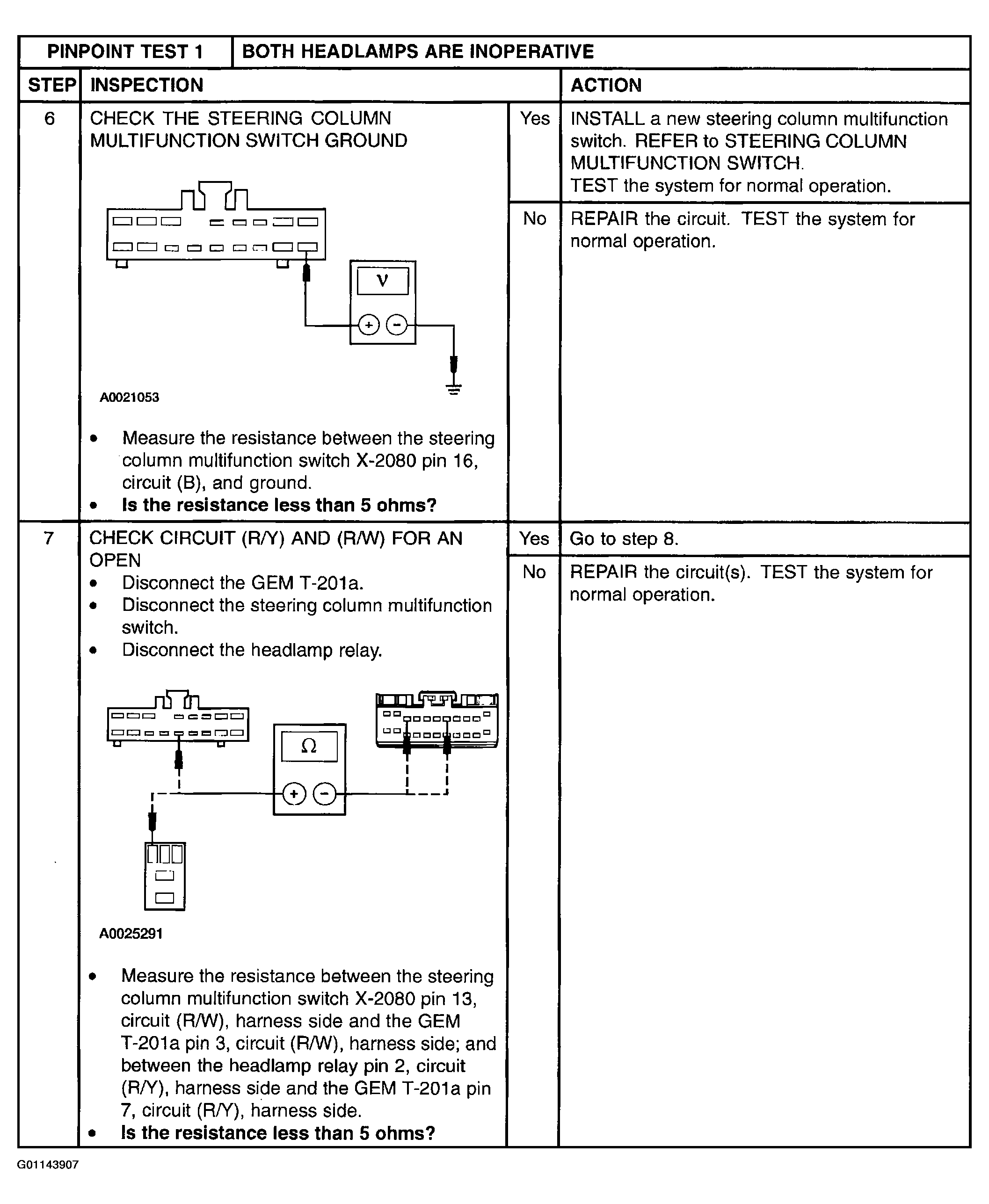

Fig 3: Pinpoint Test 1: Both Headlamps Are Inoperative (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.

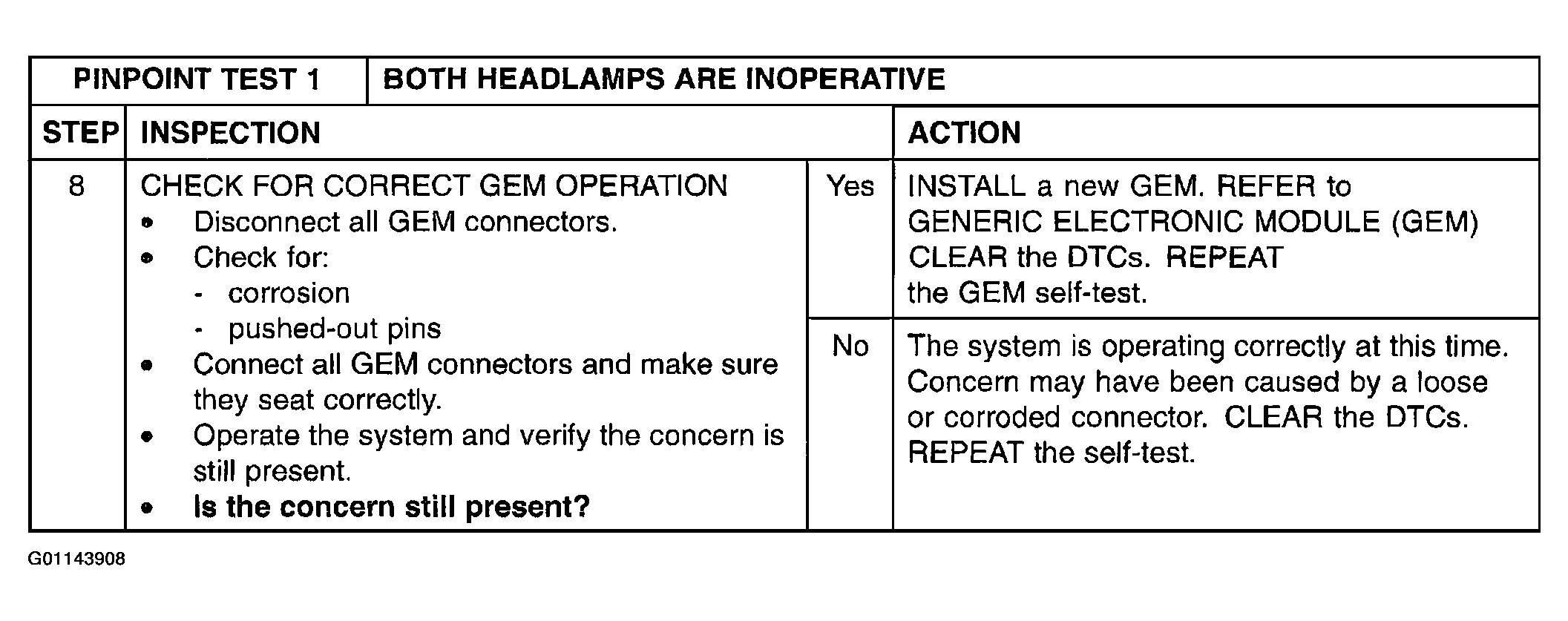

Fig 4: Pinpoint Test 1: Both Headlamps Are Inoperative (Step 8)

Courtesy of MAZDA MOTORS CORP.
