Pinpoint Test 2: One Or More Parking, Rear Or License Lamp Is Inoperative

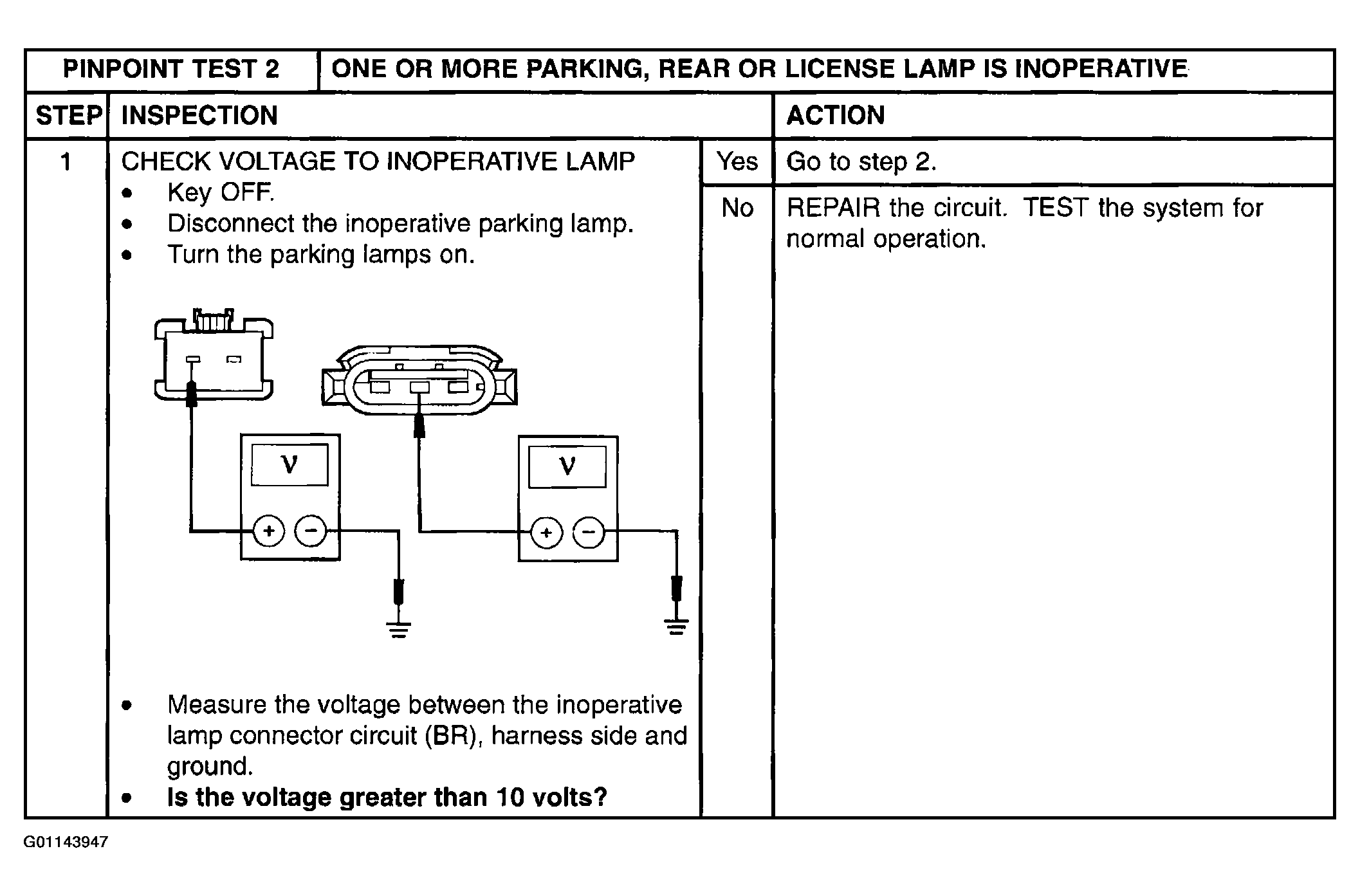

Fig 1: Pinpoint Test 2: One Or More Parking, Rear Or License Lamp Is Inoperative (Step 1)
G01143947Courtesy of MAZDA MOTORS CORP.

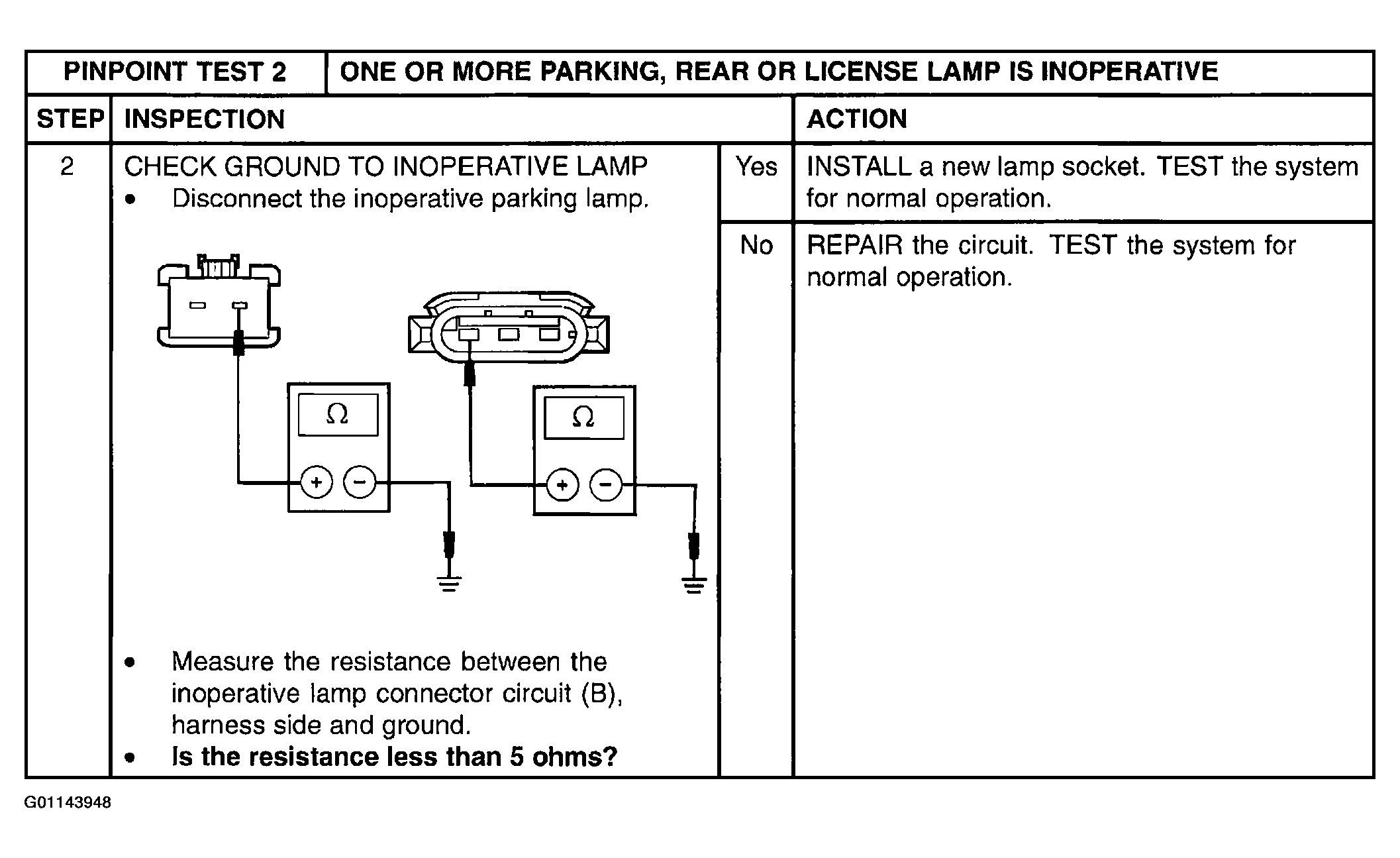

Fig 2: Pinpoint Test 2: One Or More Parking, Rear Or License Lamp Is Inoperative (Step 2)
G01143948Courtesy of MAZDA MOTORS CORP.
