Inspection and Verification

  1. Verify the customer concern by operating the parking, rear and license lamps.
  2. Visually inspect for obvious signs of mechanical and electrical damage.

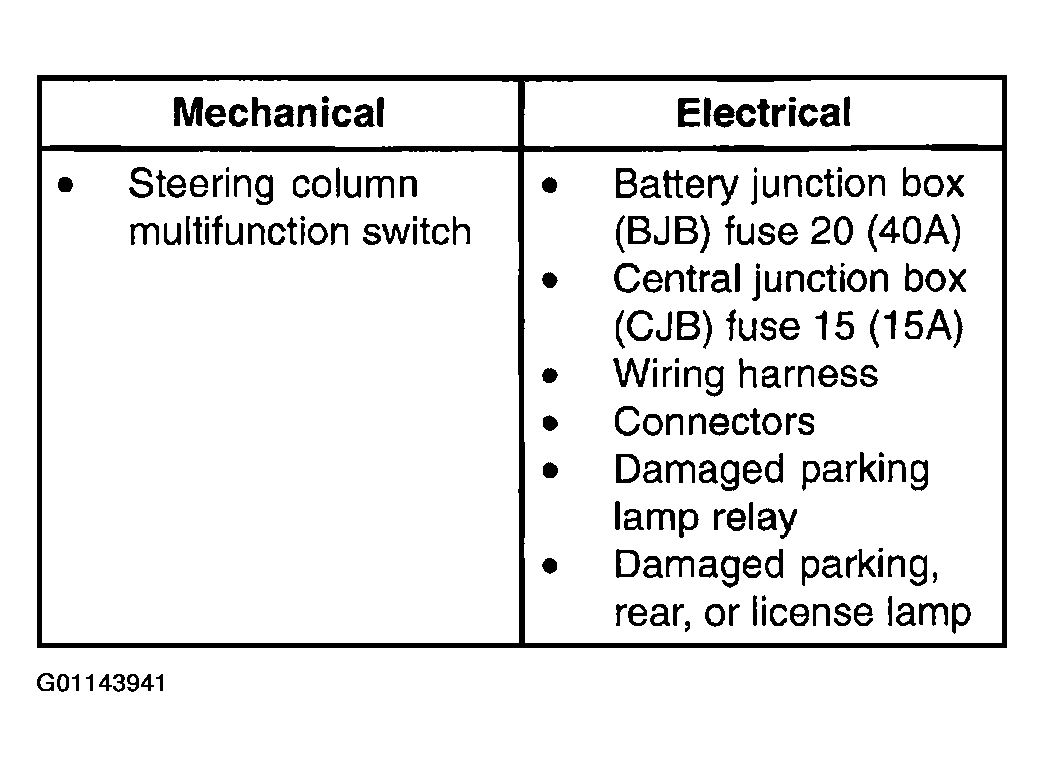

    Fig 1: Visual Inspection Chart
    G01143941Courtesy of MAZDA MOTORS CORP.
  3. If the fault is not visually evident, verify the symptom and proceed to TROUBLESHOOTING INDEX - EXTERIOR, PARKING, REAR, AND LICENSE LAMPS  .
