Removal and Installation

NOTE:

Make sure that the headlamp switch and the ignition switch are in the OFF position.

Remove the front bumper cover. Refer to FRONT BUMPER COVER .

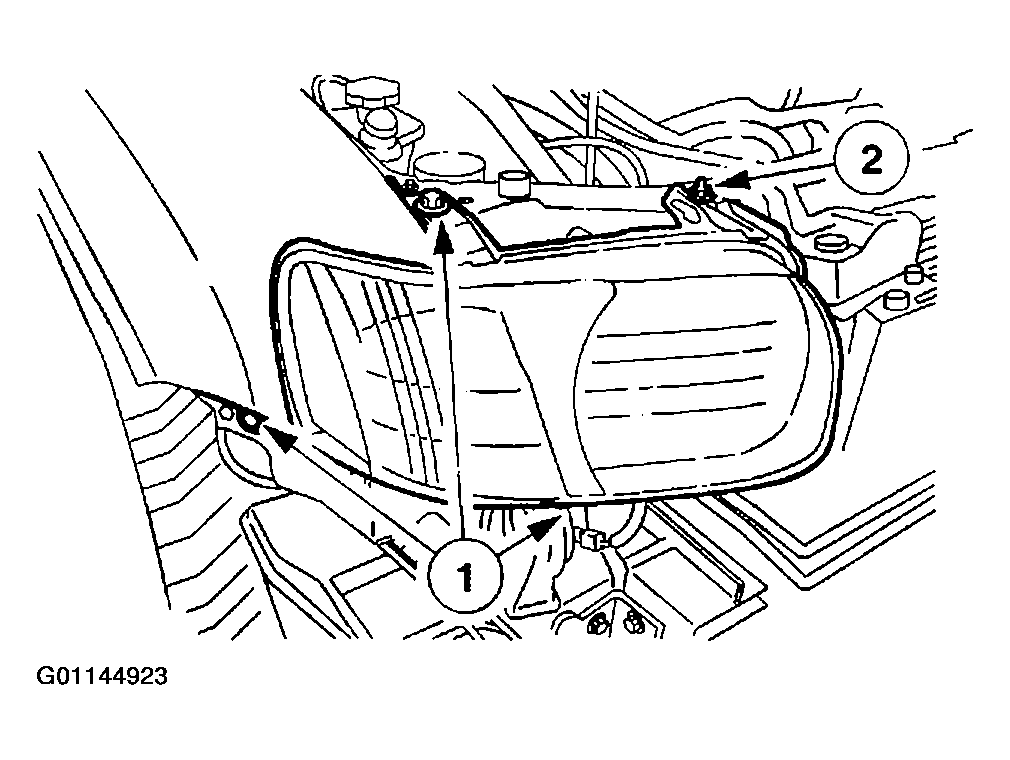

Fig 1: Removing Headlamp Assembly
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Pull headlamp assembly forward to access electrical connectors.
Remove the headlamp assembly.
1. Remove the three bolts.
2. Loosen the nut.
3. Disconnect the electrical connectors.
To install, reverse the removal procedure.
1. If necessary, adjust the headlamps. For additional information, refer to HEADLAMP ADJUSTMENT - PHOTOMETRIC AIMING or HEADLAMP ADJUSTMENT - SCREEN METHOD AIMING .
