Removal and Installation

Disconnect the battery ground cable.
CAUTION:
- Do not use a screwdriver to remove fog lamp switch or damage to the finish panel may occur. Adding tape to the end of a thin tool will reduce marring to the finish panel.

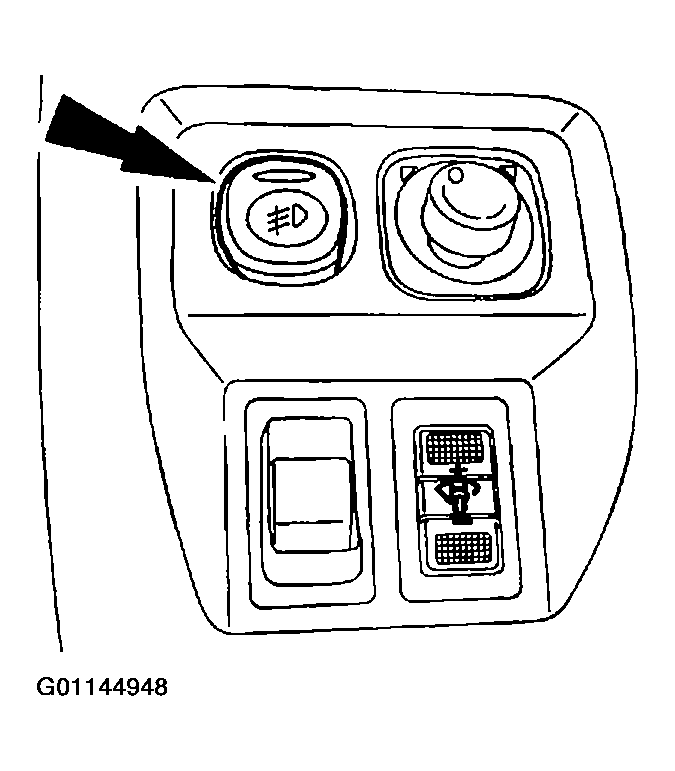

Fig 1: Removing Fog Lamp Switch
Courtesy of MAZDA MOTORS CORP.
Use a thin tool to remove the fog lamp switch.

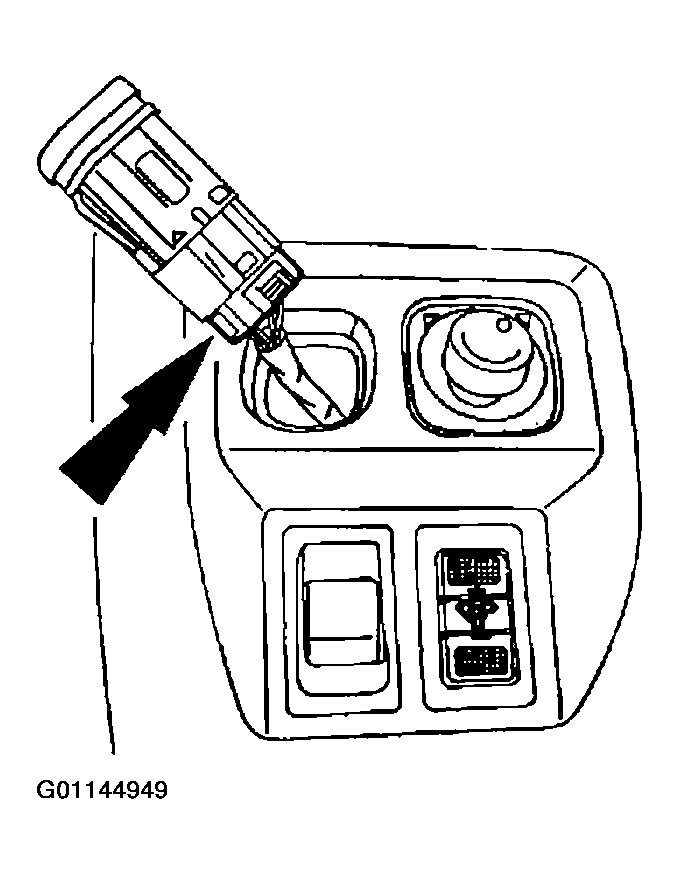

Fig 2: Disconnecting Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connector.
To install, reverse the removal procedure.
