DTC C1194 (24), C1198 (25), C1210 (22), C1214 (23), C1242 (28), C1246 (26), C1250 (29), C1254 (27): Pressure Reduction/Retention Valve

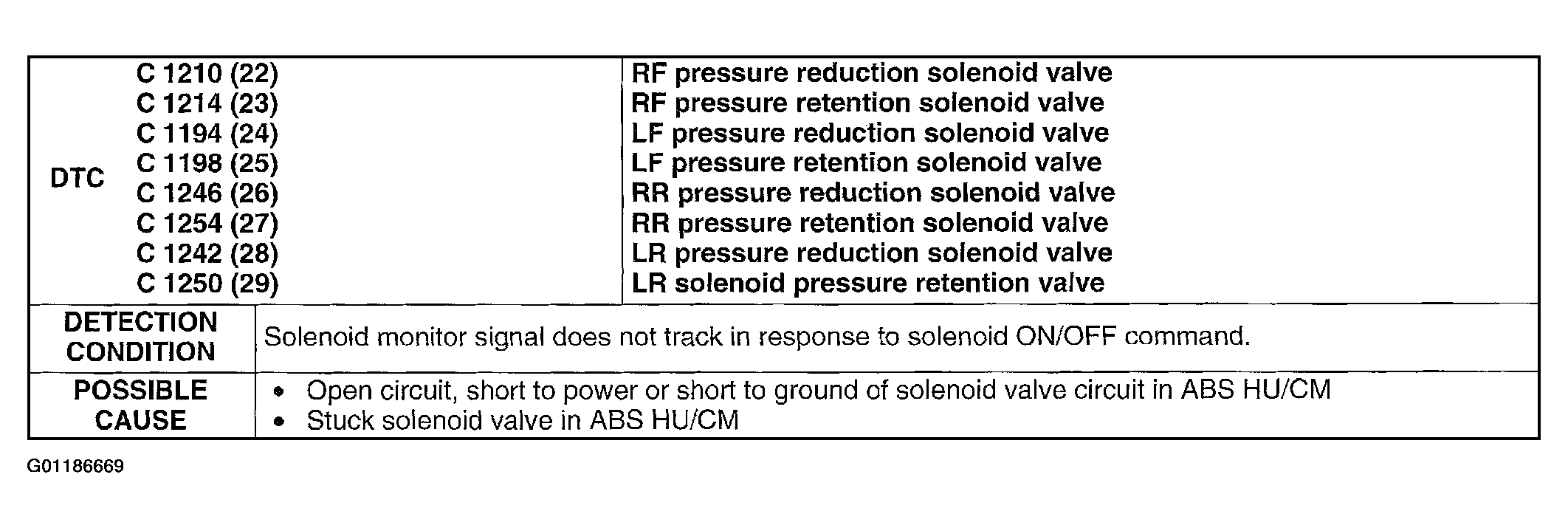

Fig 1: DTC C1194 (24), C1198 (25), C1210 (22), C1214 (23), C1242 (28), C1246 (26), C1250 (29), C1254 (27) Description & Possible Causes
G01186669Courtesy of MAZDA MOTORS CORP.

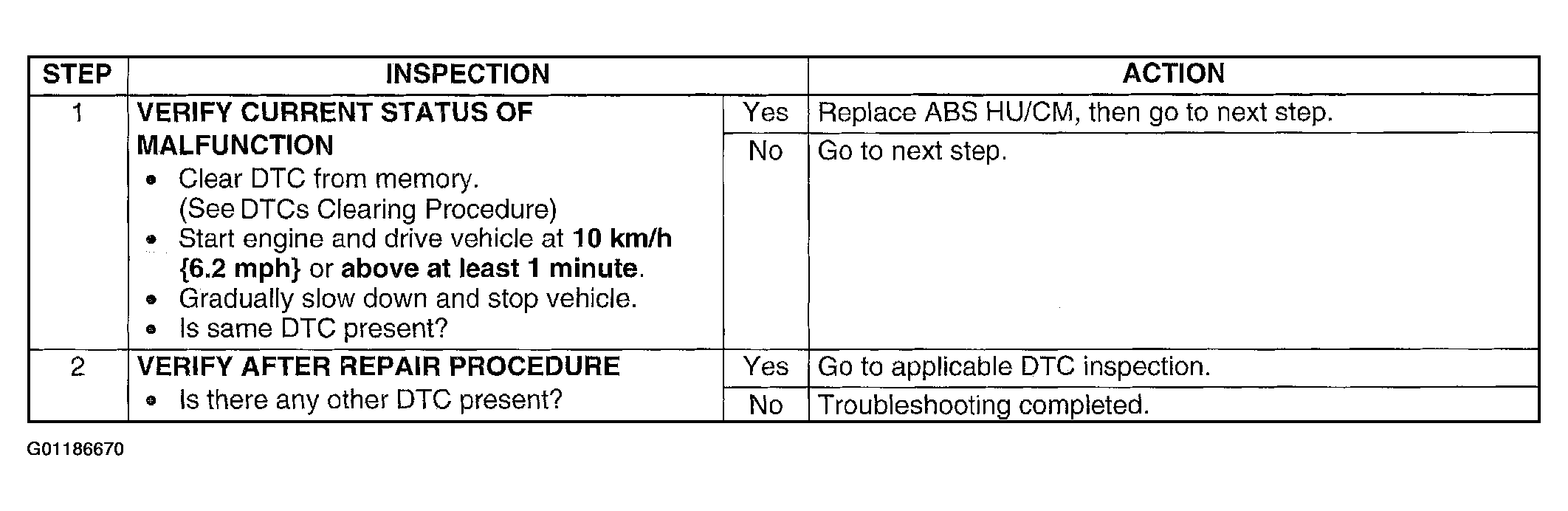

Fig 2: DTC C1194 (24), C1198 (25), C1210 (22), C1214 (23), C1242 (28), C1246 (26), C1250 (29), C1254 (27) Diagnostic Procedure
G01186670Courtesy of MAZDA MOTORS CORP.
