DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48): Abs Wheel Speed Sensor/Sensor Rotor

CAUTION: When attaching the tester lead to the ABS HU/CM or the ABS HU/CM harness connector the SST (49 G066 001) must be used. See ABS HYDRAULIC UNIT (HU)/CONTROL MODULE (CM) INSPECTION .

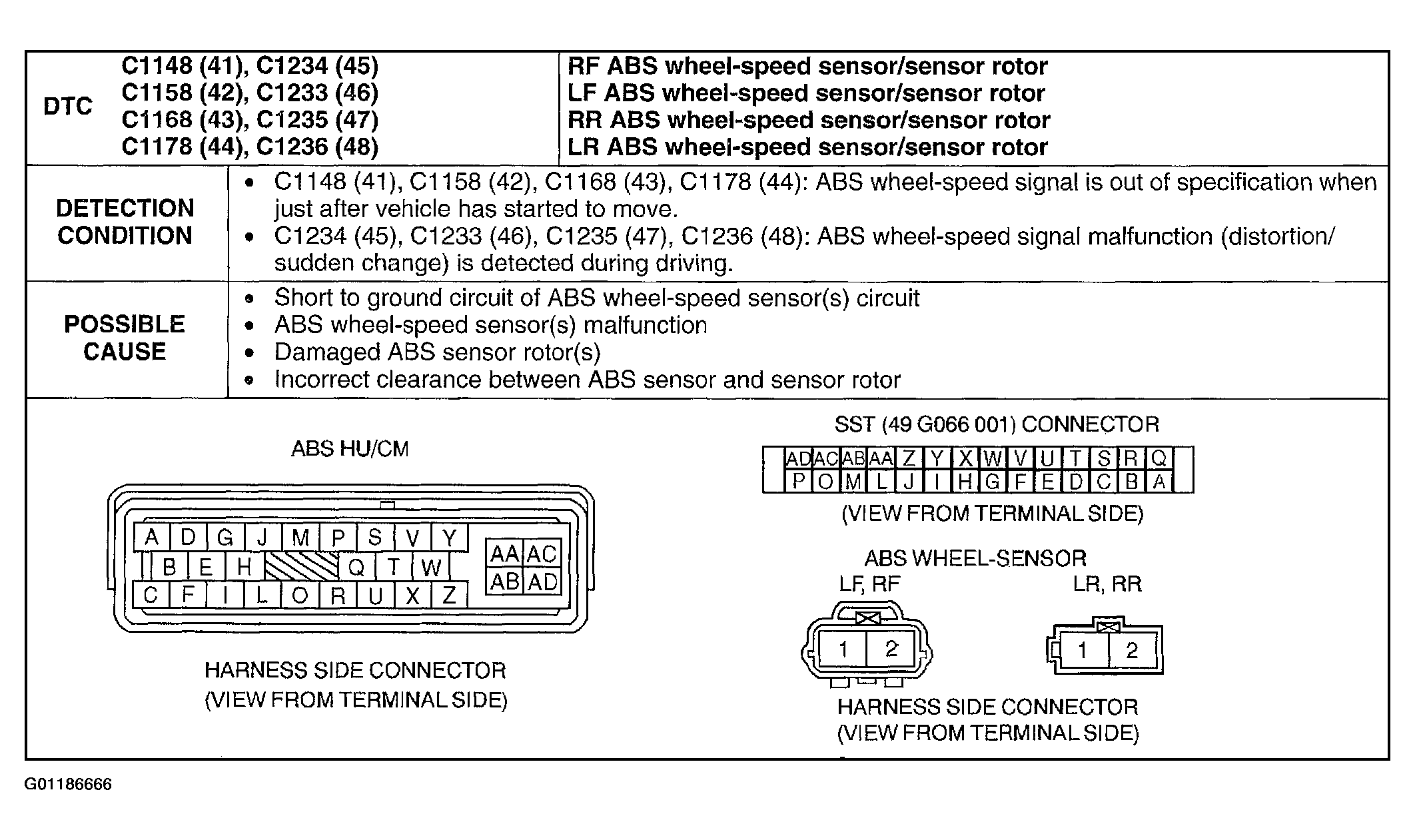

Fig 1: DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48) Description & Possible Causes

Courtesy of MAZDA MOTORS CORP.

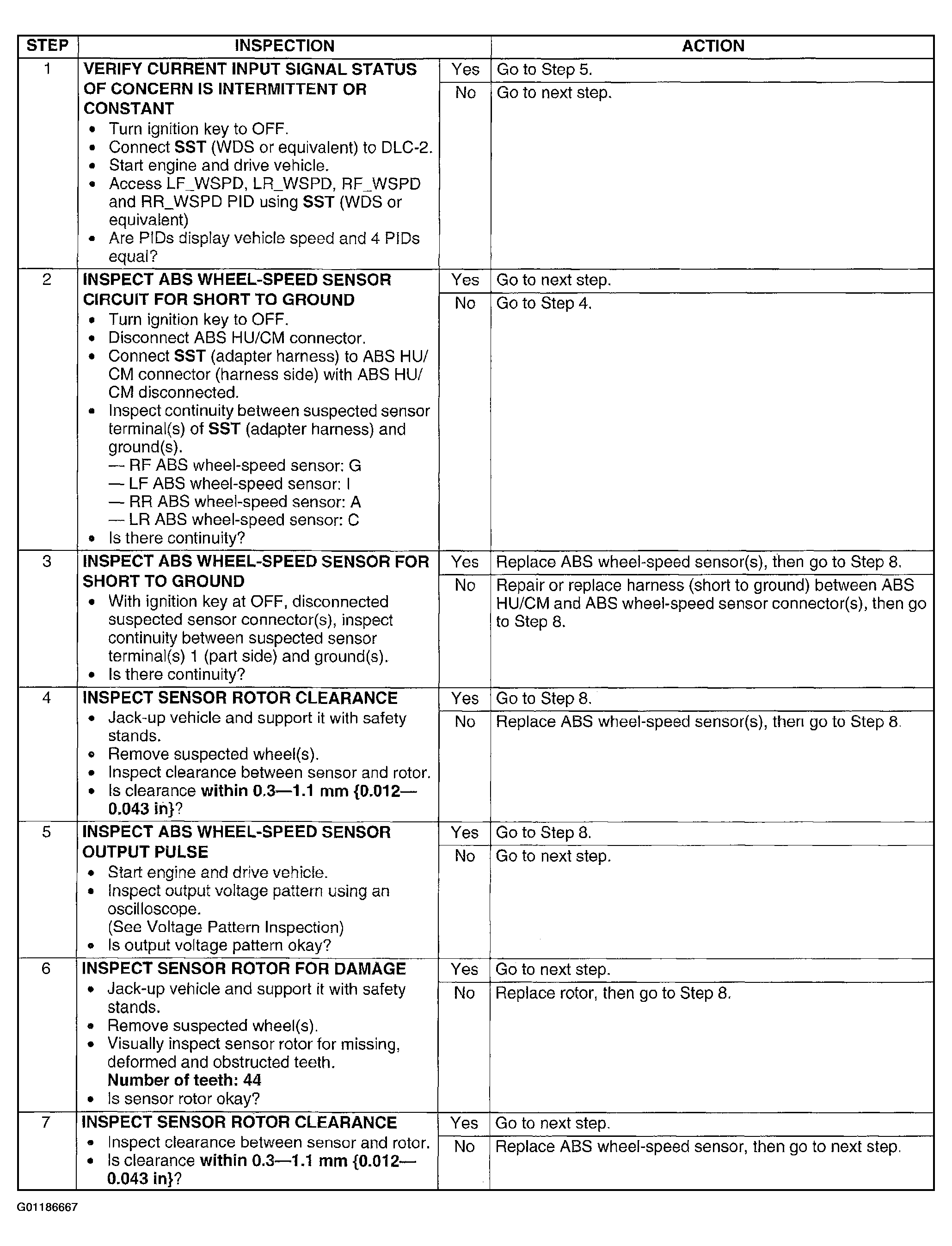

Fig 2: DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48) Diagnostic Procedure (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

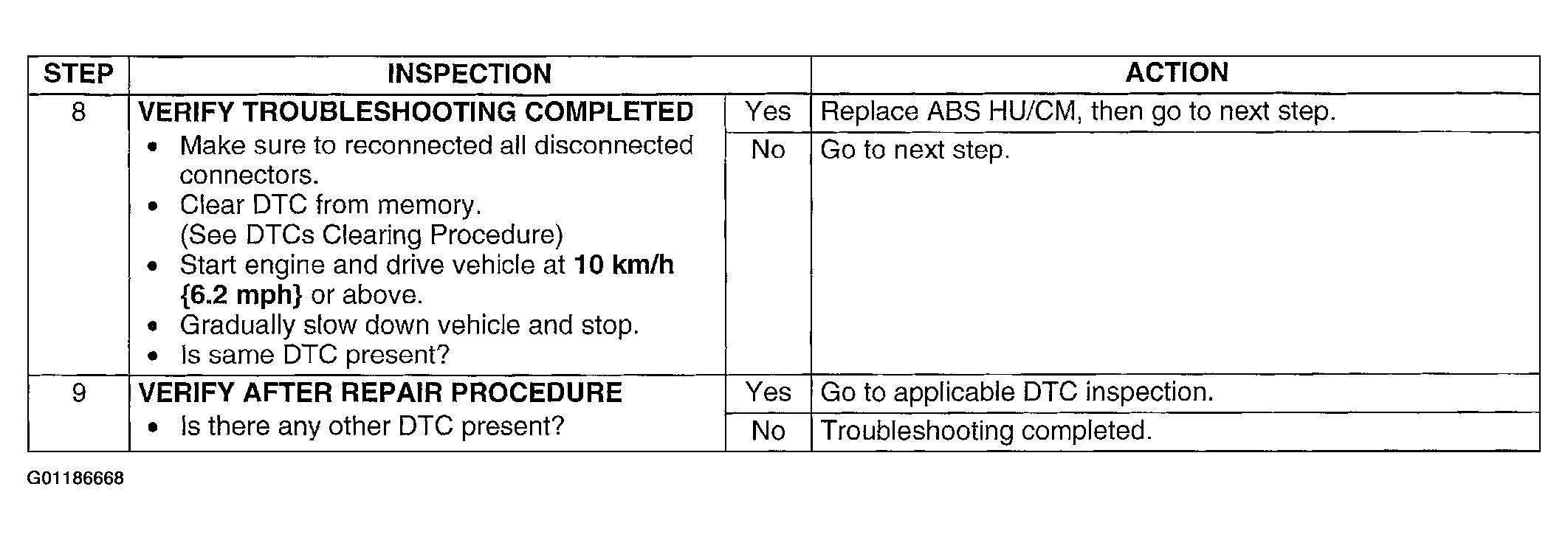

Fig 3: DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48) Diagnostic Procedure (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
