DTC C1510 (32), C1511 (33), C1512 (34), C1513 (35): Solenoid Valve, Abs Motor Or Abs Wheel Speed Sensor/Sensor Rotor

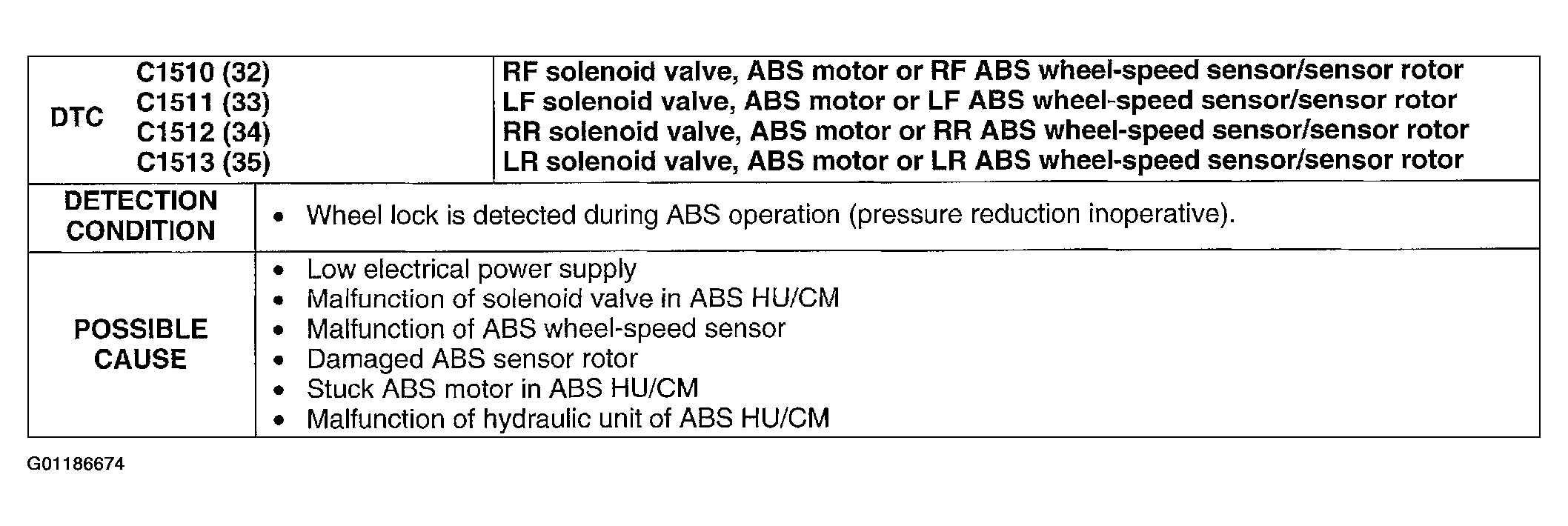

Fig 1: DTC C1510 (32), C1511 (33), C1512 (34), C1513 (35) Description & Possible Causes
G01186674Courtesy of MAZDA MOTORS CORP.

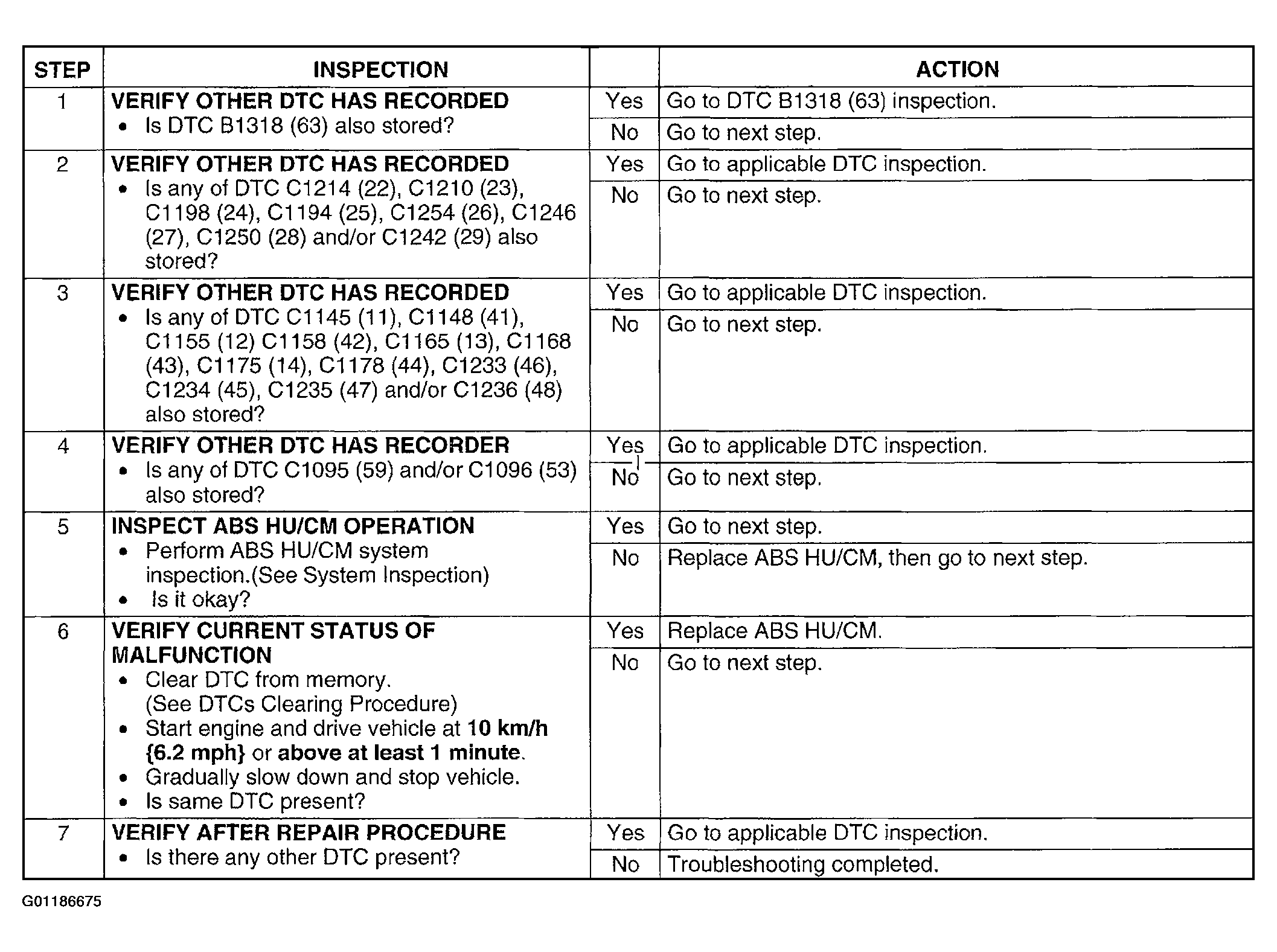

Fig 2: DTC C1510 (32), C1511 (33), C1512 (34), C1513 (35) Diagnostic Procedure
G01186675Courtesy of MAZDA MOTORS CORP.
