Removal and Installation

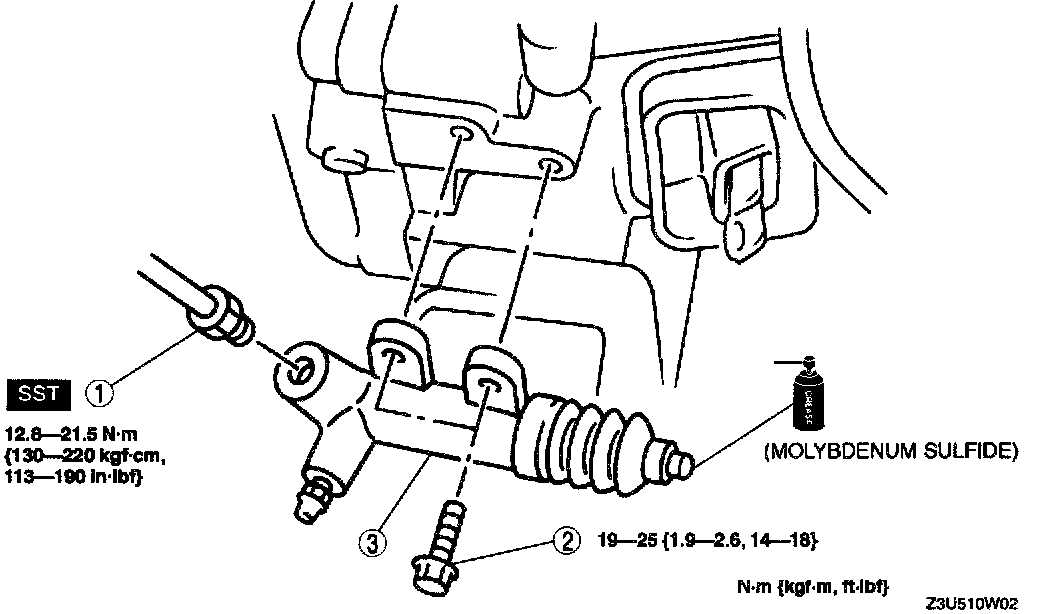

CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION





FS engine





ZM engine

Caution:
- Clutch fluid will damage painted surfaces. If clutch fluid does get on a painted surface, wipe it off immediately.

1. Remove in the order indicated in the table.
2. Plug the clutch pipe after removing it to avoid leakage.
3. Install in the reverse order of removal.
