Disassembly and Assembly

CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY

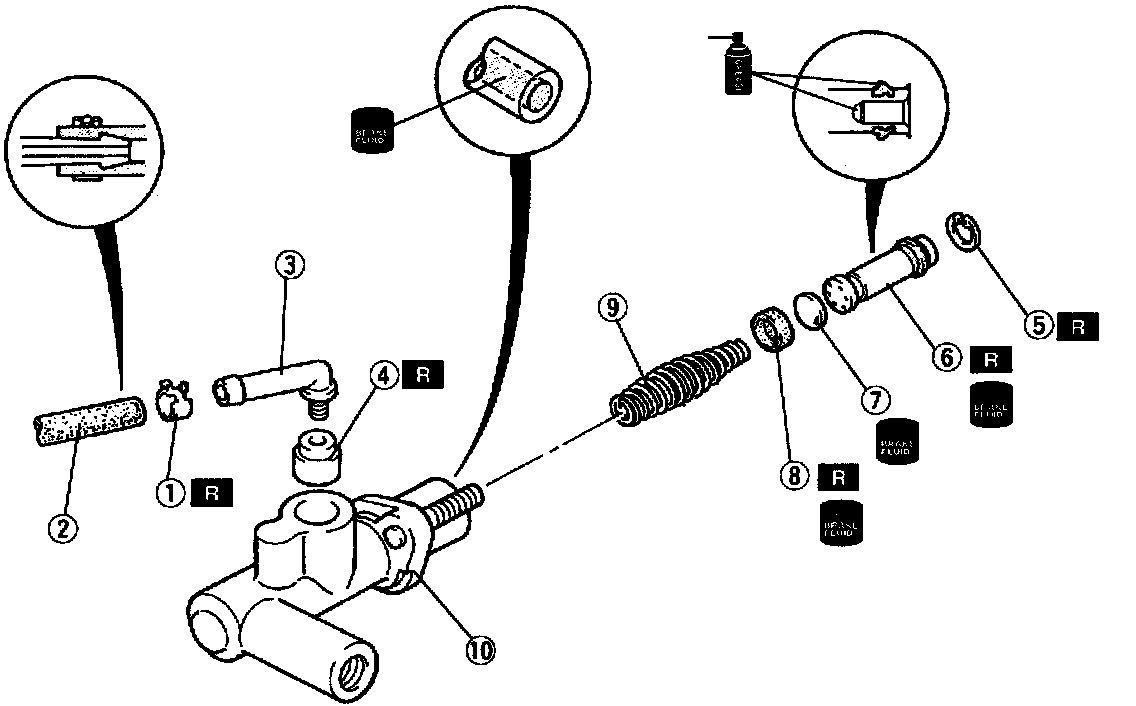

1. Disassemble in the order indicated in the table.

Warning:
^ Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.

2. Assemble in the reverse order of disassembly

Snap Ring Disassembly Note





1. Hold the piston down with a cloth-wrapped pin punch.

Snap Ring Assembly Note





1. Hold the piston down using a cloth-wrapped pin punch.
